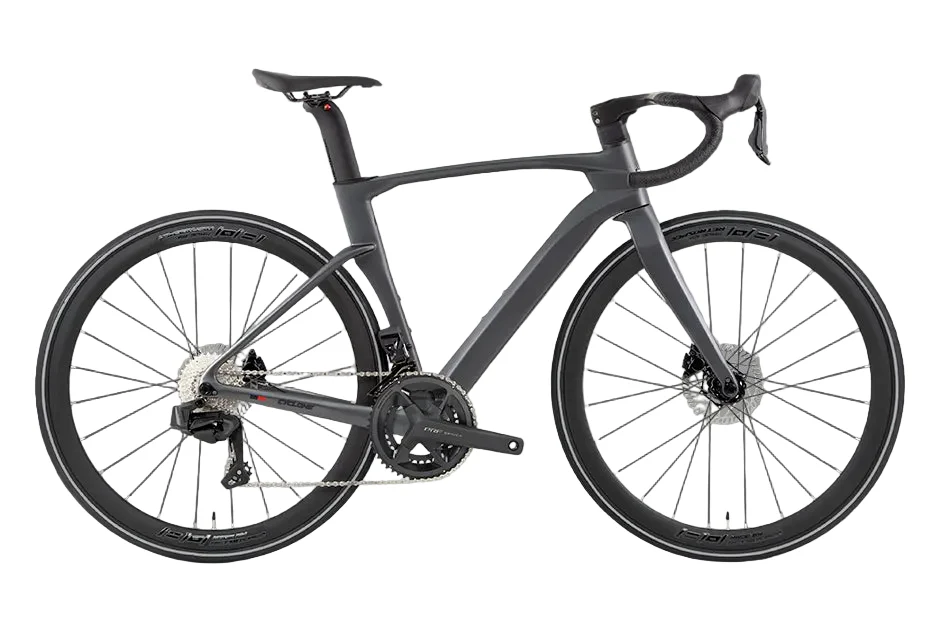

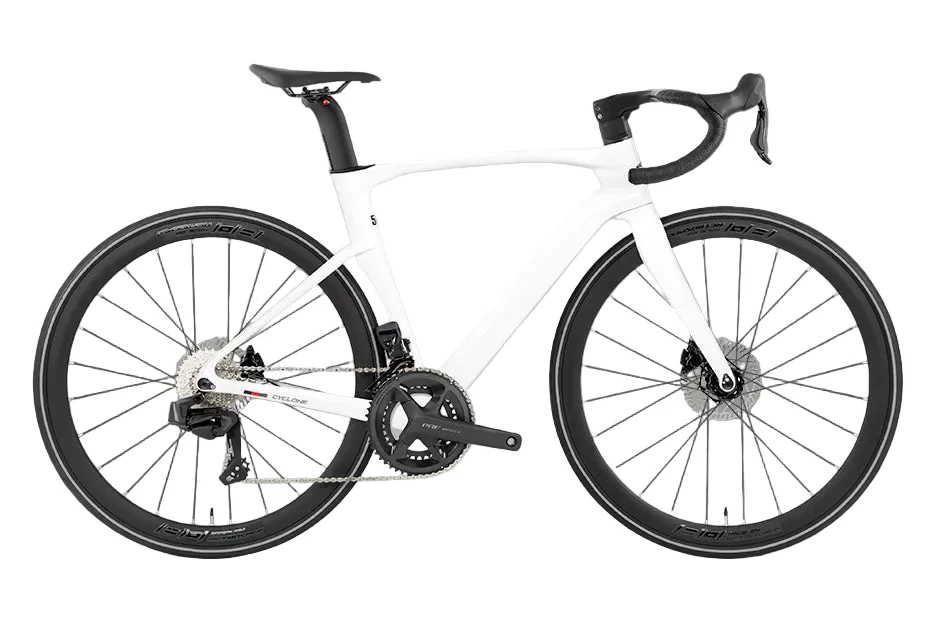

Cyclone - 3rd (ET) - Twitter Carbon Road Bike

Key Components

• Wheel Size: 700C

• Frame Heights: 43.5 / 46 / 48 / 50 / 52 / 54 cm

• Bike Colors: White / Matte Black / Matte Dark Gray / Others / Full Holographic / 3K Gloss Black / 3K Gloss Green

• Net Weight: 9.2 kg (Alloy Rim) / 9.0 kg (Carbon Wave Rim)

---

Frame & Structure

• Frame: CYCLONE-3rd (Disc & Thru-Axle 12×142), high modulus Carbon Fiber, aerodynamic design with internal cable routing

• Fork: CYCLONE-3rd (Disc & Thru-Axle 12×100), high modulus Carbon Fiber, 700C

• Seat Post: High modulus Carbon Fiber, Aero-Racing profile

• Handlebar Set: Integrated Handlebar & Stem (420×90 mm), high modulus Carbon Fiber, full internal cable routing

• Clamps: Hidden screw fit to frame

• Head Set: CNC aluminum alloy with sealed bearings (52×52 mm)

• Bottom Bracket: Threaded T47×24 mm, hollow & sealed bearings

• Washer: Dedicated for internal cable routing

---

Drivetrain

WheelTop TX 24-Speed

• System: WheelTop EDS TX wireless & hydraulic, 2×12-speed, alloy rim

• Shifters: WheelTop EDS TX 2×12-speed (wireless & hydraulic)

• Front Derailleur: WheelTop EDS TX 2-speed (wireless)

• Rear Derailleur: WheelTop EDS TX 12-speed (wireless)

• Crankset: SENICX PRF aluminum alloy hollow 34/50T

• Cassette: SUNSHINE 12-speed, 11–32T

• Chain: SUMC 12-speed

• Brakes: WheelTop flat-mount full hydraulic disc, 160/160 mm rotors

---

Wheelset & Tires

Variant 1 – Alloy Rim

• Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142

• Rims: RS AL7005 aluminum alloy, double wall, W21×H38 mm

• Spokes: SHUNJIU circular 14G

• Tires: RS foldable 700×28C with reflective edges

Variant 2 – Carbon Wave Rim (H50)

• Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142

• Rims: RS high modulus Carbon Fiber wave rim, W28×H50 mm

• Spokes: SHUNJIU flat 14G

• Tires: RS foldable 700×28C with reflective edges

---

Braking System

• Brakes: WheelTop flat-mount hydraulic disc, 160 mm front / 160 mm rear rotors

---

Additional Components

• Saddle: Lightweight and comfortable racing saddle

• Pedals: Lightweight & skid-resistant

• Cables: JAGWIRE performance cables

---

Included Accessories

• Standard safety reflectors (handlebar, seat post, front wheel, rear wheel)

• PC bottle cage + tools

• Manual + warranty card
