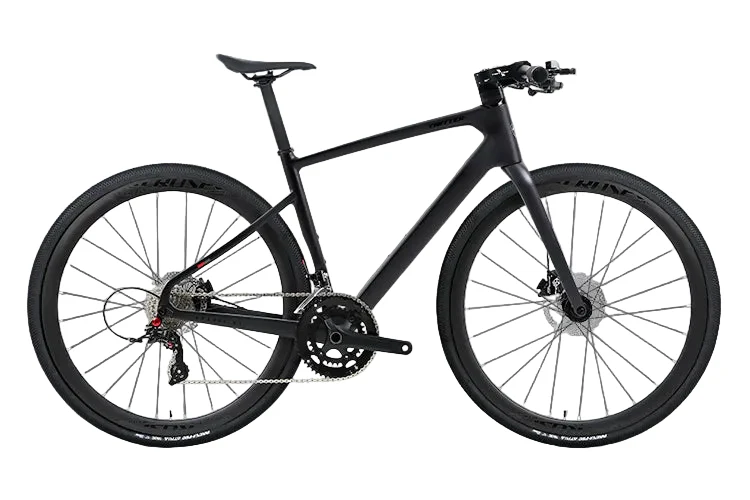

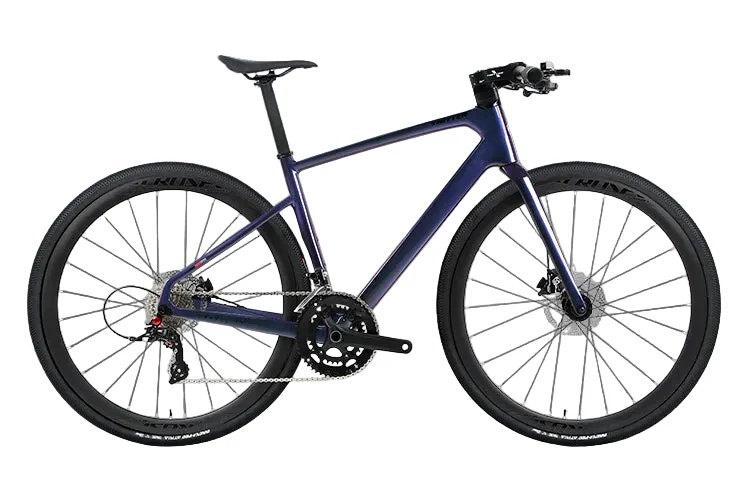

Gravel V1 - PB - Twitter Carbon Gravel Bike

Key Components

• Wheel Size: 700C

• Frame Heights: 45 / 48 / 51 / 54 cm

• Bike Colors: Matte Black / Matte Dark Gray / Gloss White / Full Holographic

• Net Weight: 9.9 kg (both variants)

---

Frame & Structure

• Frame: Gravel V1 (Disc & Thru-Axle 12×142), high modulus Carbon Fiber, XC geometry, full internal cable routing

• Fork: Gravel V1 (Disc & Thru-Axle 12×100), high modulus Carbon Fiber, 700C

• Seat Post: High modulus Carbon Fiber, 31.6×350 mm

• Handlebar Set: Matte Aluminum Alloy Handlebar (31.8×720 mm) with 80 mm stem

• Clamps: Aluminum alloy quick-release, 34.9 mm

• Head Set: CNC aluminum alloy with sealed bearings (52×52 mm)

• Bottom Bracket: Press-fit BB92×41×24 mm, hollow bearings

• Washer: Dedicated for internal cable routing

---

Drivetrain Options

Variant 1 – LTWOO A12 2×12-Speed Hydraulic Disc (Alloy Wheel)

• System: LTWOO A12, 2×12-speed

• Shifters: LTWOO A12 2×12-speed

• Front Derailleur: LTWOO A12 2-speed

• Rear Derailleur: LTWOO A12 12-speed

• Crankset: Prowheel ARP aluminum alloy hollow 34/50T

• Cassette: SUNSHINE 12-speed, 11–42T

• Chain: SUMC 12-speed

• Brakes: RS-R610 flat-mount hydraulic disc, 160/160 mm rotors

Variant 2 – SHIMANO DEORE M6100 1×12-Speed Hydraulic Disc (Alloy Wheel)

• System: SHIMANO DEORE M6100, 1×12-speed

• Shifters: SHIMANO DEORE M6100 12-speed

• Front Derailleur: None

• Rear Derailleur: SHIMANO DEORE M6100 12-speed

• Crankset: SENICX FM3 aluminum alloy hollow 36T

• Cassette: SUNSHINE 12-speed, 11–50T

• Chain: SUMC 12-speed

• Brakes: RS-R610 flat-mount hydraulic disc, 160/160 mm rotors

---

Wheelset & Tires

• Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142

• Rims: RS AL7005 aluminum alloy, double wall, matte finish, W19×H30 mm, 700C

• Spokes: SHUNJIU circular 14G

• Tires: INNOVA 700×38C, black

---

Braking System

• Brakes: RS-R610 flat-mount hydraulic disc, 160 mm front / 160 mm rear rotors

---

Additional Components

• Saddle: Lightweight and comfortable racing saddle

• Pedals: Lightweight & skid-resistant

• Cables: JAGWIRE performance cables

---

Included Accessories

• Standard safety reflectors (handlebar, seat post, front wheel, rear wheel)

• PC bottle cage + tools

• Manual + warranty card
