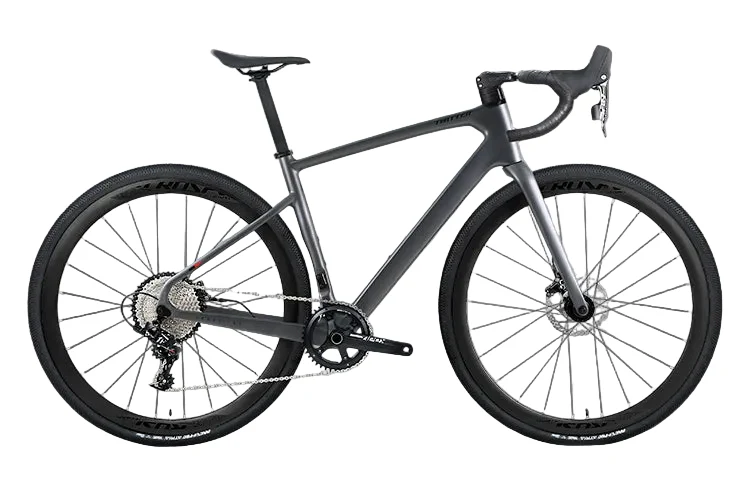

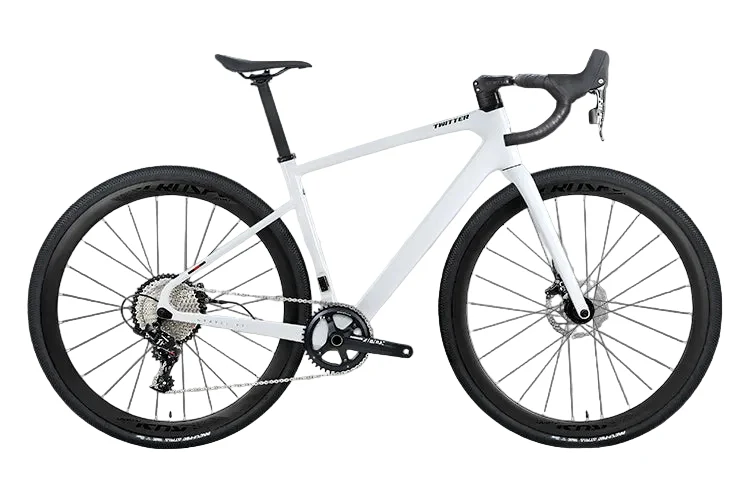

Gravel V1 - SP - Twitter Carbon Gravel Bike

Key Components

• Wheel Size: 700C

• Frame Heights: 45 / 48 / 51 / 54 cm

• Bike Colors: Gloss White / Matte Black / Matte Dark Gray / Full Holographic

• Net Weight: 10.1 kg (both variants)

---

Frame & Structure

• Frame: Gravel V1 (Disc & Thru-Axle 12×142), high modulus Carbon Fiber, XC geometry, full internal cable routing

• Fork: Gravel V1 (Disc & Thru-Axle 12×100), high modulus Carbon Fiber, 700C

• Seat Post: High modulus Carbon Fiber, 31.6×350 mm

• Handlebar Set: Lightweight Aluminum Alloy Integrated Handlebar & Stem (400×90 mm), full internal cable routing

• Clamps: Aluminum alloy single-screw lock, 34.9 mm

• Head Set: CNC aluminum alloy with sealed bearings (52×52 mm)

• Bottom Bracket: Press-fit BB92×41×24 mm, hollow bearings

• Washer: Dedicated for internal cable routing

---

Drivetrain Options

Variant 1 – SRAM RIVAL 2×11-Speed (Alloy Wheel)

• System: SRAM RIVAL 2×11-speed

• Shifters: SRAM RIVAL 2×11-speed

• Front Derailleur: SRAM RIVAL

• Rear Derailleur: SRAM RIVAL 11-speed

• Crankset: RS aluminum alloy hollow 34/50T

• Cassette: SUNSHINE 11-speed, 11–30T

• Chain: SUMC 11-speed

• Brakes: RS cable-pull hydraulic disc, 160/160 mm rotors

Variant 2 – SRAM APEX 1×11-Speed Hydraulic Disc (Alloy Wheel)

• System: SRAM APEX 1×11-speed hydraulic

• Shifters: SRAM APEX 11-speed hydraulic disc handle

• Front Derailleur: None

• Rear Derailleur: SRAM APEX long cage 11-speed

• Crankset: SRAM APEX 42T

• Cassette: SUNSHINE 11-speed, 11–42T

• Chain: SUMC 11-speed

• Brakes: SRAM APEX full hydraulic disc, 160/160 mm rotors

---

Wheelset & Tires

• Hubs: RS aluminum alloy, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142

• Rims: RS AL7005 aluminum alloy, double wall, matte finish, W19×H30 mm, 700C

• Spokes: SHUNJIU circular 14G

• Tires: INNOVA 700×38C, black

---

Braking System

• Brakes: Cable-pull hydraulic (RIVAL) / Full hydraulic (APEX), 160 mm rotors front & rear

---

Additional Components

• Saddle: Lightweight & comfortable racing saddle

• Pedals: Lightweight & skid-resistant

• Cables: JAGWIRE premium cables

---

Included Accessories

• Standard safety reflectors (handlebar, seat post, front wheel, rear wheel)

• PC bottle cage + tools

• Manual + warranty card
