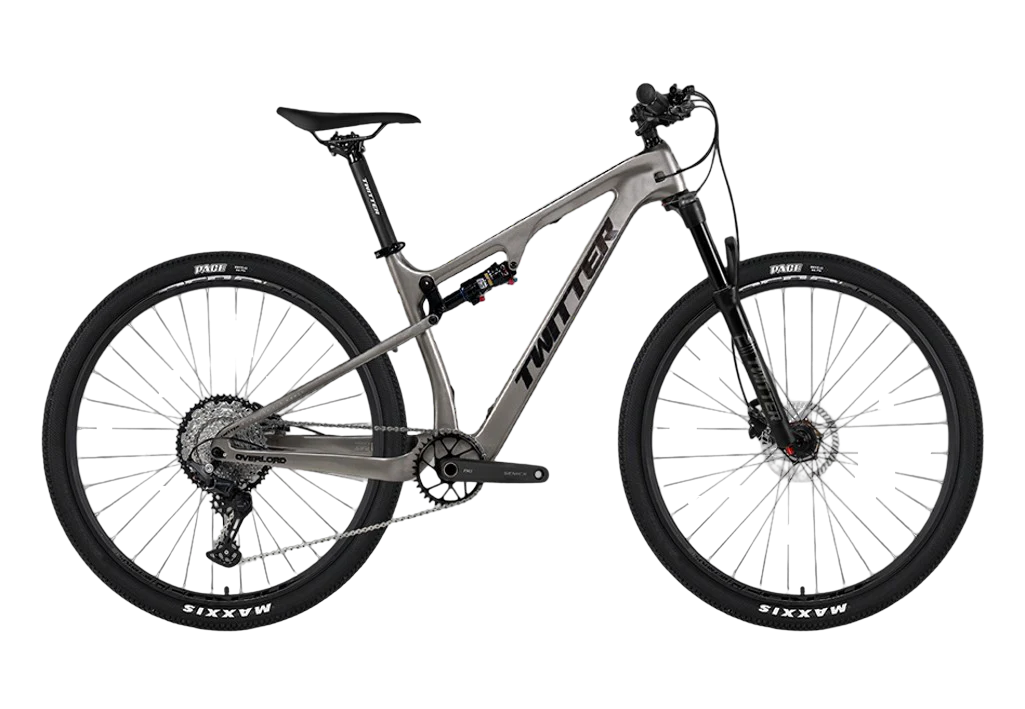

Overlord - Twitter Carbon Mountain Bike

Key Components

• Frame Size: 29" (27.5") × 15" / 17" / 19" / 21"

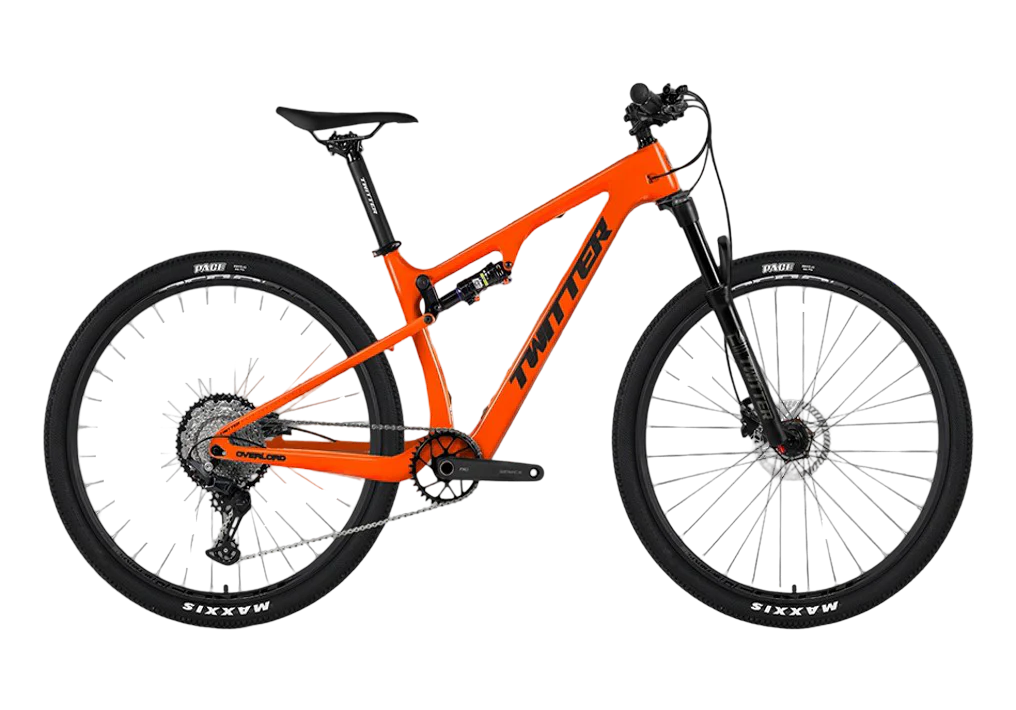

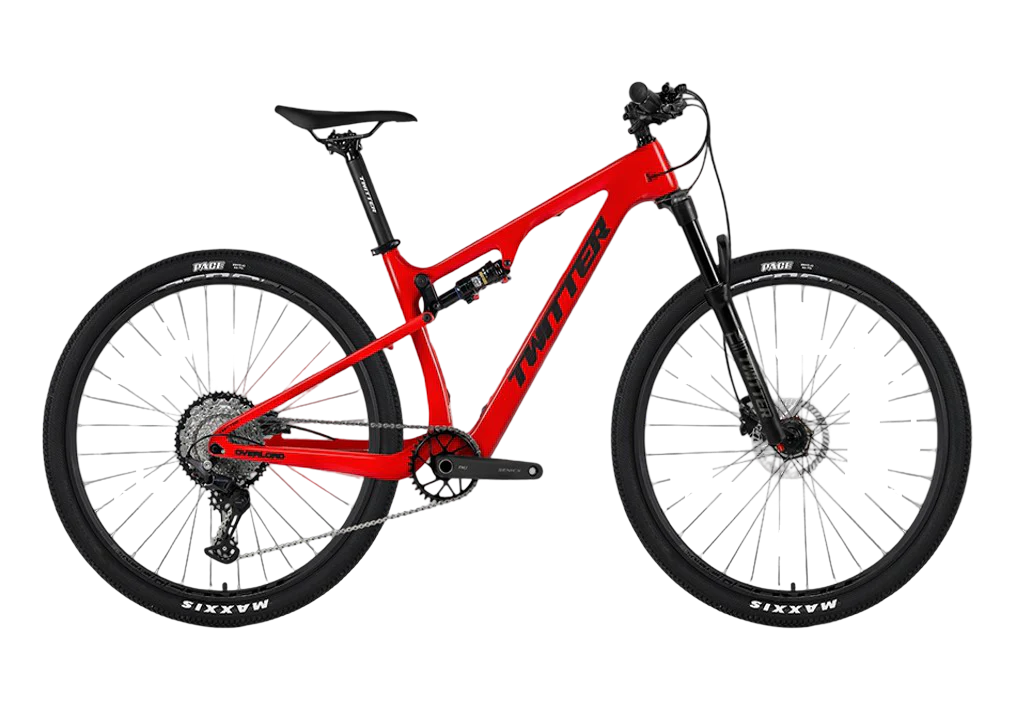

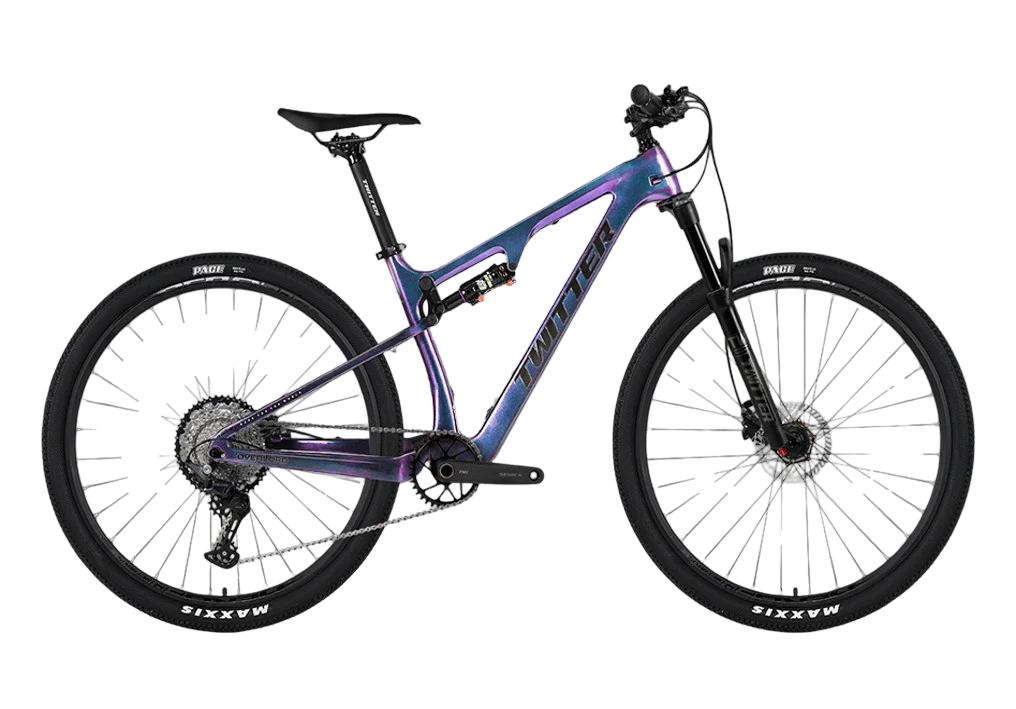

• Bike Colors: Dark Gray / Silver / Titanium / Red / Orange / Others, Full Holographic

• Net Weight:

  • 13.5 kg (M6100-12S)

  • 13.7 kg (WheelTop OX-13S)

  • 13.3 kg (SRAM SX-12S High)

  • 13.5 kg (SRAM AXS APEX-12S High)

---

Frame & Structure

• Frame: OVERLORD, All-Mountain (AM) geometry, High modulus Carbon Fiber, internal cable routing, Thru-Axle 12×148 mm Boost, 110 mm rear travel

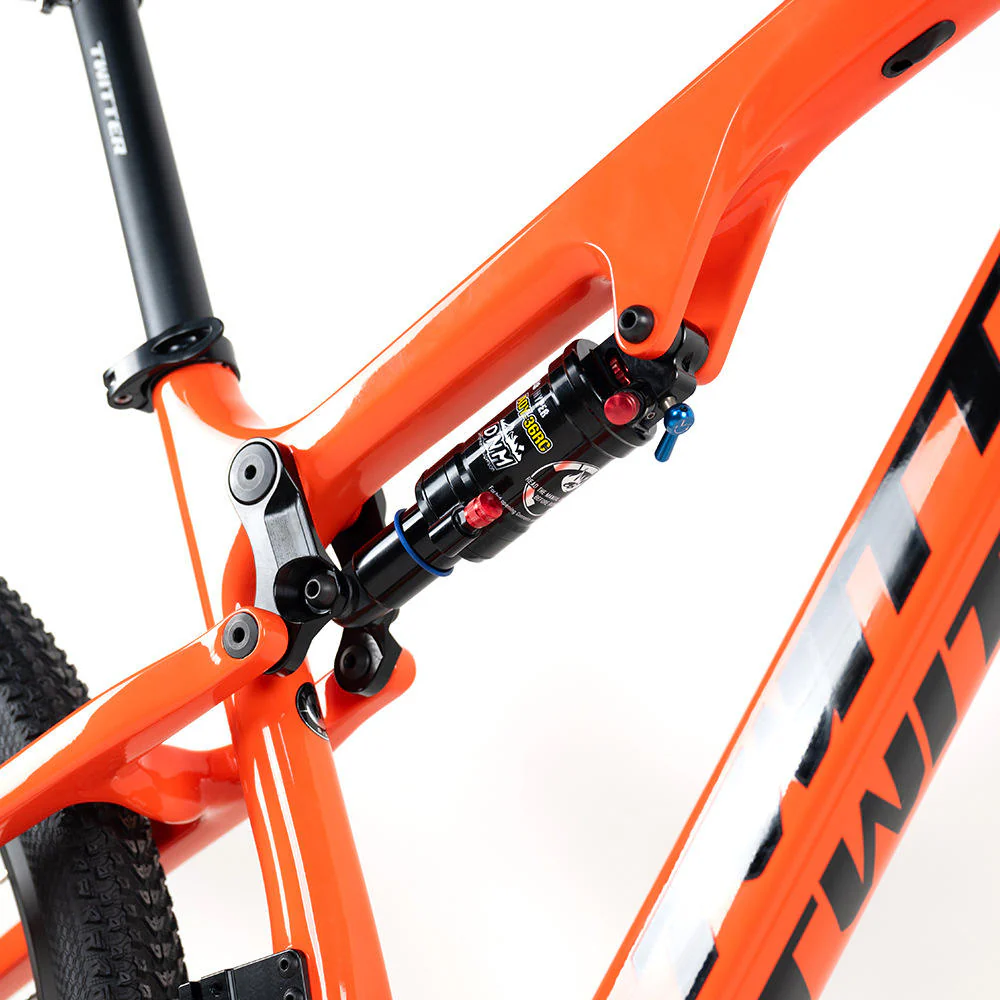

• Rear Shock: DNM Air, 165×35 mm

• Fork Options:

  • Standard: TW Magnesium–Aluminum alloy air suspension, 120 mm travel, remote lockout, Thru-Axle 15×110 mm Boost

  • High Edition: ROCKSHOX Judy Silver, 120 mm air suspension, remote lockout, Thru-Axle 15×110 mm Boost

• Handlebar Set:

  • RS aluminum alloy matte black, handlebar 31.8×720 mm, stem 45 mm, clamp 34.9 mm

• Seat Post Options:

  • Standard: RS aluminum alloy, 31.6×350 mm

  • High Edition: RS height-adjustable dropper post with remote, 31.6×125 mm travel

• Head Set: CNC aluminum alloy with sealed bearings (42×52 mm)

• Washer: Carbon Fiber 3K, 3×28.6×10 mm

---

Drivetrain Options

Variant 1 – SHIMANO DEORE M6100 1×12-Speed

• System: SHIMANO DEORE M6100

• Shifter: SHIMANO DEORE M6100

• Front Derailleur: None

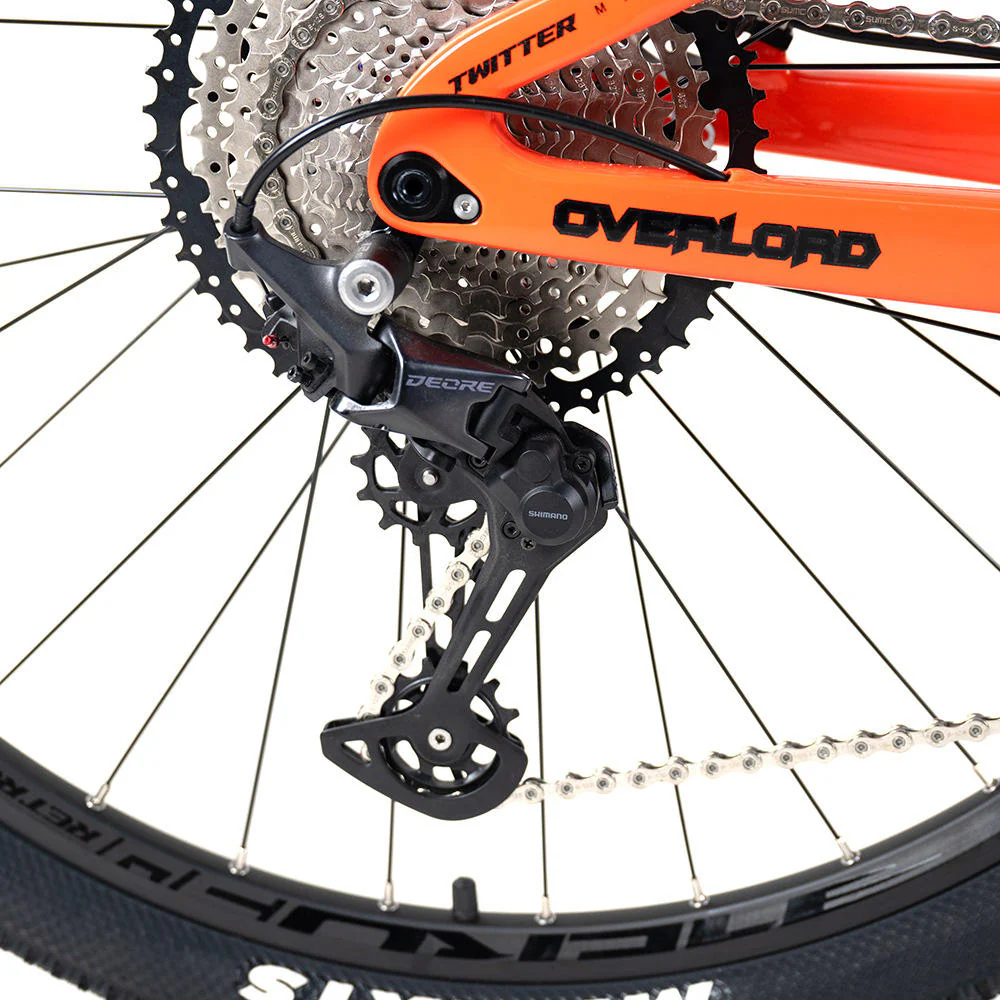

• Rear Derailleur: SHIMANO DEORE M6100 12-speed

• Crankset: SENICX-FM3 aluminum alloy, hollow 36T

• Cassette: SUNSHINE 12-speed, 11–50T

• Chain: SUMC 12-speed

• Bottom Bracket: Threaded, T47×24 mm

Variant 2 – WheelTop EDS OX 1×13-Speed (Wireless)

• System: WheelTop EDS OX Wireless 1×13-speed

• Shifter: WheelTop EDS OX wireless

• Front Derailleur: None

• Rear Derailleur: WheelTop EDS OX wireless 13-speed

• Crankset: SENICX-FM3 aluminum alloy, hollow 36T

• Cassette: SUNSHINE 13-speed, 11–50T

• Chain: SUMC 13-speed

• Bottom Bracket: Threaded, T47×24 mm

Variant 3 – SRAM SX Eagle 1×12-Speed (High)

• System: SRAM SX Eagle 1×12-speed

• Shifter: SRAM SX Eagle 12-speed

• Front Derailleur: None

• Rear Derailleur: SRAM SX Eagle 12-speed

• Crankset: SRAM SX Eagle DUB, 34T

• Cassette: SRAM PG1210 Eagle 12-speed, 11–50T

• Chain: SRAM SX Eagle 12-speed

• Bottom Bracket: Threaded, T47×29 mm

Variant 4 – SRAM AXS APEX 1×12-Speed (Wireless, High)

• System: SRAM AXS APEX wireless 12-speed

• Shifter: SRAM AXS POD wireless

• Front Derailleur: None

• Rear Derailleur: SRAM X1 Eagle AXS wireless

• Crankset: SRAM APEX DUB, 38T

• Cassette: SRAM PG1210 Eagle 12-speed, 11–50T

• Chain: SRAM SX Eagle 12-speed

• Bottom Bracket: Threaded, T47×29 mm

---

Wheelset & Tires

• Hubs: RS aluminum alloy & carbon fiber, 4-sealed bearings, HG, 32 holes, disc compatible, Thru-Axle F15×110 / R12×148 mm Boost

• Rims: RS aluminum alloy, double wall with rivets, W25×H21 mm

• Spokes: SHUNJIU circular 14G

• Tires: MAXXIS 29" / 27.5" × 2.25", black

---

Braking System

• Brakes:

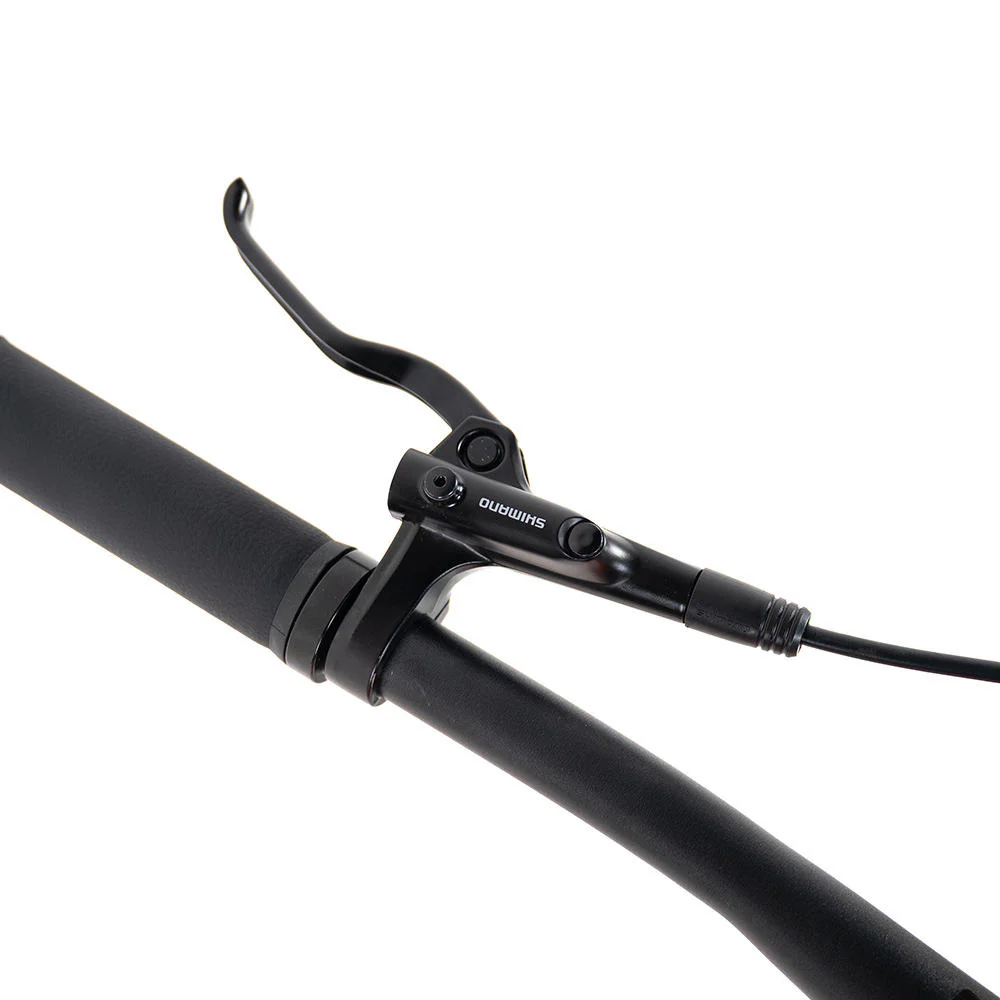

  • SHIMANO MT200 hydraulic disc brakes (160/160 mm) – M6100, OX, SX versions

  • SRAM LEVEL hydraulic disc brakes (160/160 mm) – AXS High edition

---

Additional Components

• Grips: PU leather locking grips, 22.2×120 mm

• Saddle: Lightweight, comfortable MTB saddle

• Pedals: RS aluminum alloy MTB pedals with sealed bearings

• Cables: JAGWIRE internal and external routing

---

Included Accessories

• Standard safety reflectors (handlebar, seat post, front wheel, rear wheel)

• PC bottle cage + tools

• Manual + warranty card
