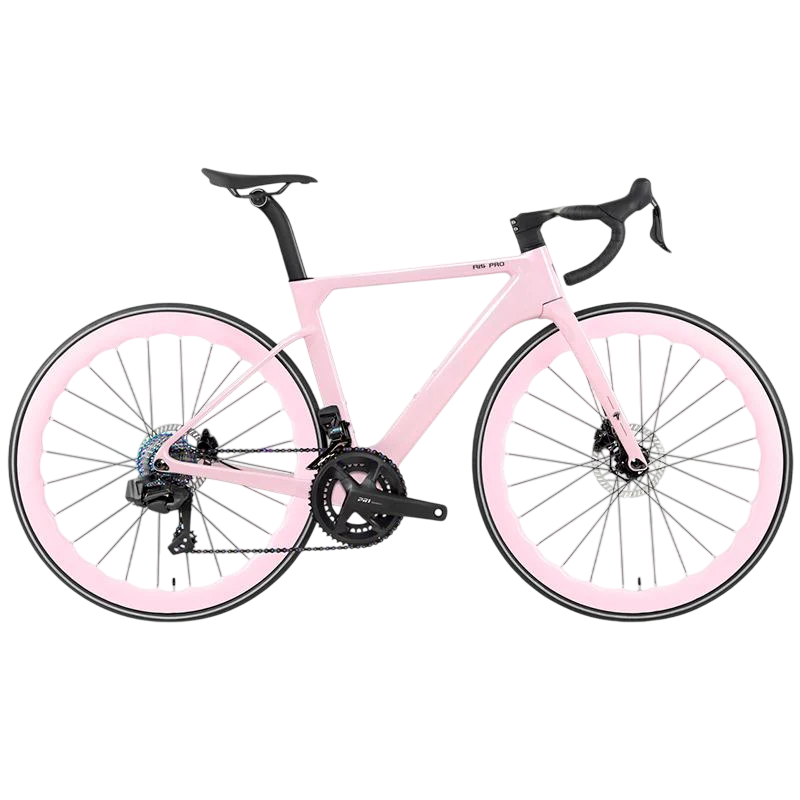

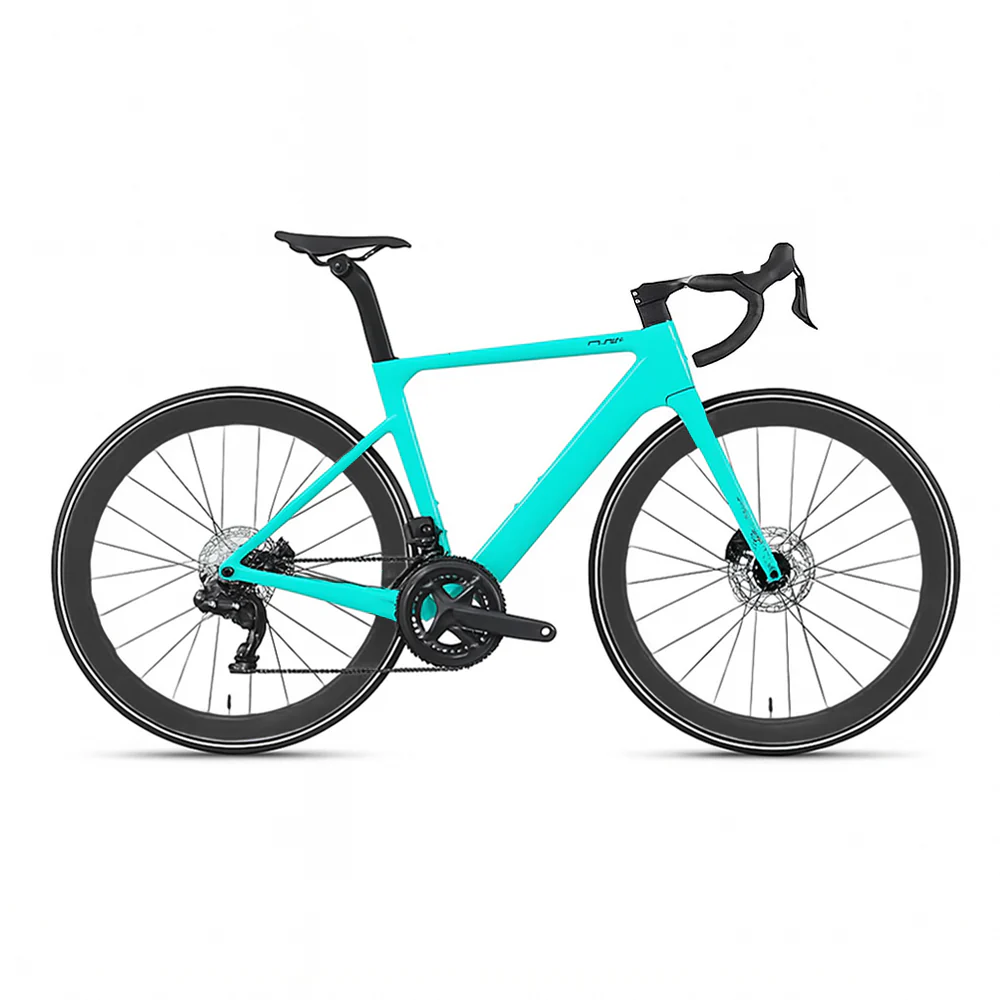

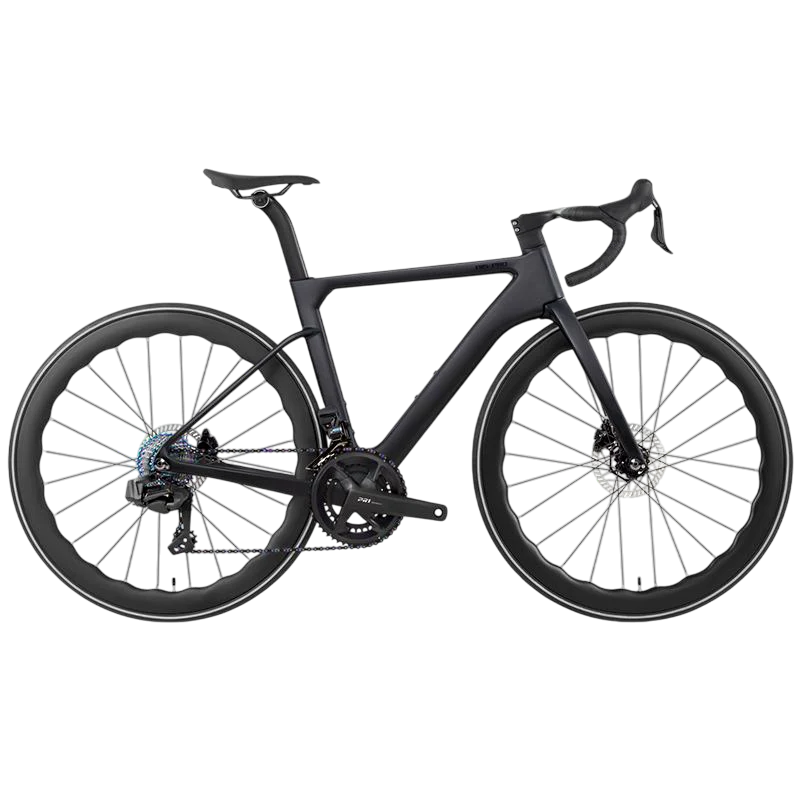

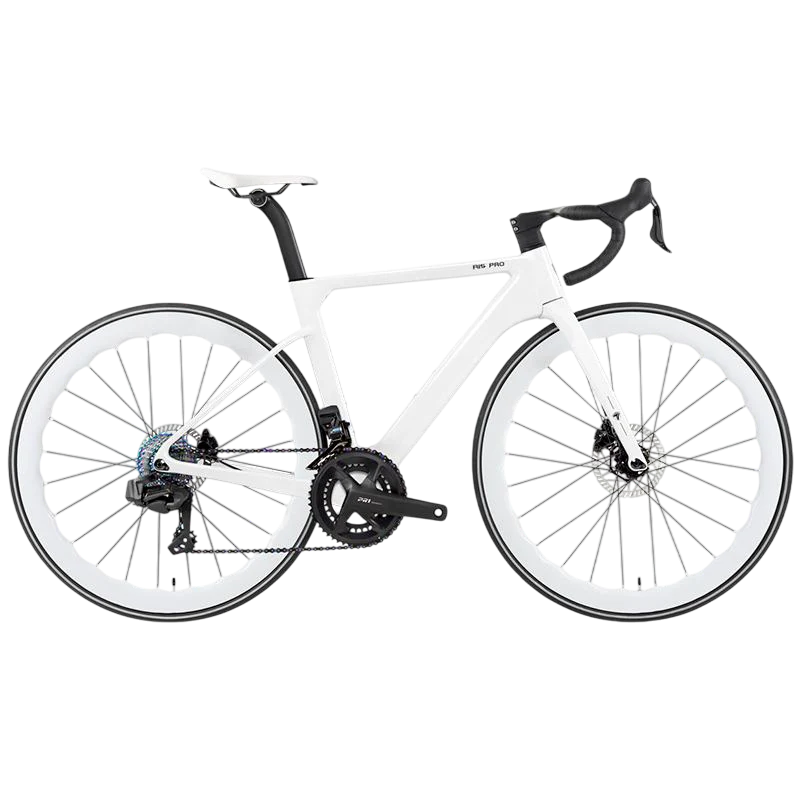

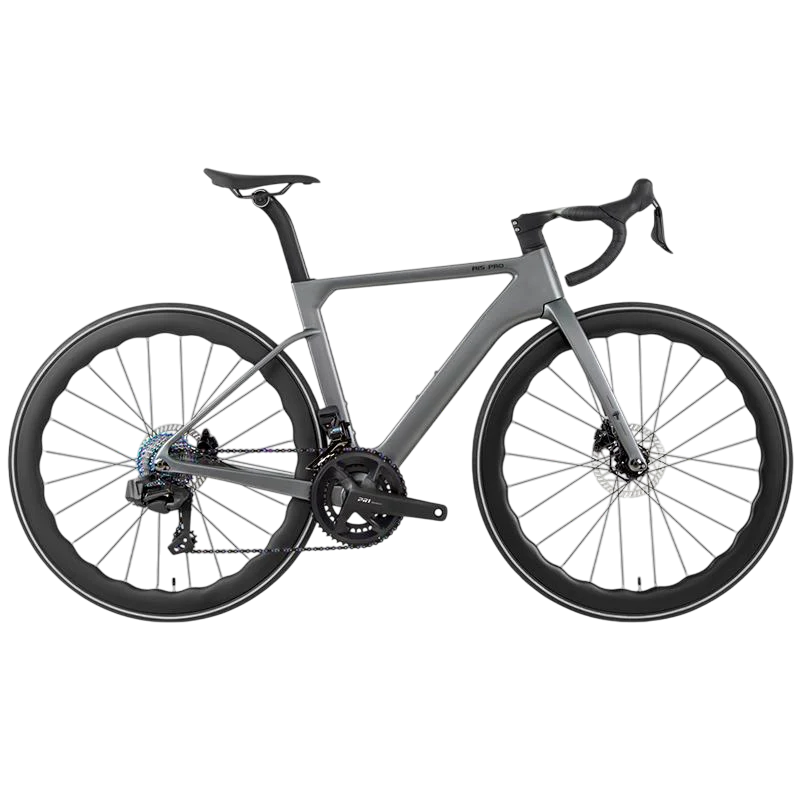

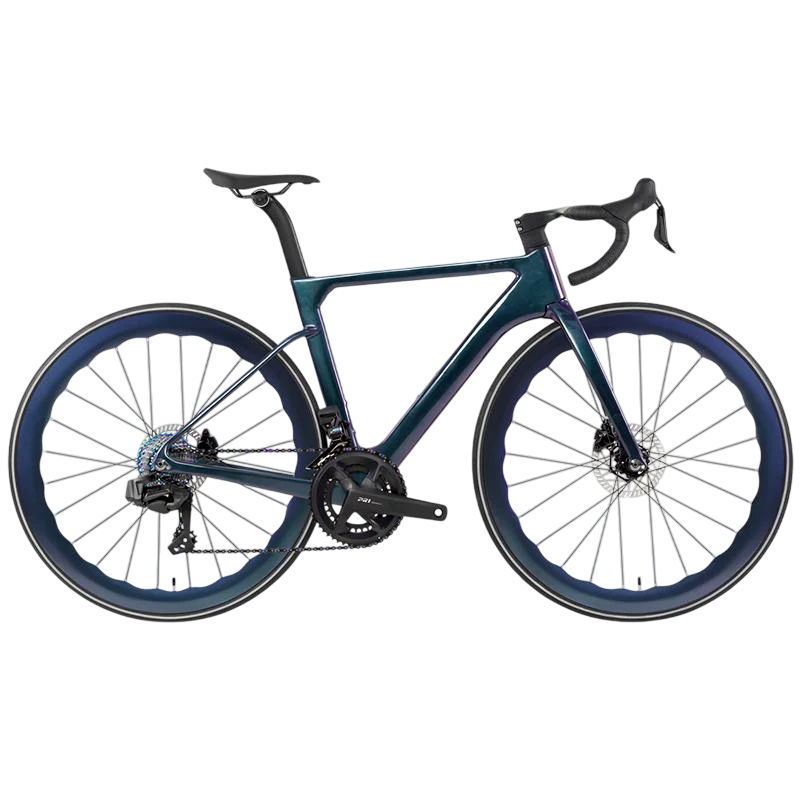

R15 Pro - 3rd - Twitter Carbon Road Bike

Key Components

• Wheel Size: 700C

• Frame Heights: 44 / 47 / 50 / 53 / 56 cm

• Bike Colors: White / Black / Dark Gray / Dark Green / Red / Cyan / Pink / Others / Full Holographic

• Net Weight: 9.1 kg (WheelTop Version) / 8.9 kg (SHIMANO Version)

---

Frame & Structure

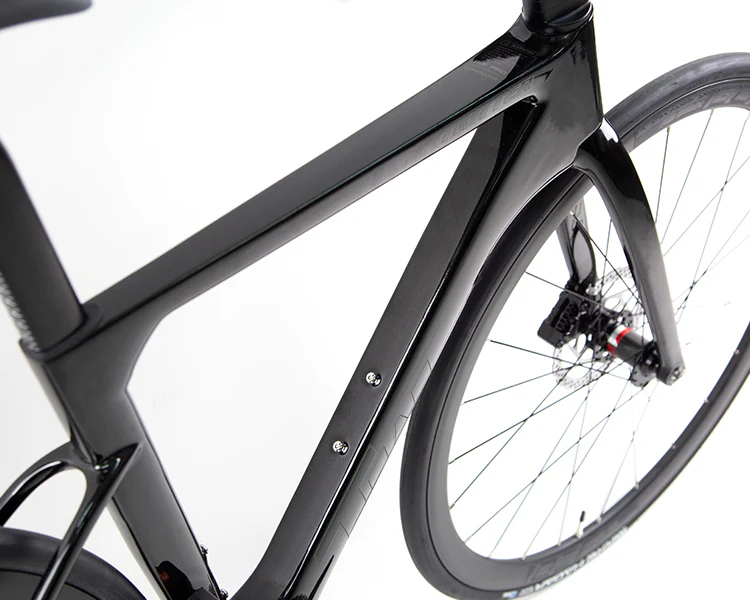

• Frame: R15pro (Disc & Thru-Axle 12×142), high modulus Carbon Fiber, Aero-Racing design, full internal cable routing

• Fork: R15pro (Disc & Thru-Axle 12×100), high modulus Carbon Fiber, 700C

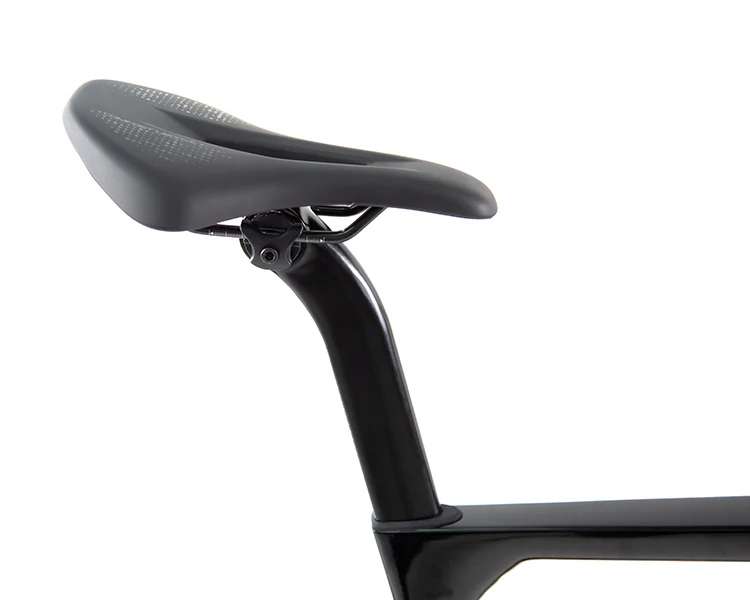

• Seat Post: High modulus Carbon Fiber, Aero-Racing profile

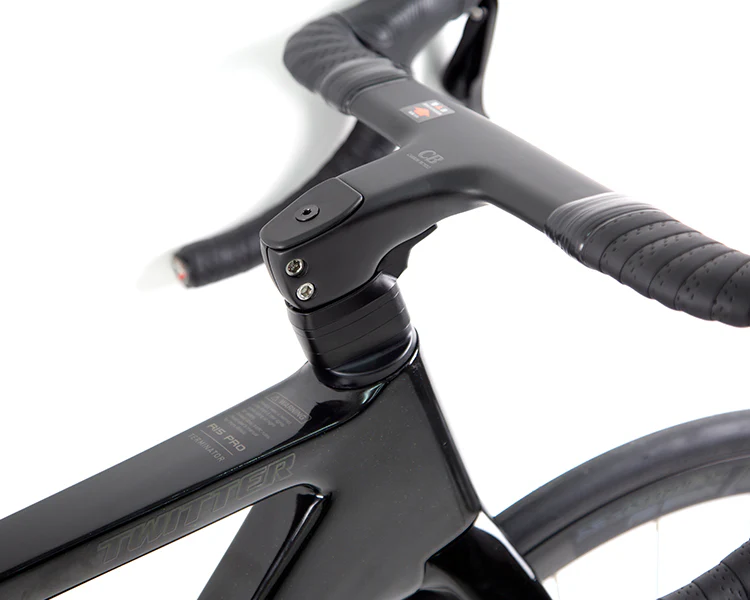

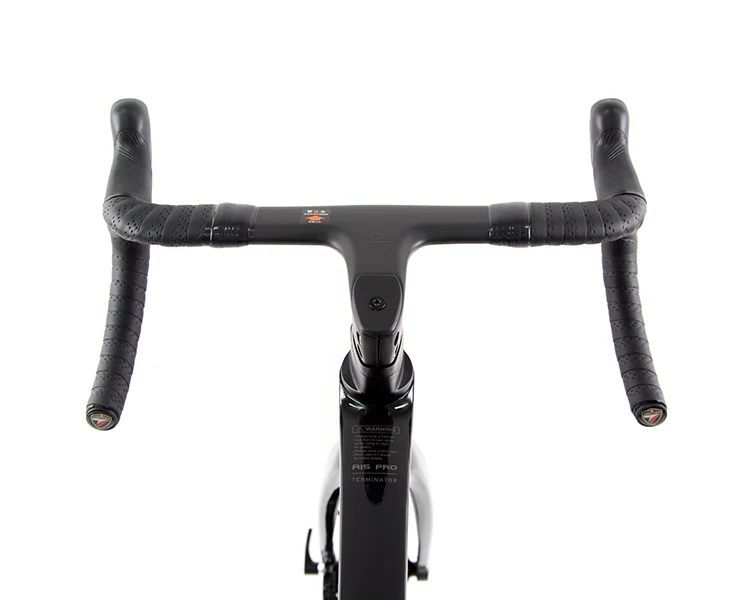

• Handlebar Set: Lightweight Aluminum Alloy Integrated Handlebar & Stem (400×90 mm), full internal cable routing

• Clamps: Hidden screw fit to frame

• Head Set: CNC aluminum alloy with sealed bearings (52×52 mm)

• Bottom Bracket: Threaded T47×24 mm, hollow & sealed bearings

• Washer: Special for internal cable routing

---

Drivetrain Options

Variant 1 – WheelTop TX-24S Wireless Hydraulic, Carbon Wheel & Wave Rim

• System: WheelTop TX 24S, wireless & hydraulic, carbon wheel & wave rim

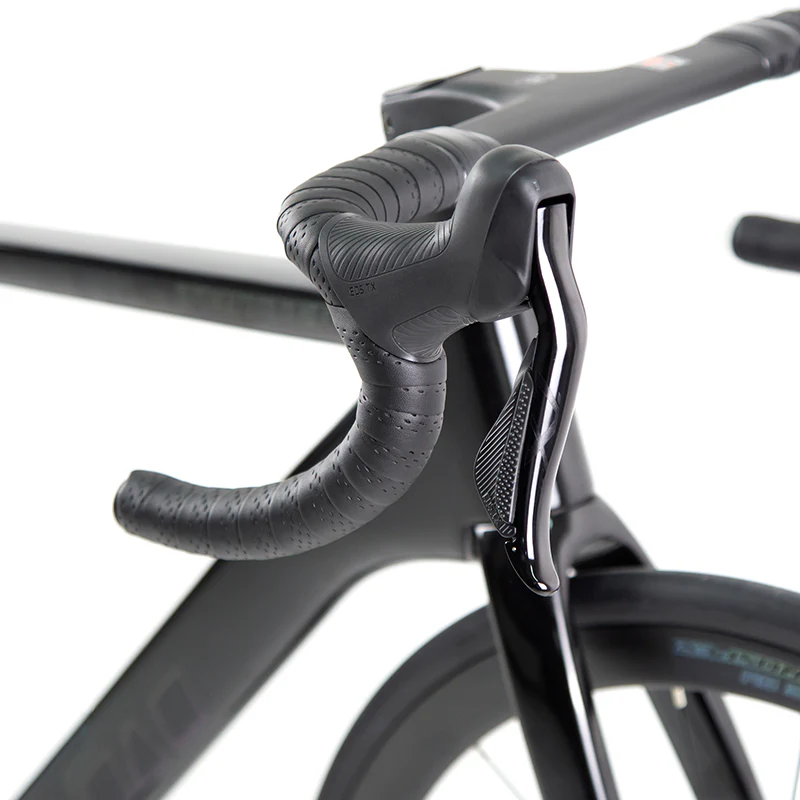

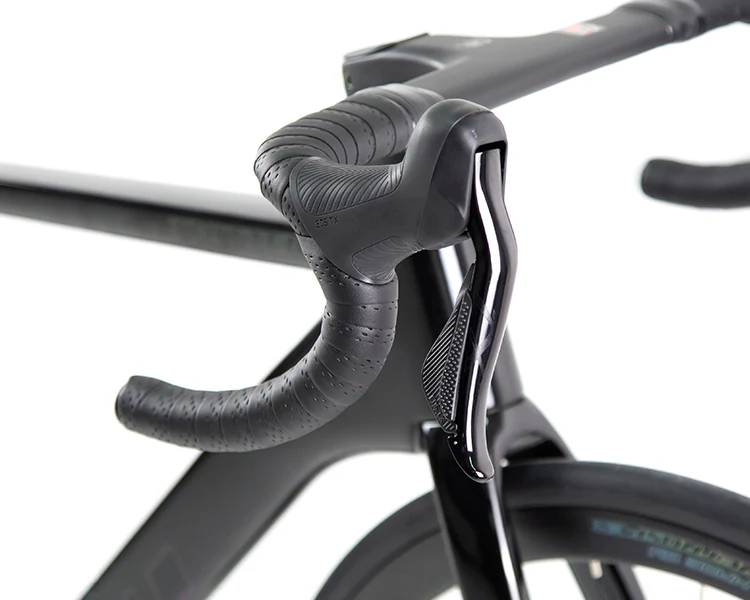

• Shifters: WheelTop EDS TX 2×12-speed (wireless & hydraulic)

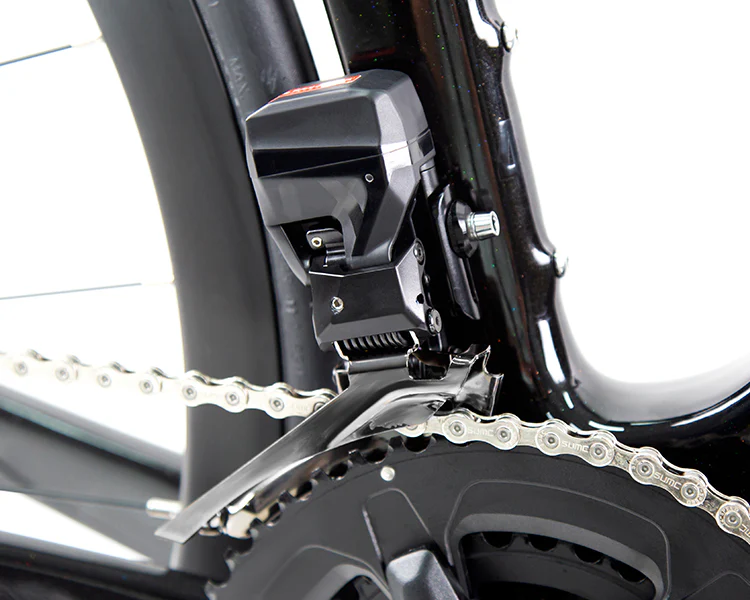

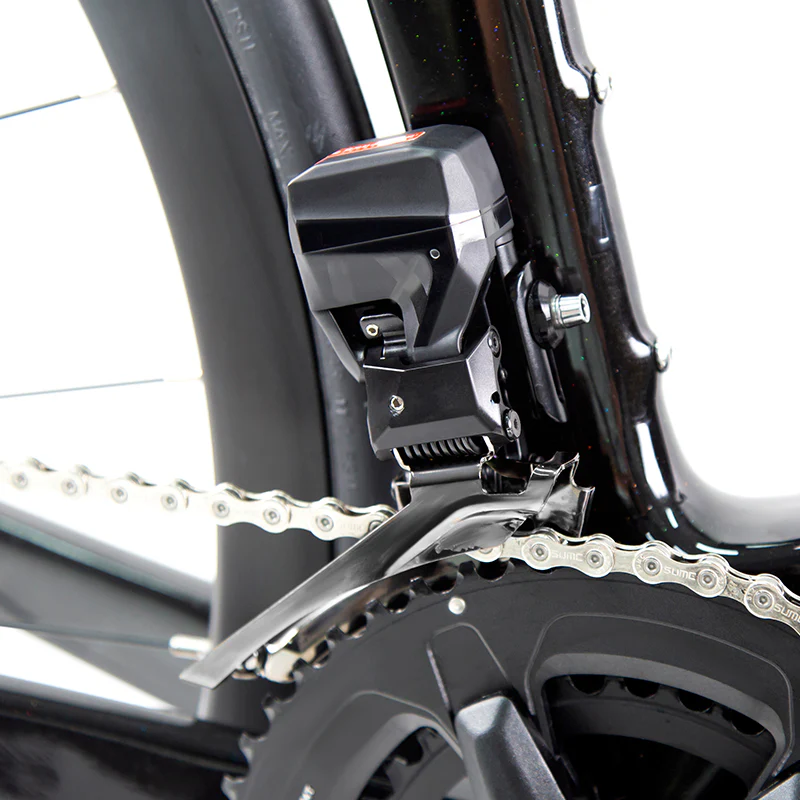

• Front Derailleur: WheelTop EDS TX 2-speed (wireless)

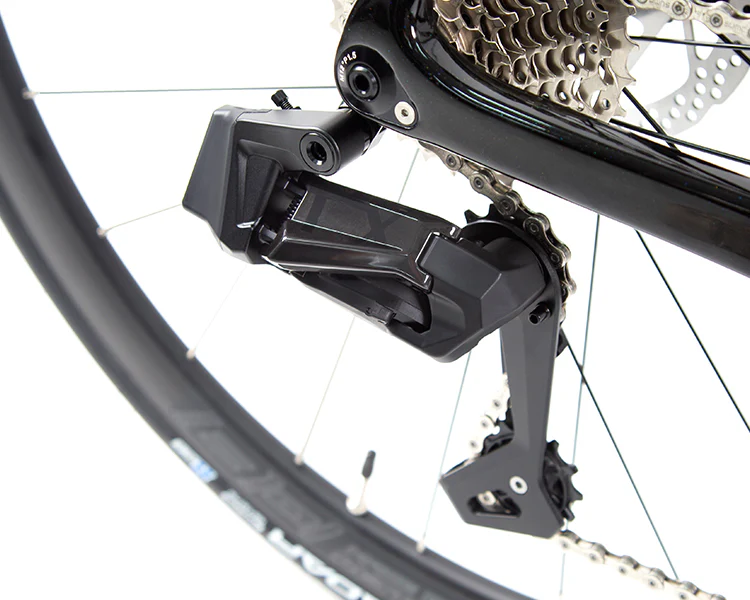

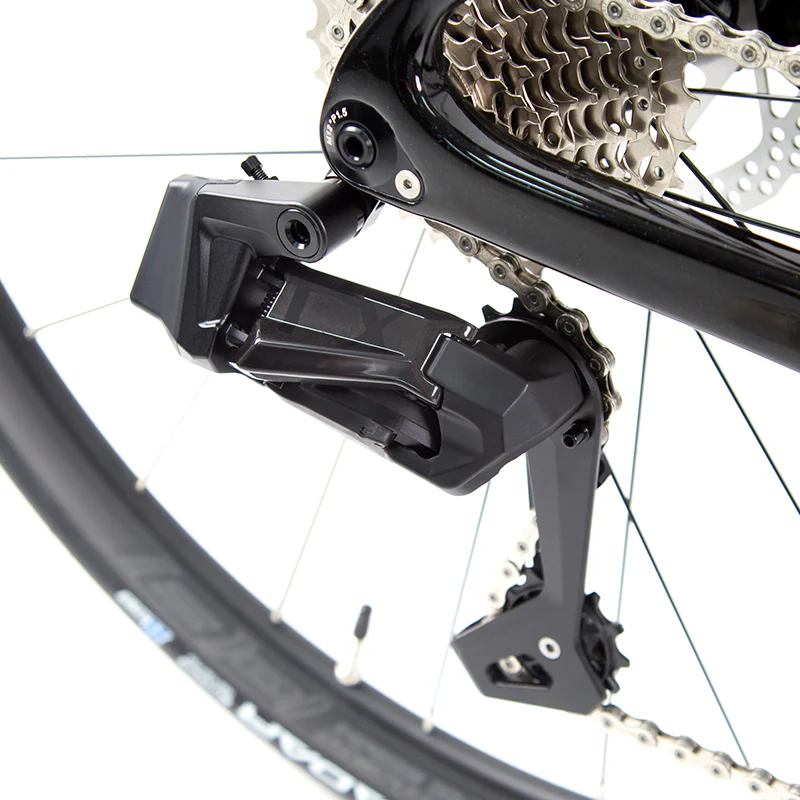

• Rear Derailleur: WheelTop EDS TX 12-speed (wireless)

• Crankset: SENICX PRF aluminum alloy hollow 34/50T

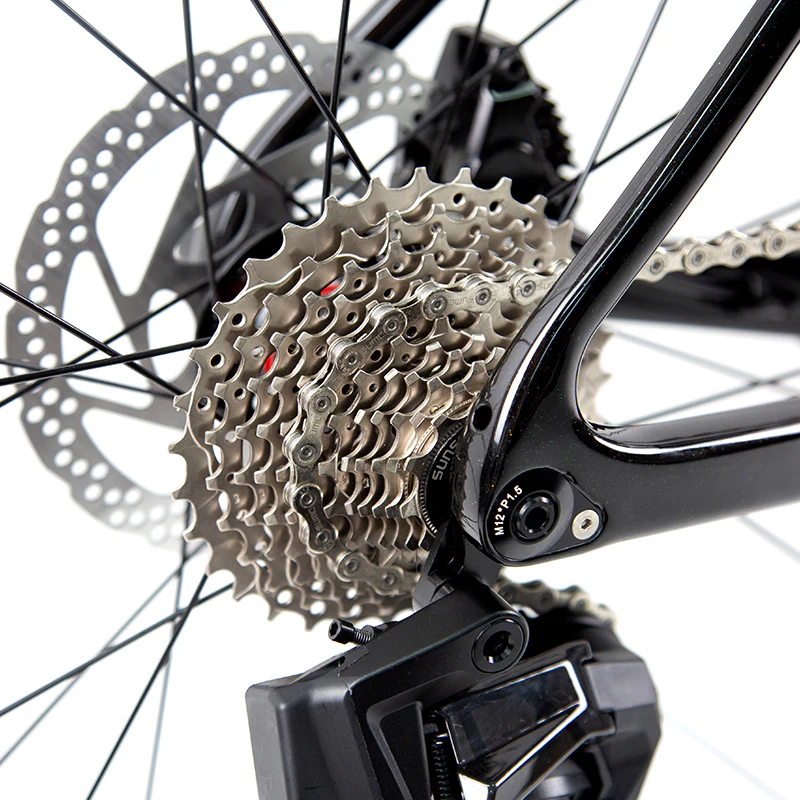

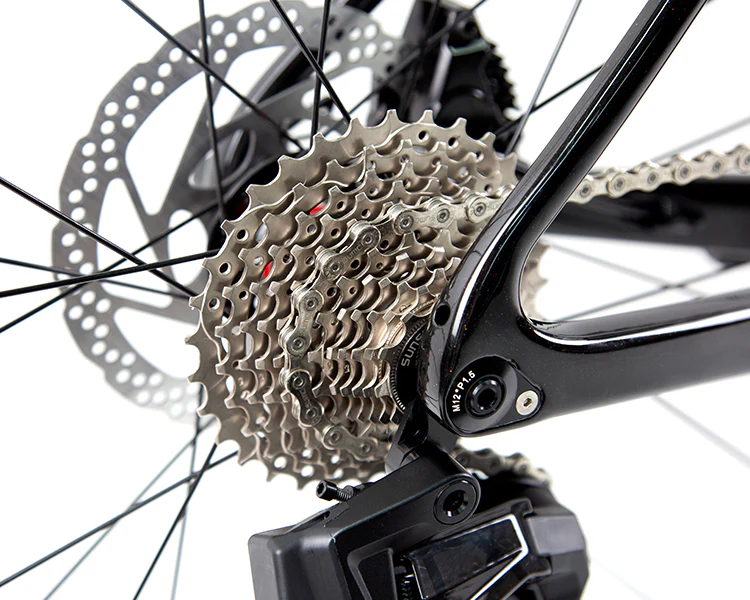

• Cassette: SUNSHINE 12-speed, 11–32T

• Chain: SUMC 12-speed

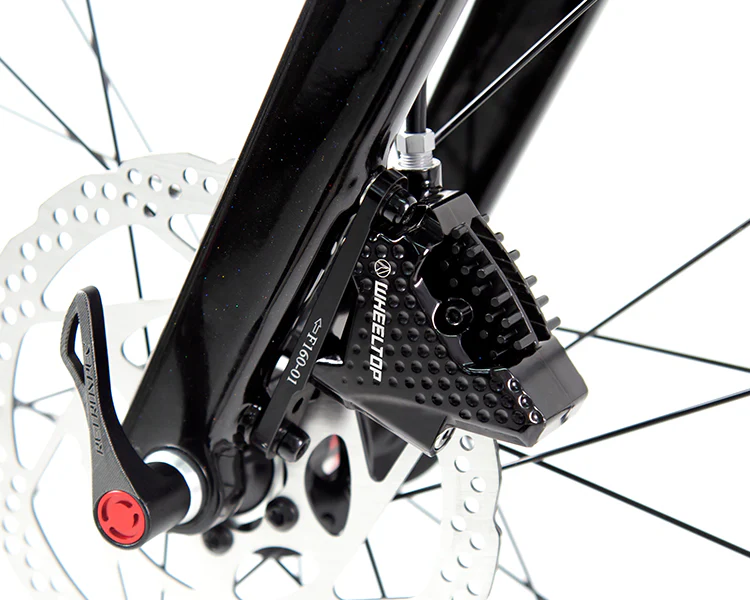

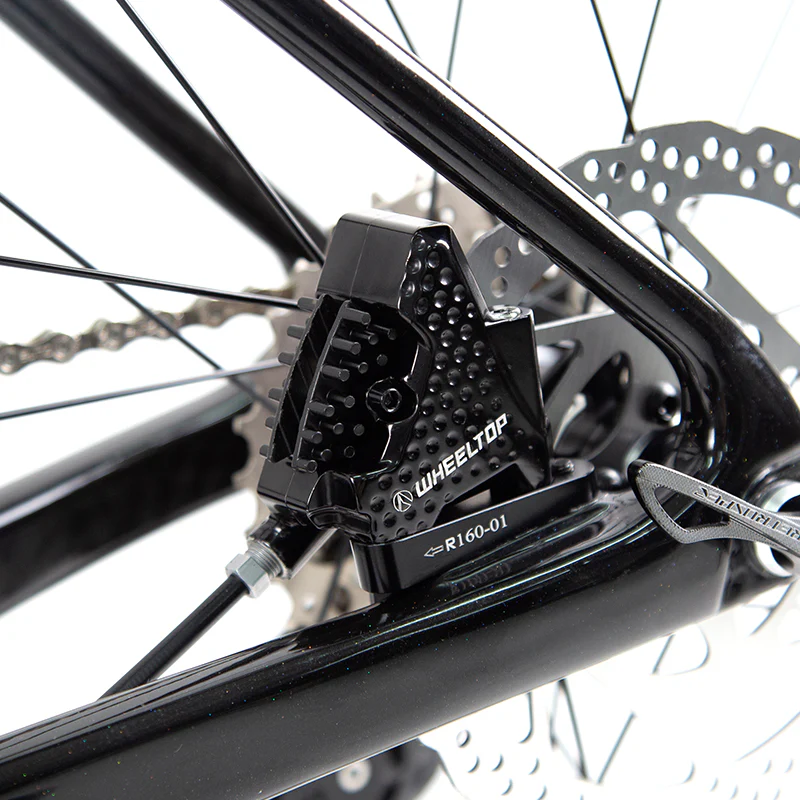

• Brakes: WheelTop hydraulic disc, 160/160 mm rotors

Variant 2 – SHIMANO 105 R7120 24-Speed Hydraulic, Carbon Wheel & Wave Rim

• System: SHIMANO 105 R7120 2×12-speed hydraulic, carbon wheel & wave rim

• Shifters: SHIMANO 105 R7120 2×12-speed hydraulic

• Front Derailleur: SHIMANO 105 R7100 2-speed

• Rear Derailleur: SHIMANO 105 R7100 12-speed

• Crankset: SENICX PRF aluminum alloy hollow 34/50T

• Cassette: SUNSHINE 12-speed, 11–32T

• Chain: SUMC 12-speed

• Brakes: SHIMANO 105 R7070 hydraulic disc, 160/160 mm rotors

---

Wheelset & Tires

• Hubs: RS aluminum alloy & carbon fiber, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142

• Rims: RS high modulus Carbon Fiber Wave Rim, W28×H50 mm

• Spokes: SHUNJIU circular 14G

• Tires: RS foldable 700×28C with reflective edges

---

Braking System

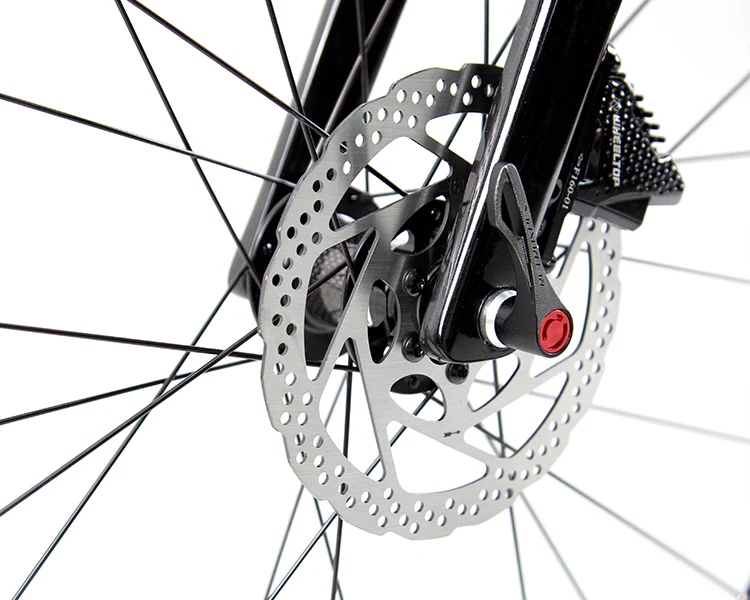

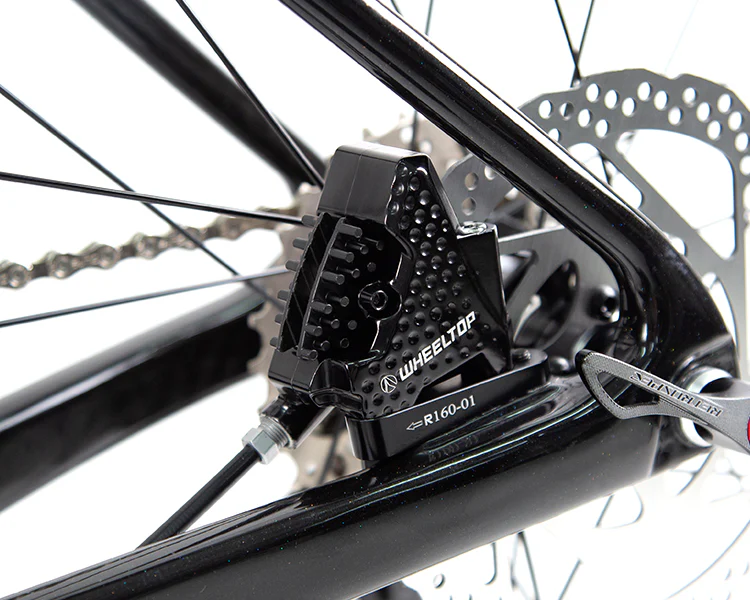

• Variant 1: WheelTop hydraulic disc, 160 mm front / 160 mm rear

• Variant 2: SHIMANO 105 R7070 hydraulic disc, 160 mm front / 160 mm rear

---

Additional Components

• Saddle: Lightweight and comfortable racing saddle

• Pedals: Lightweight & skid-resistant

• Cables: JAGWIRE performance cables

---

Included Accessories

• Standard safety reflectors (handlebar, seat post, front wheel, rear wheel)

• PC bottle cage + tools

• Manual + warranty card
