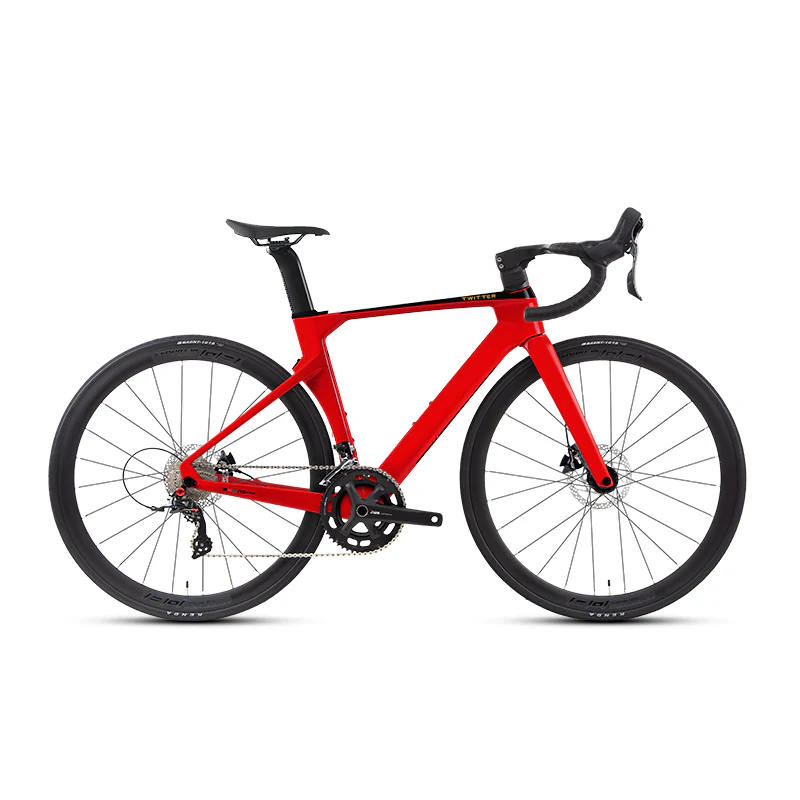

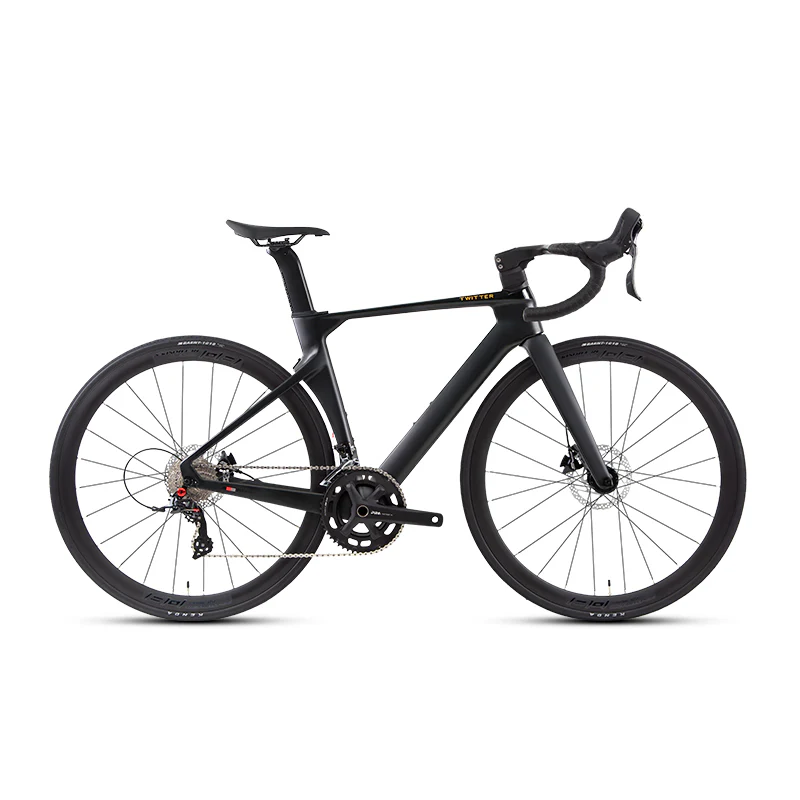

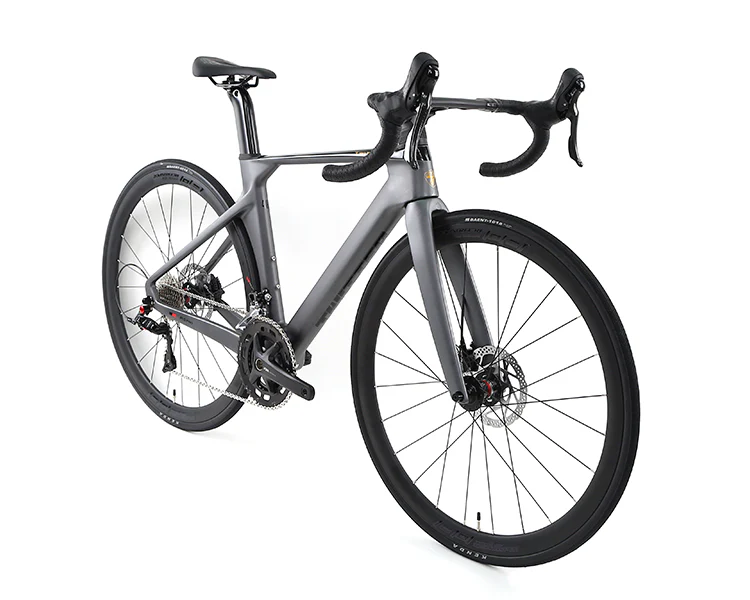

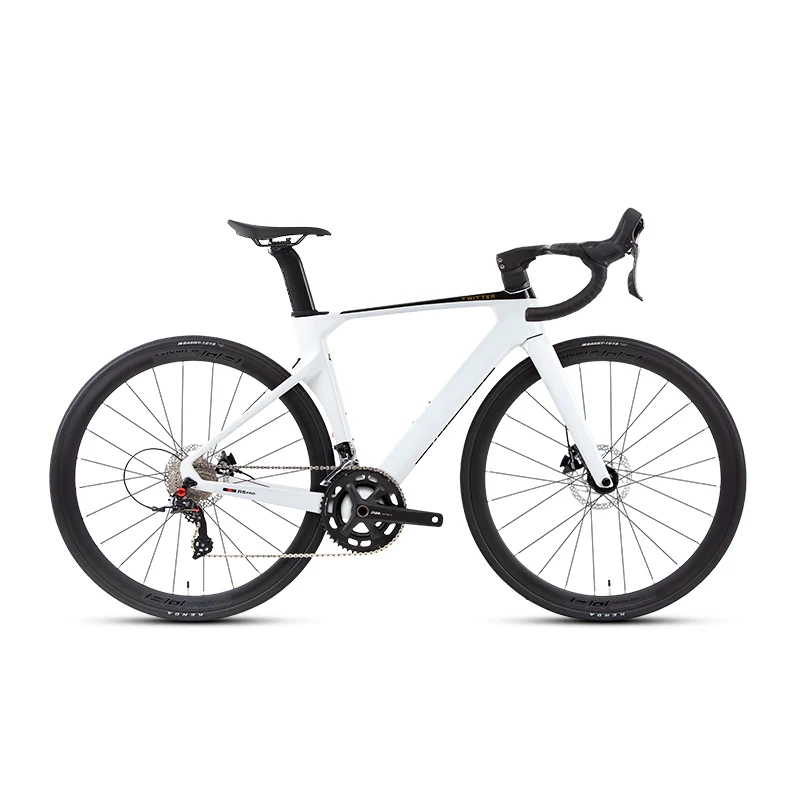

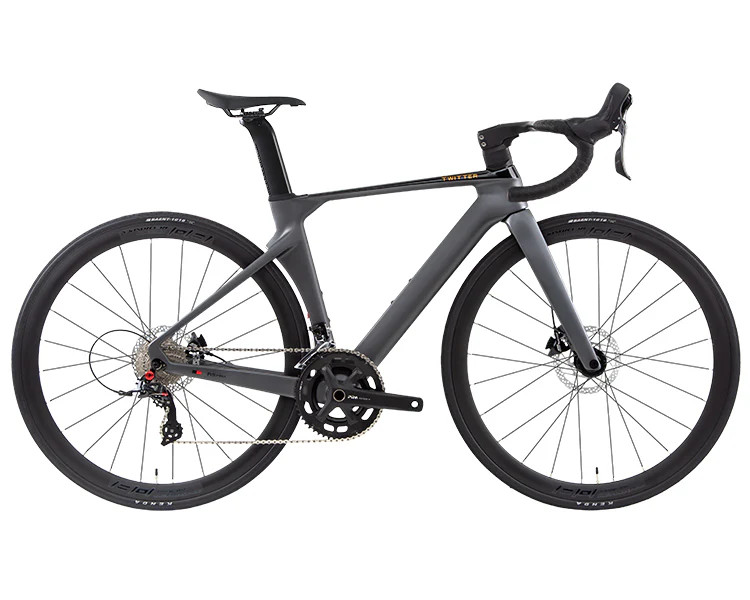

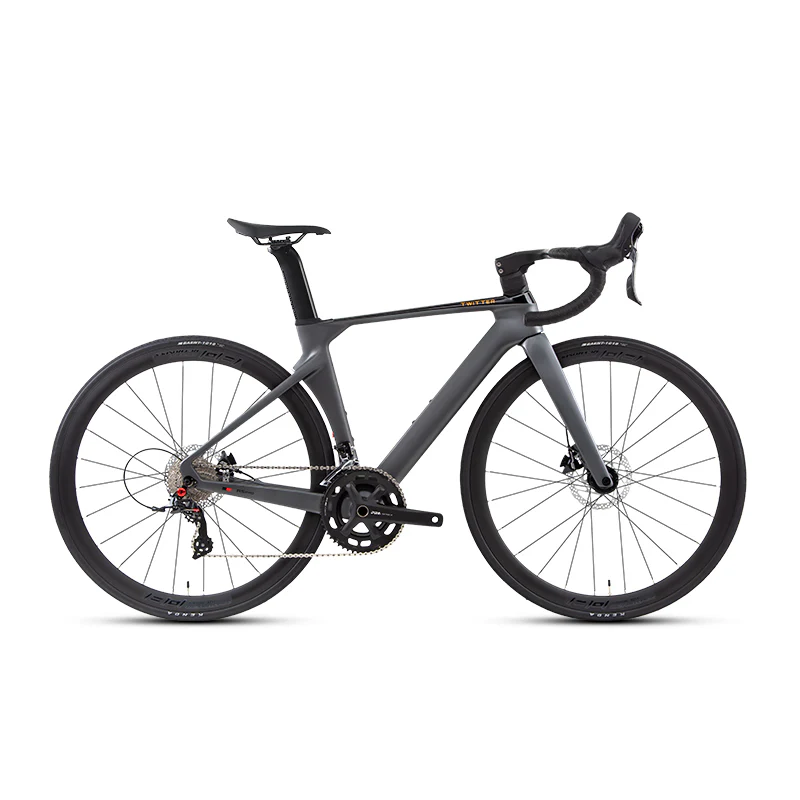

R5 Pro - 2rd Carbon Road Bike

Key Components

• Wheel Size: 700C

• Frame Heights: 43.5 / 46 / 48 / 50 / 52 / 54 / 56 cm

• Bike Colors: White / Matte Black / Matte Dark Gray / Others / Full Holographic

• Net Weight: 9.3 kg (Alloy Wheel Version) / 9.1 kg (Carbon Wheel Version)

---

Frame & Structure

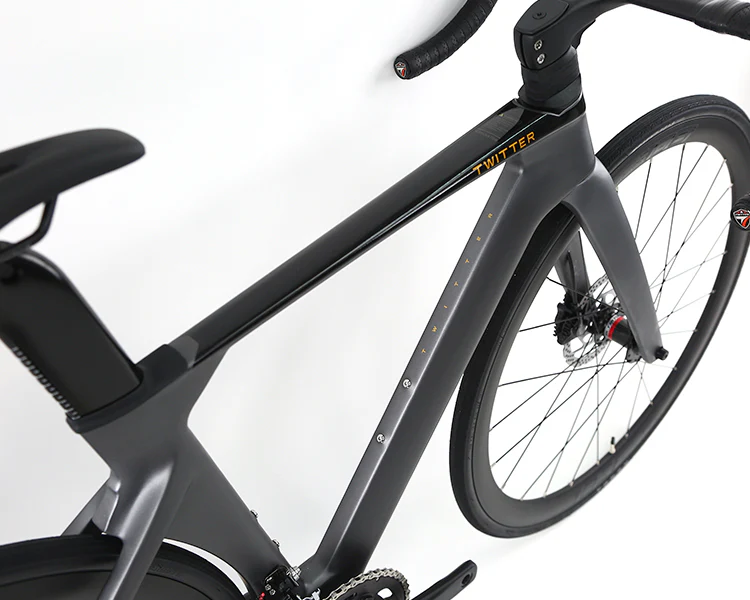

• Frame: R5pro (Disc & Thru-Axle 12×142), High Modulus Carbon Fiber, Aero-Racing Geometry, Full Internal Cable Routing

• Fork: R5pro (Disc & Thru-Axle 12×100), High Modulus Carbon Fiber, 700C

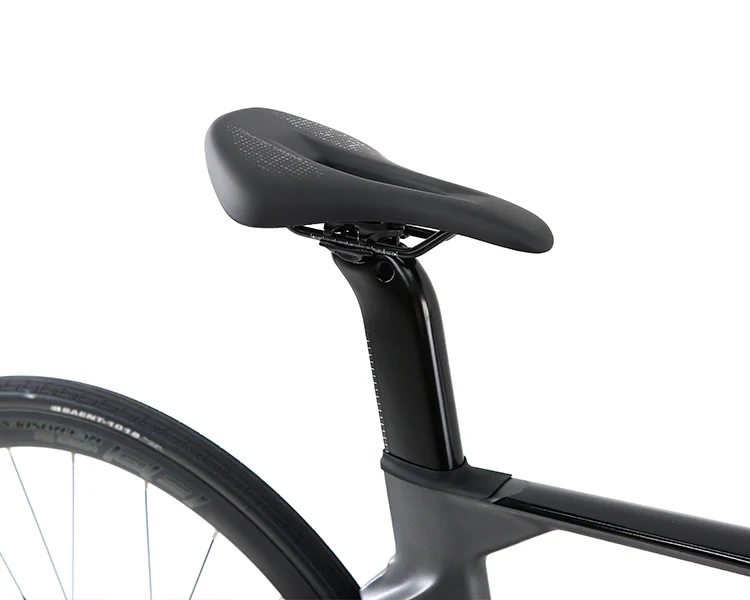

• Seat Post: High Modulus Carbon Fiber, Aero-Racing Profile

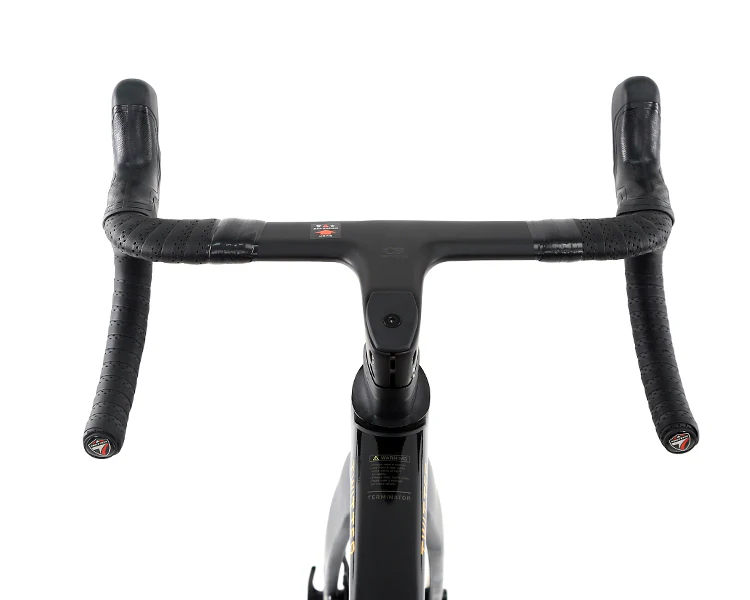

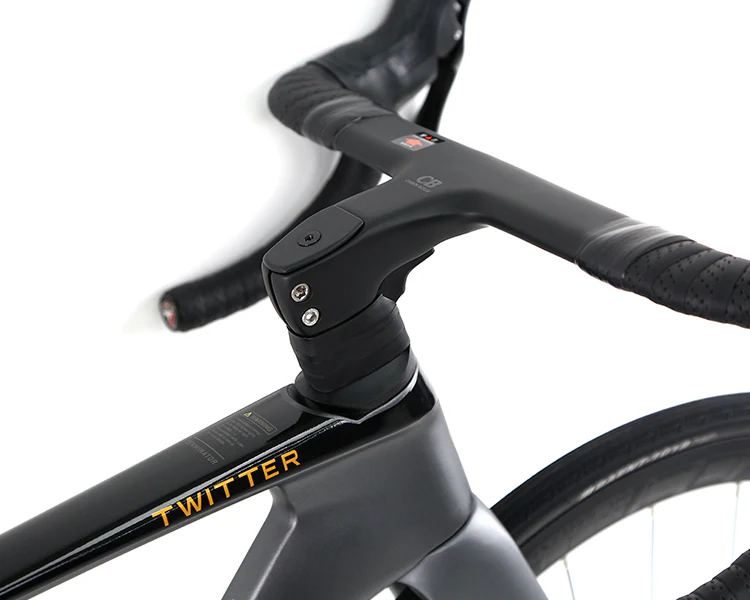

• Handlebar Set: Integrated Handlebar & Stem (420×90 mm), High Modulus Carbon Fiber, Full Internal Cable System

• Clamps: Hidden Screw Fit to Frame

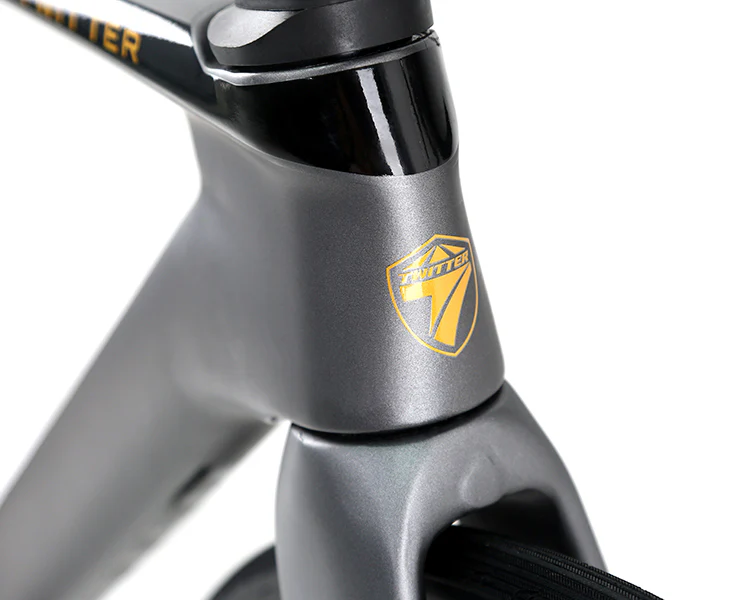

• Head Set: CNC Aluminum Alloy with Sealed Bearings (52×52 mm)

• Bottom Bracket: Threaded T47×24 mm, Hollow & Sealed Bearings

• Washer: Special Design for Internal Cable Routing

---

Drivetrain Options

Variant 1 – RS-24S Alloy Wheel Version

• System: RS-24S Hydraulic Disc, Alloy Wheel

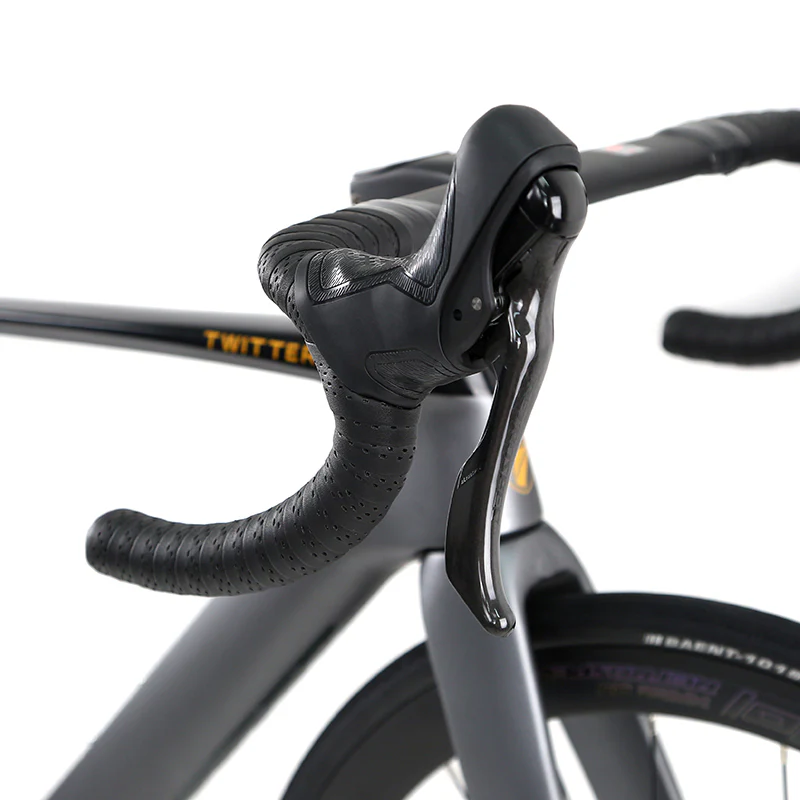

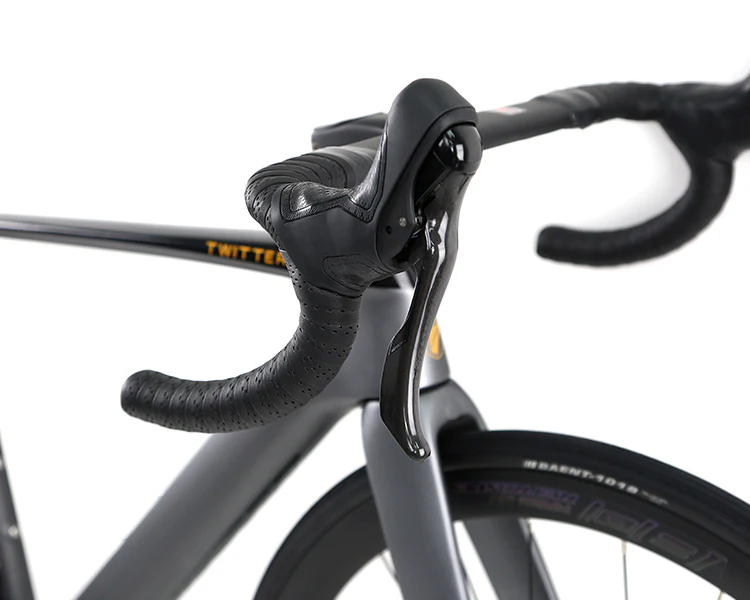

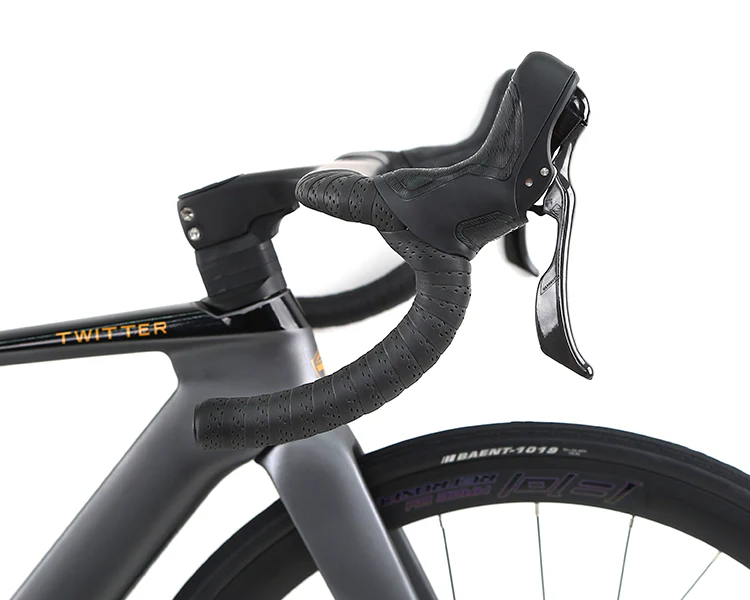

• Shifters: RS (SENSAH HRD6900-R) 2×12-Speed Hydraulic

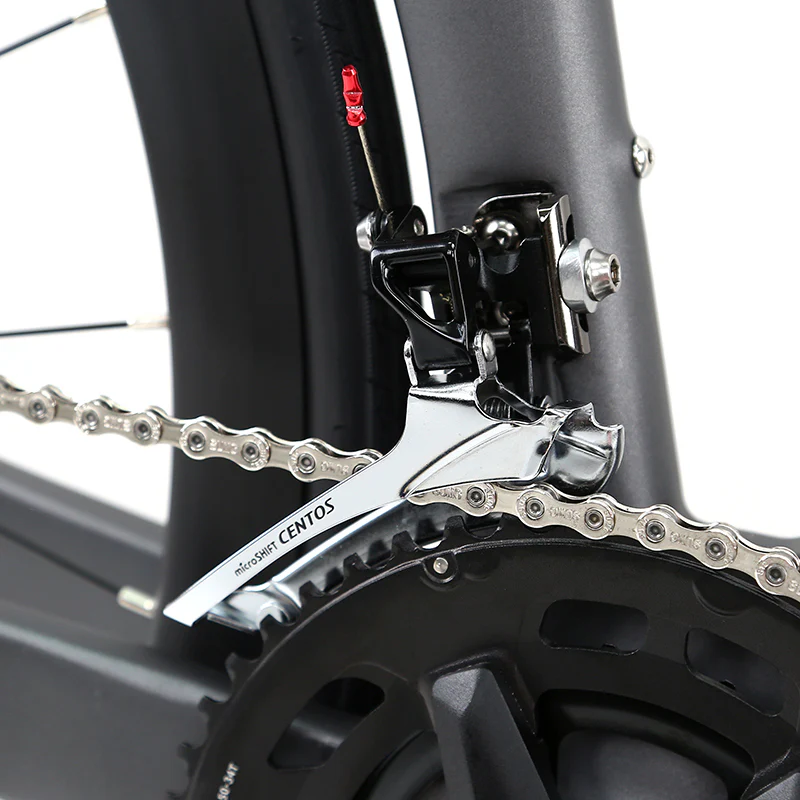

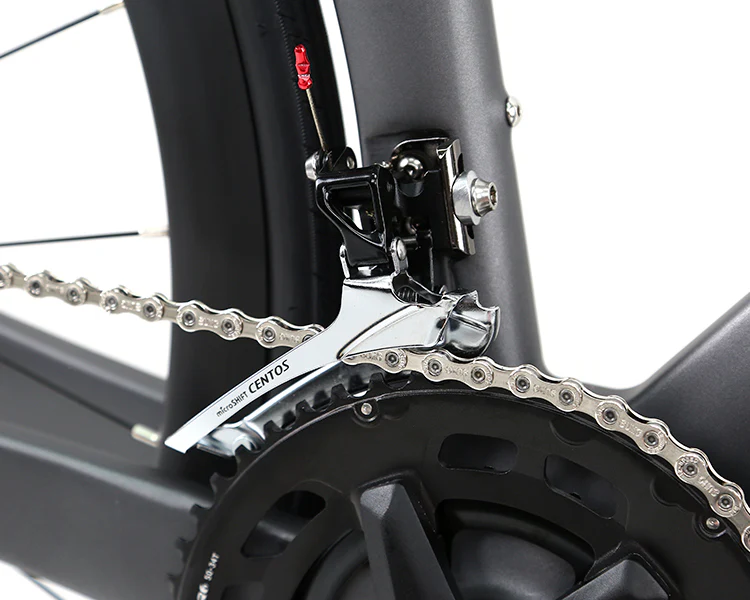

• Front Derailleur: RS (SENSAH Z2) 2-Speed

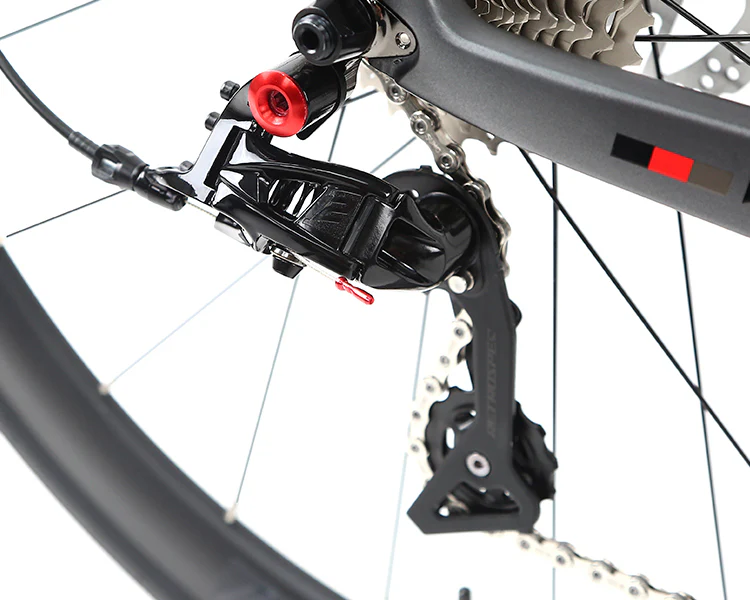

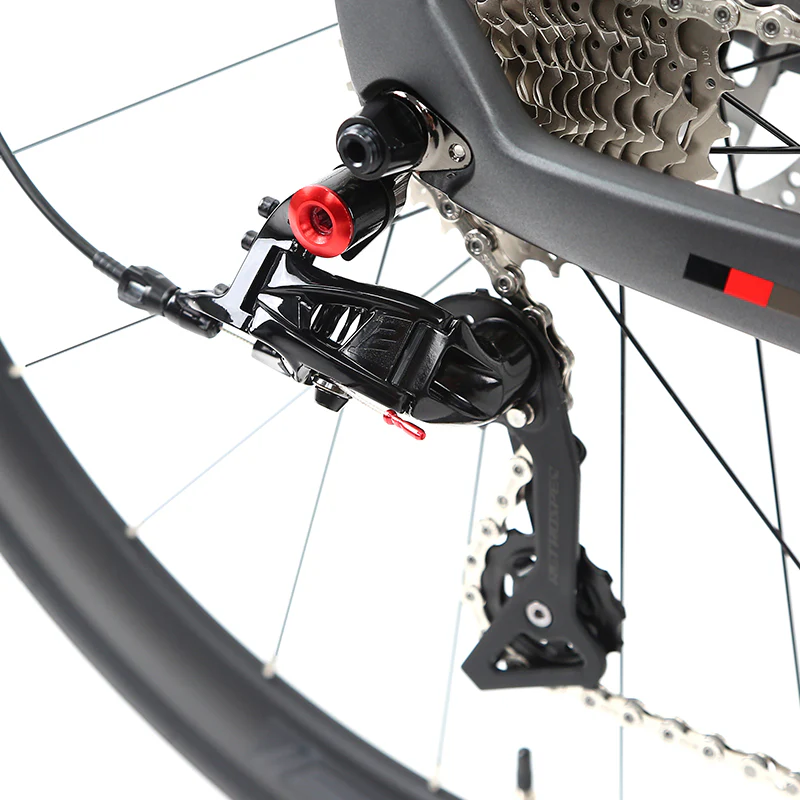

• Rear Derailleur: RS (SENSAH RD8500-GS) 12-Speed

• Crankset: SENICX PRF Aluminum Alloy Hollow 34/50T

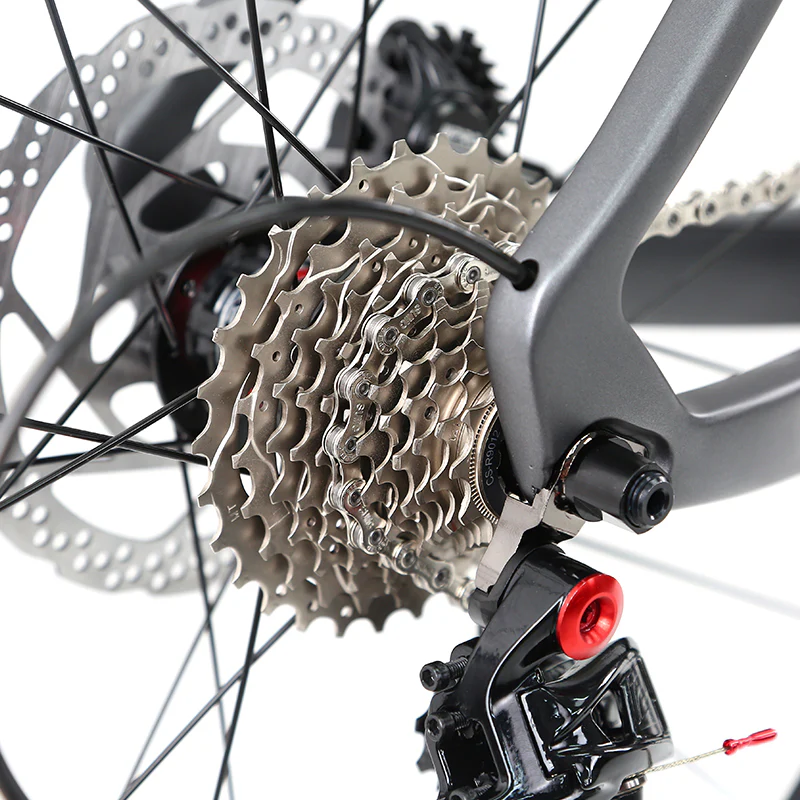

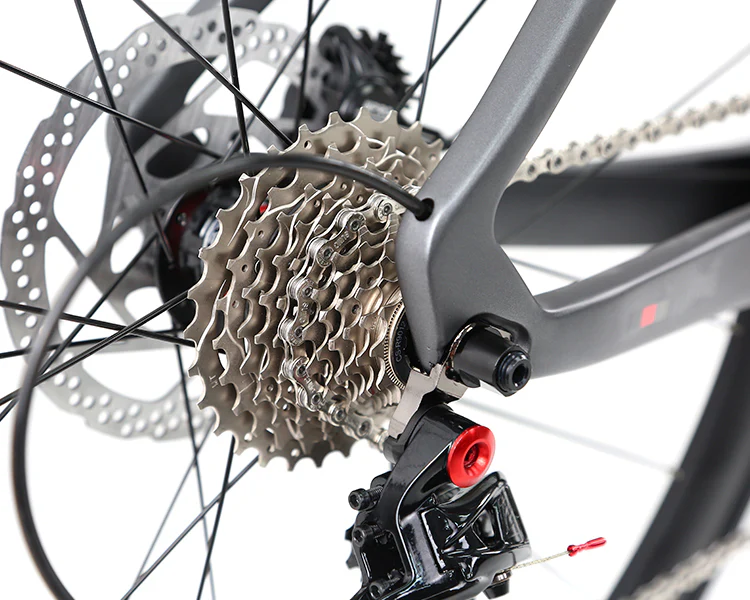

• Cassette: SUNSHINE 12-Speed, 11–32T

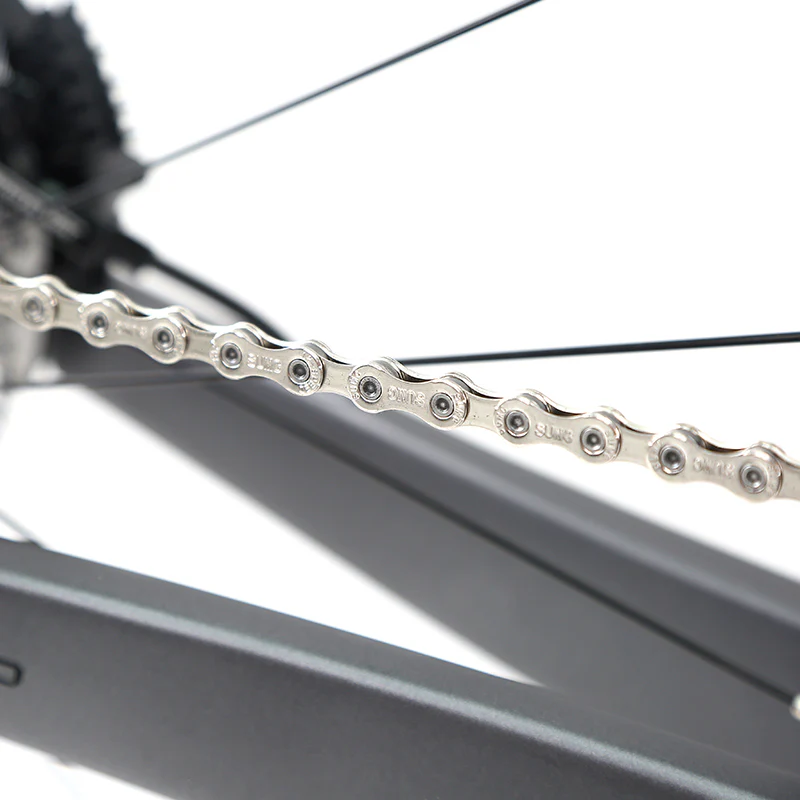

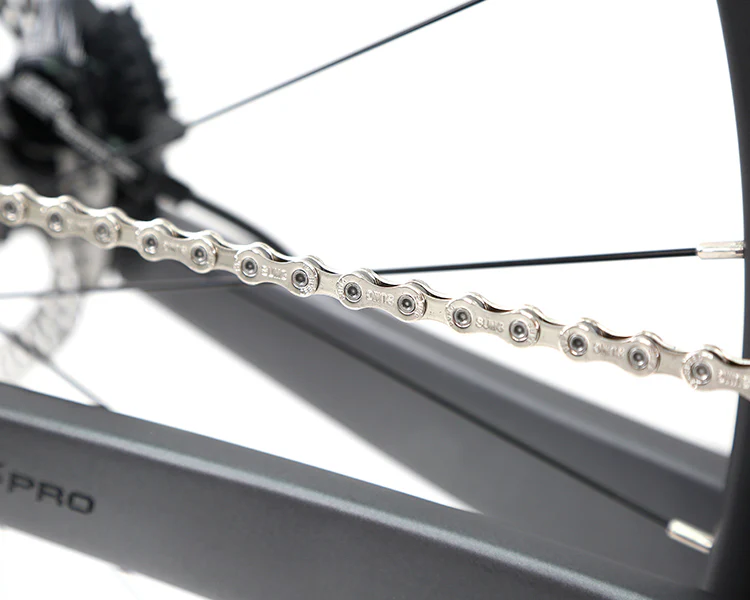

• Chain: SUMC 12-Speed

• Bottom Bracket: Threaded T47×24 mm Hollow Bearing System

Variant 2 – RS-24S Carbon Wheel & Wave Rim Version

• System: RS-24S Hydraulic Disc, Carbon Wheel & Wave Rim

• Shifters: RS (SENSAH HRD6900-R) 2×12-Speed Hydraulic

• Front Derailleur: RS (SENSAH Z2) 2-Speed

• Rear Derailleur: RS (SENSAH RD8500-GS) 12-Speed

• Crankset: SENICX PRF Aluminum Alloy Hollow 34/50T

• Cassette: SUNSHINE 12-Speed, 11–32T

• Chain: SUMC 12-Speed

• Bottom Bracket: Threaded T47×24 mm Hollow Bearing System

---

Wheelset & Tires

Variant 1 – Alloy Wheel Version

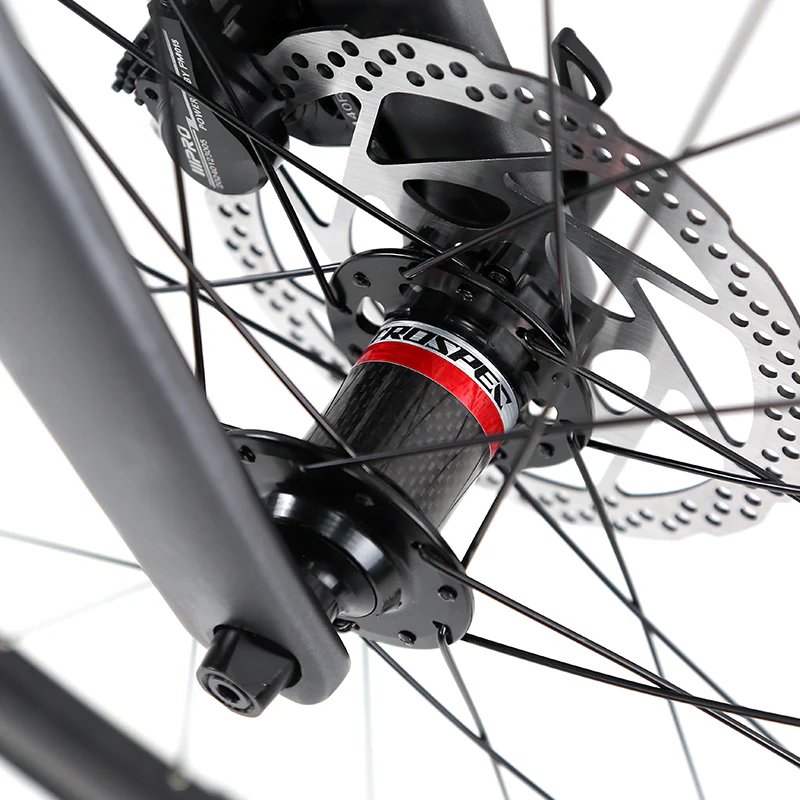

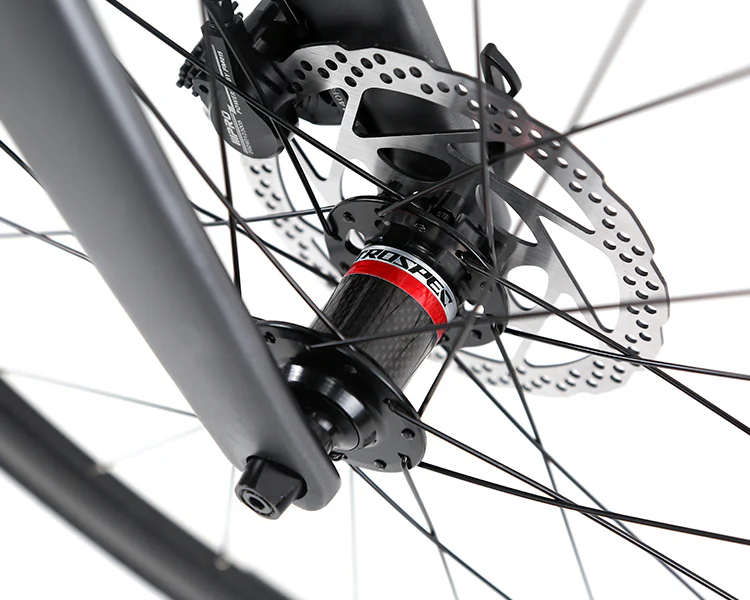

• Hubs: RS Aluminum Alloy & Carbon Fiber Body, 4-Sealed Bearings, HG Freehub, 24H Front / 24H Rear, Disc & Thru-Axle F12×100 / R12×142

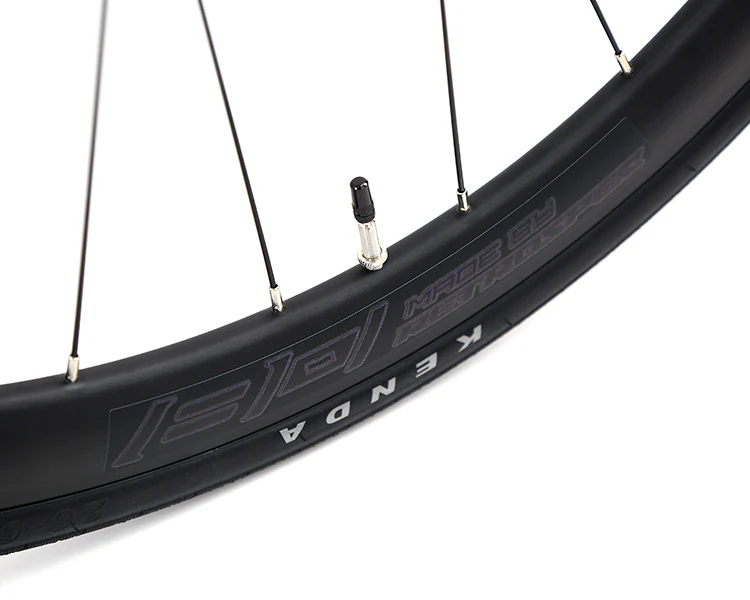

• Rims: RS Aluminum Alloy AL7005, Double Wall Construction, W21×H38 mm

• Spokes: SHUNJIU Circular 14G Steel

• Tires: RS Foldable 700×28C with Reflective Edges

Variant 2 – Carbon Wheel & Wave Rim Version

• Hubs: RS Aluminum Alloy & Carbon Fiber Body, 4-Sealed Bearings, HG Freehub, 24H Front / 24H Rear, Disc & Thru-Axle F12×100 / R12×142

• Rims: RS High Modulus Carbon Fiber Wave Rim, W28×H50 mm Profile

• Spokes: SHUNJIU Flat 14G Aero Spokes

• Tires: RS Foldable 700×28C with Reflective Edges

---

Braking System

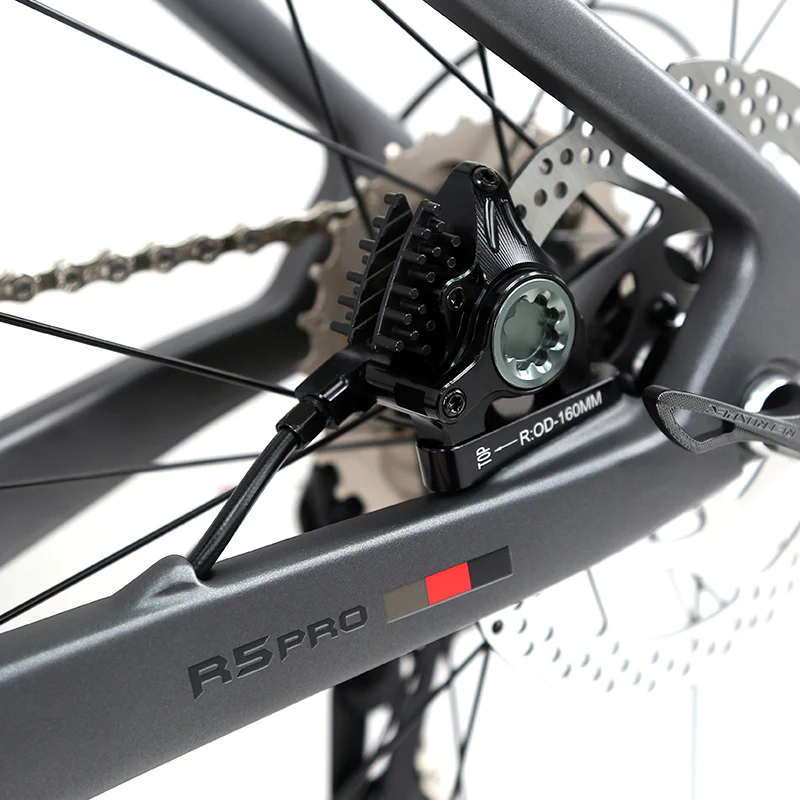

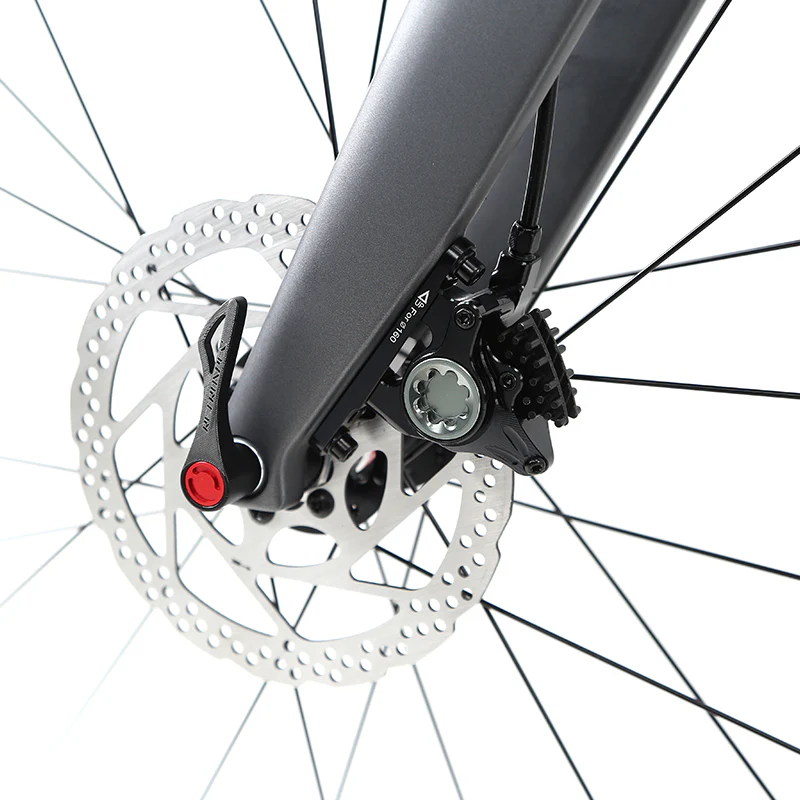

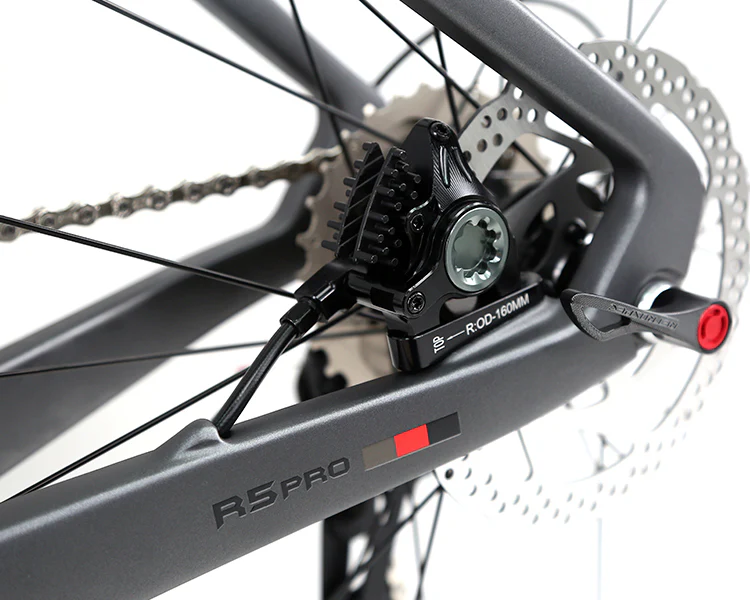

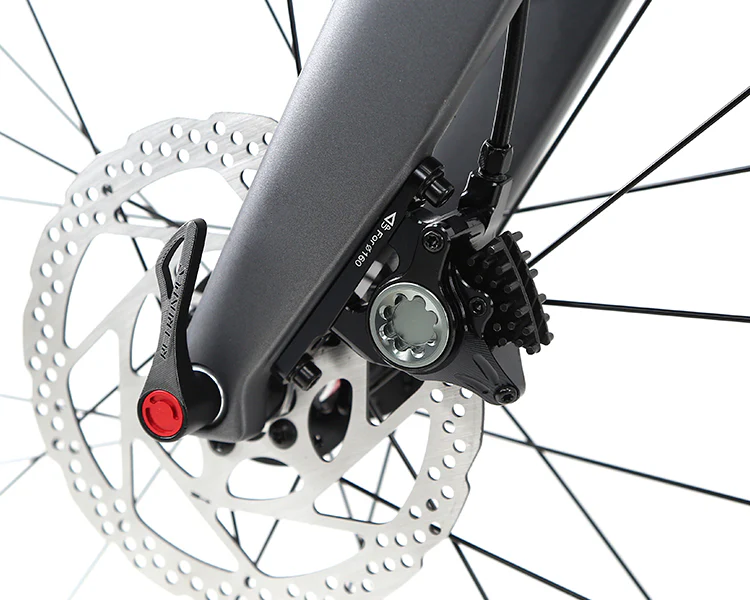

• Brakes: RS (SENSAH HRD-G100) Hydraulic Disc, 160 mm Front / 160 mm Rear Rotors

---

Additional Components

• Saddle: Lightweight and comfortable racing saddle

• Pedals: Lightweight & skid-resistant

• Cables: JAGWIRE performance cables

---

Included Accessories

• Standard Safety Reflectors (Handlebar, Seat Post, Front & Rear Wheels)

• PC Bottle Cage + Tool Kit

• Manual + Warranty Card
