T10 Pro - 2rd - Twitter Carbon Road Bike

Key Components

• Wheel Size: 700C

• Frame Heights: 46 / 48 / 50 / 52 cm

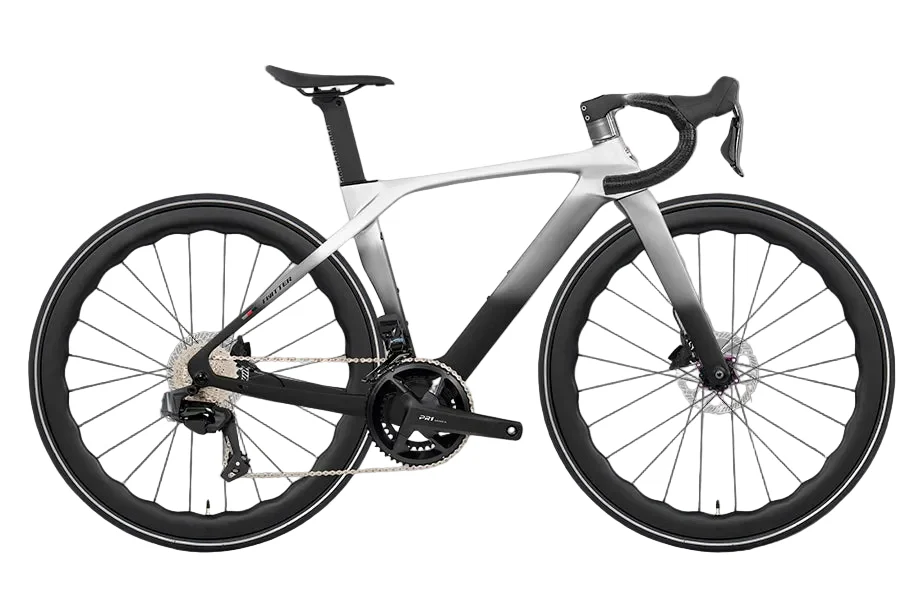

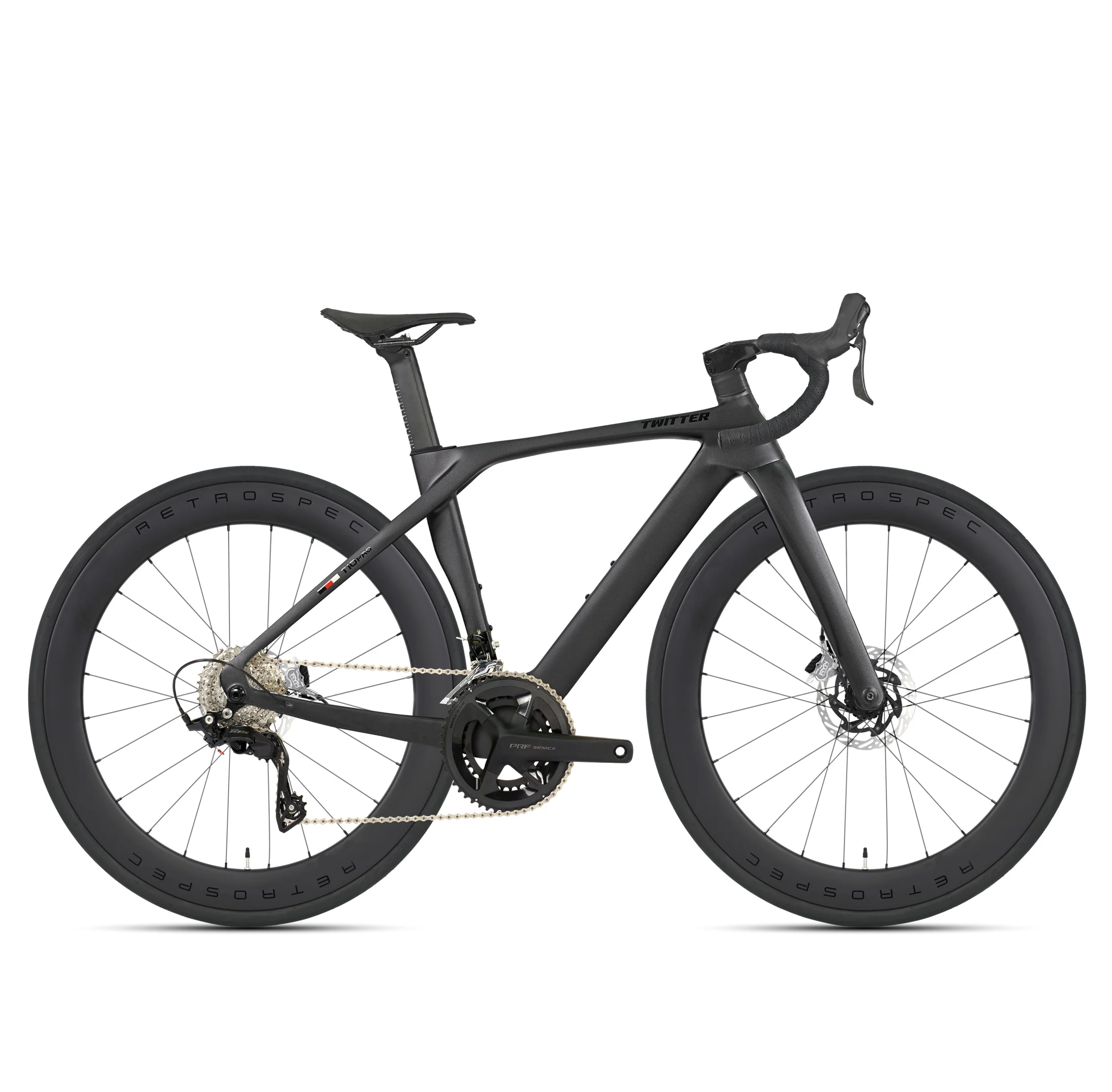

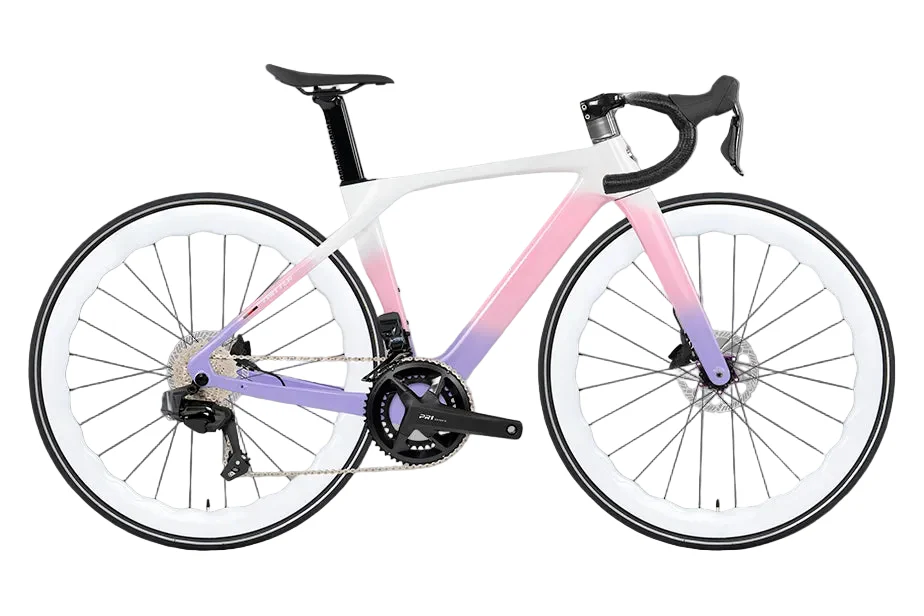

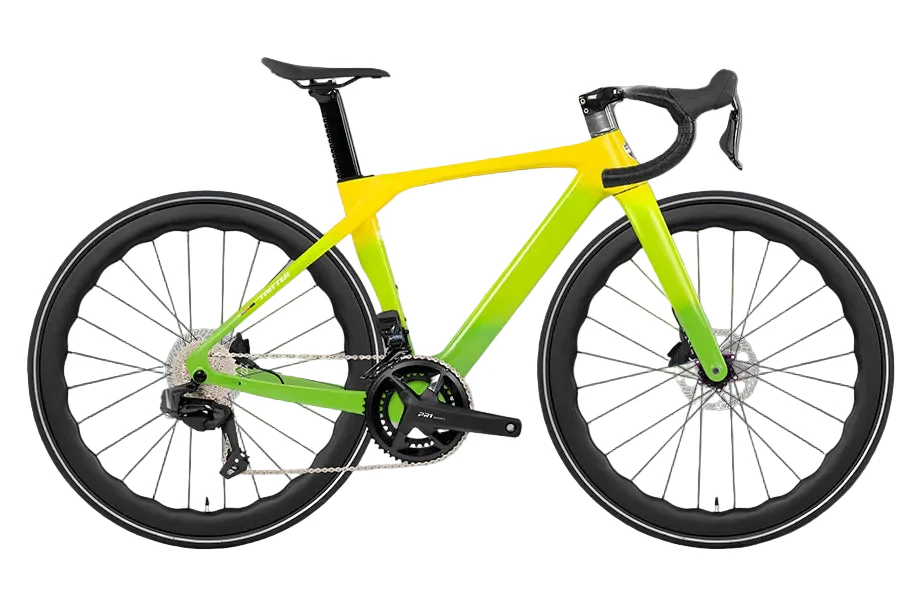

• Bike Colors: Silver Gray Black / Gold Gray Black / Yellow Bean Green / White Pink Purple / White Yellow Blue / Full Holographic

• Net Weight: 8.6 kg (RS) / 8.7 kg (WheelTop) / 8.4 kg (SHIMANO)

---

Frame & Structure

• Frame: T10pro-2RD (Disc & Thru-Axle 12×142), high modulus Carbon Fiber, Aero design with full internal cable routing

• Fork: T10pro-2RD (Disc & Thru-Axle 12×100), high modulus Carbon Fiber, 700C

• Seat Post: High modulus Carbon Fiber, Aero-Racing profile

• Handlebar Set: TW 3K Carbon Fiber Integrated Handlebar & Stem (400×90 mm), full internal cable routing

• Clamps: Hidden screw fit to frame

• Head Set: CNC aluminum alloy with sealed bearings (52×52 mm)

• Bottom Bracket: Threaded T47×24 mm / T47×29 mm, hollow bearings (variant-dependent)

• Washer: Dedicated for internal cable routing

---

Drivetrain Options

Variant 1 – RS (SENSAH) 2×12-Speed Hydraulic, Carbon Wheel

• System: RS (SENSAH HRD6900-R) 2×12-speed hydraulic

• Shifters: RS (SENSAH HRD6900-R) hydraulic 2×12

• Front Derailleur: SHIMANO 105 R7000 2-speed

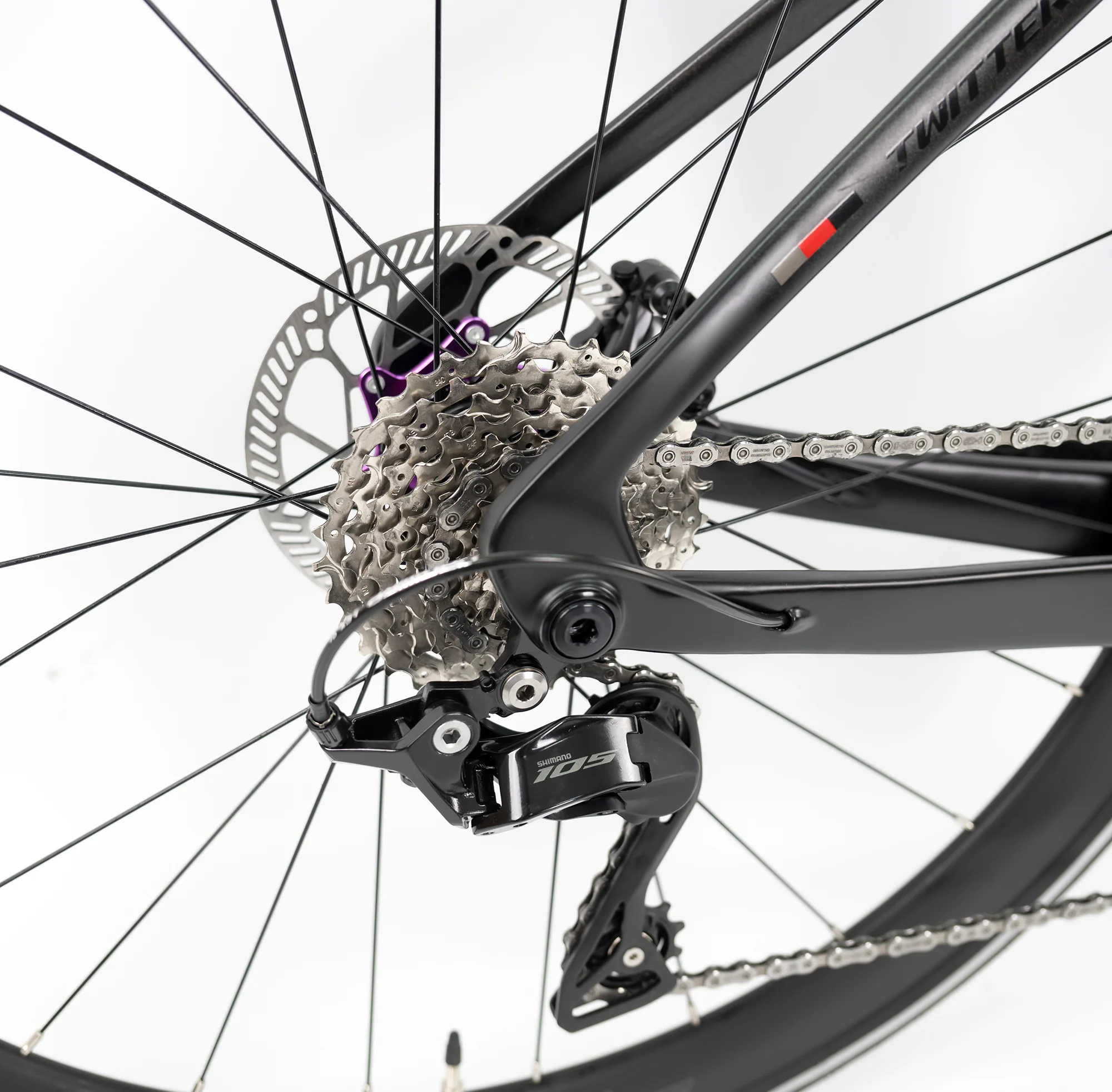

• Rear Derailleur: SHIMANO 105 R7100 12-speed

• Crankset: SENICX PR1 aluminum alloy hollow 34/50T

• Cassette: SUNSHINE 12-speed, 11–32T

• Chain: SUMC 12-speed

• Brakes: RS (SENSAH HRD-G100) hydraulic disc, 160/160 mm rotors

Variant 2 – WheelTop TX Wireless Hydraulic, Carbon Wheel

• System: WheelTop EDS TX 2×12-speed wireless & hydraulic

• Shifters: WheelTop EDS TX 2×12-speed (wireless & hydraulic)

• Front Derailleur: WheelTop EDS TX 2-speed (wireless)

• Rear Derailleur: WheelTop EDS TX 12-speed (wireless)

• Crankset: SENICX PR1 aluminum alloy hollow 34/50T

• Cassette: SUNSHINE 12-speed, 11–32T

• Chain: SUMC 12-speed

• Brakes: WheelTop hydraulic disc, 160/160 mm rotors

Variant 3 – SHIMANO 105 R7120 Hydraulic, Carbon Wheel

• System: SHIMANO 105 R7120 2×12-speed hydraulic

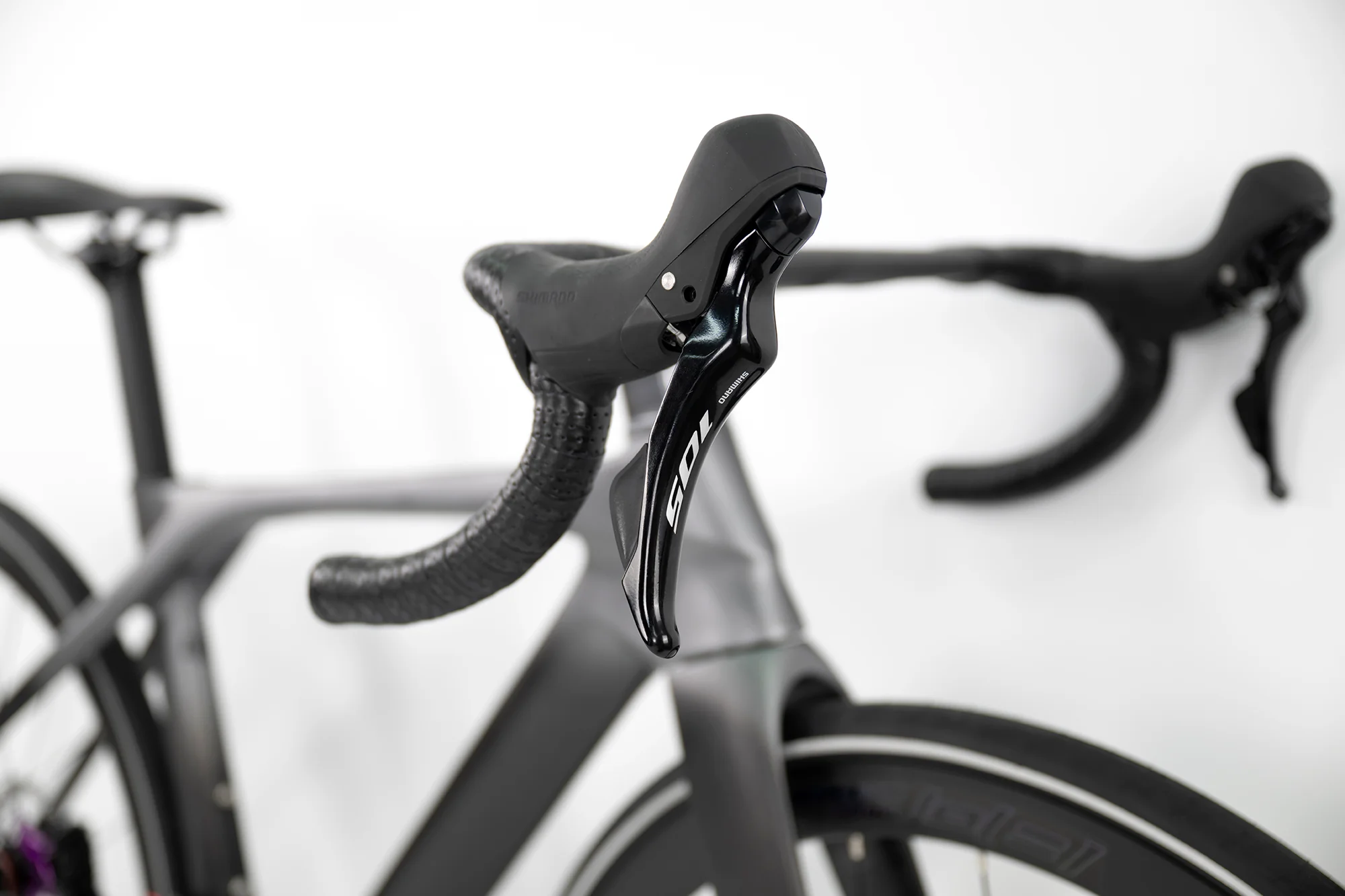

• Shifters: SHIMANO 105 R7120 hydraulic 2×12

• Front Derailleur: SHIMANO 105 R7100 2-speed

• Rear Derailleur: SHIMANO 105 R7100 12-speed

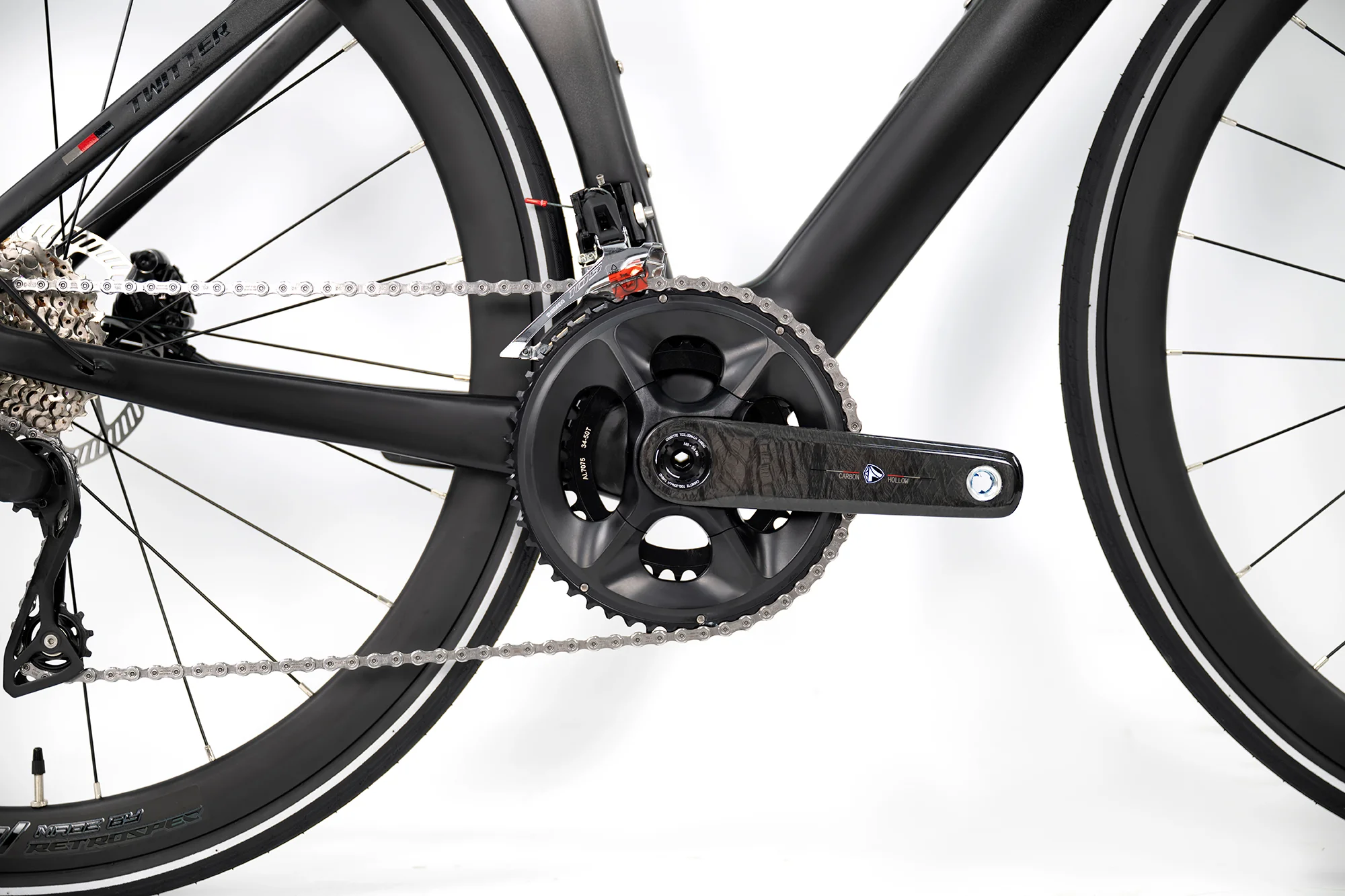

• Crankset: TW Carbon Fiber + AL7075 Chainring, Hollow & DUB, 34/50T

• Cassette: SHIMANO 105 R7100 12-speed, 11–34T

• Chain: SHIMANO HG6100 12-speed

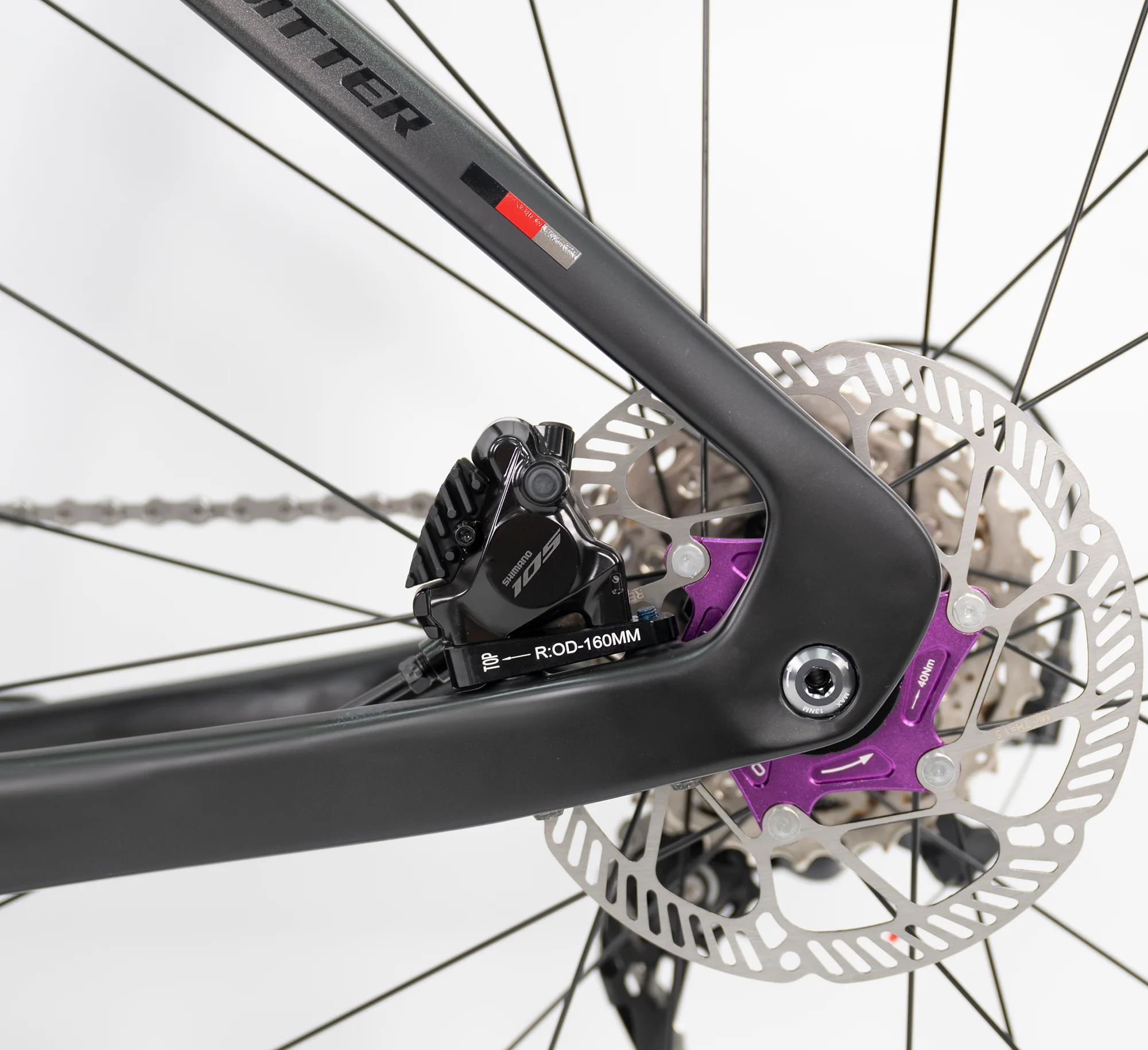

• Brakes: SHIMANO 105 R7070 hydraulic disc, 160/160 mm rotors

---

Wheelset & Tires

• Hubs: RS aluminum alloy & carbon fiber, slotted, 4 sealed bearings, HG freehub, 24H front / 24H rear, disc & thru-axle F12×100 / R12×142

• Rims: RS high modulus Carbon Fiber Wave, W28×H50 mm, 700C

• Spokes: SHUNJIU flat 14G

• Tires: RS foldable 700×28C with reflective edges

---

Braking System

• Hydraulic Disc Brakes: 160 mm front / 160 mm rear, system varies by drivetrain variant

---

Additional Components

• Saddle: Lightweight and comfortable racing saddle

• Pedals: Lightweight & skid-resistant

• Cables: JAGWIRE performance cables

---

Included Accessories

• Standard safety reflectors (handlebar, seat post, front wheel, rear wheel)

• PC bottle cage + tools

• Manual + warranty card
