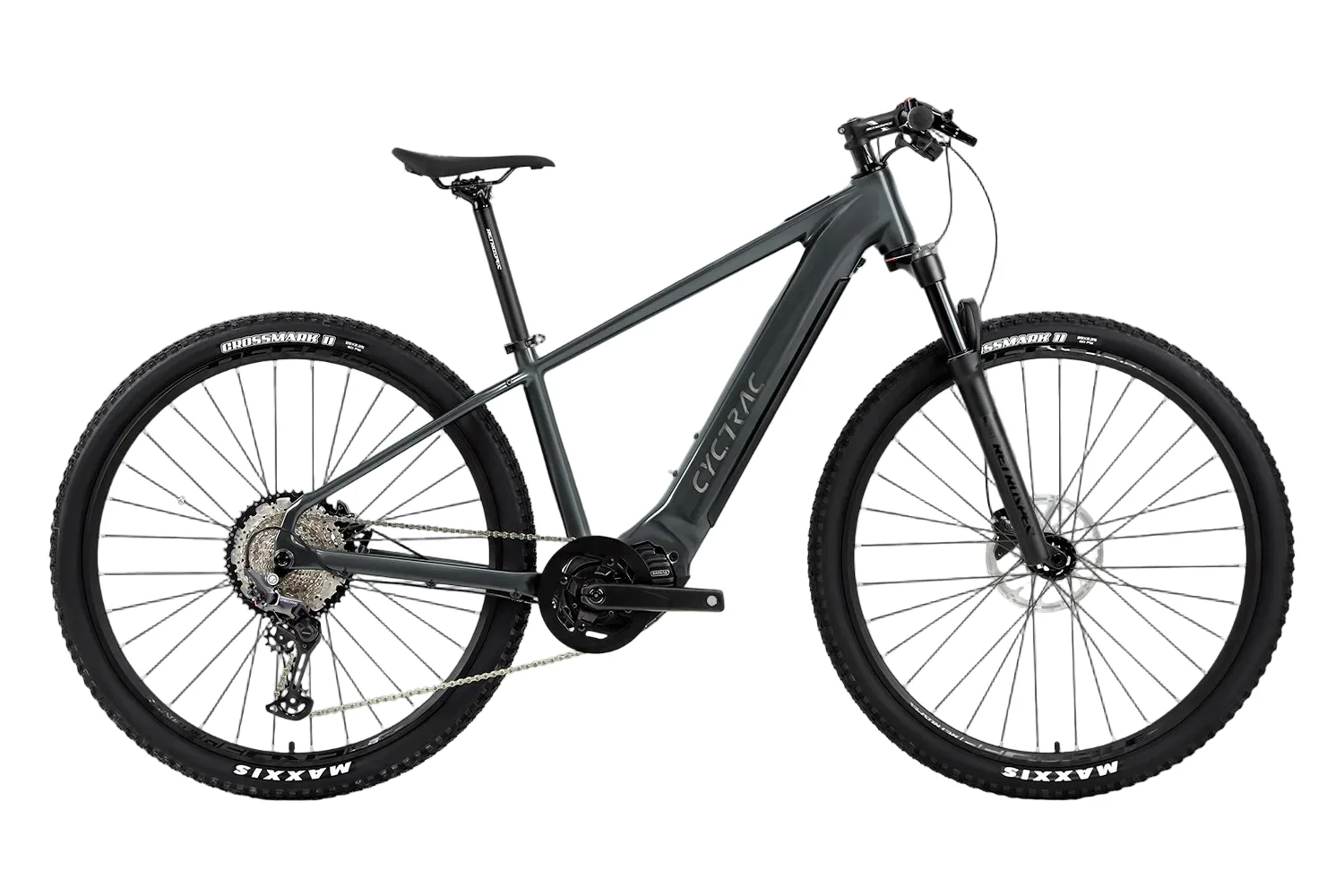

EM5 - 2RD - Cyctrac Alloy Electric Mountain Bike
Key Components
|
Specification
|
Detail
|
|
Bike Model
|
EM5 - 2rd
|
|
Frame Size
|
29(27.5)Ć14" / 16" / 18"
|
|
Bike Color
|
Black / DarkGray / DarkGreen
|
|
Net Weight
|
Varies from 22.3 KG to 22.9 KG (depending on configuration)
|
|
Max Load
|
130 KG
|
Frame & Structure
ā¢Frame: CYCTRAC-EM5, Alu alloy AL7005, Flat weld & Smooth, Inner cables, Thru-axle 12*148 Boost, UDH tail hook
ā¢Fork: RS, MgAl alloy, Air, Remote, Thru-axle 15*110 (or ROCKSHOX-JUDYS in top variant)
ā¢Head Sets: Alu alloy CNC with sealed Bearings 52*52mm
ā¢Handelbar Sets: RS, Alu alloy, Matte, Handlebar 31.8Ć720, Stem 80mm, Seat post 31.6Ć350mm, Clamps 34.9mm QR
Motor System & Battery
|
Specification
|
M510 Variant
|
M560 Variants
|
|
Motor System
|

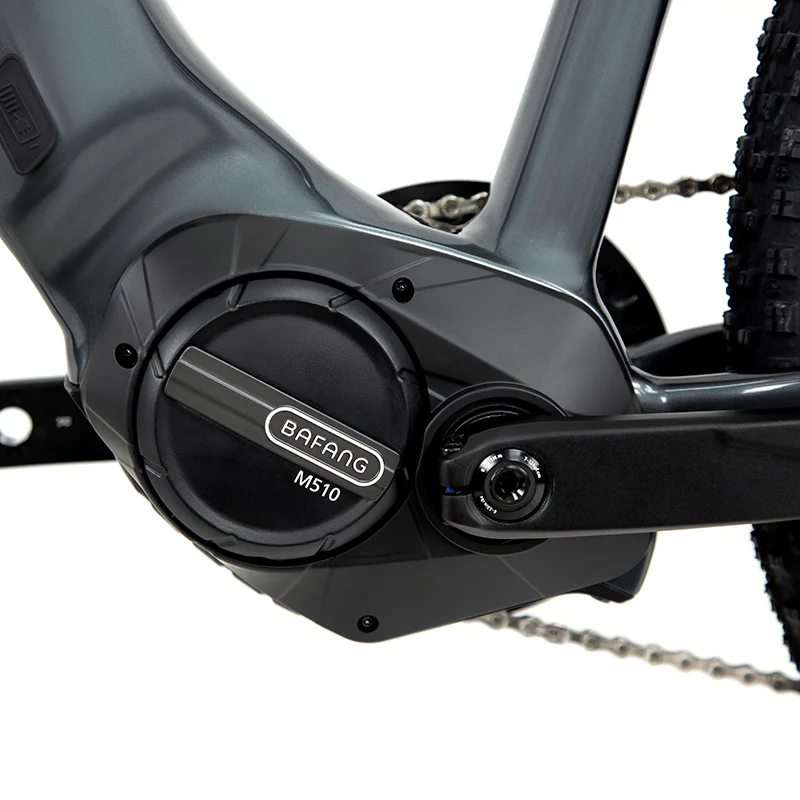

Bafang Mid, M510, 36V250W (48V250W)
|
Bafang Mid, M560, 48V500W
|
|
Max Torque
|
95 N.m (Peak 130N.m)
|
130 N.m (Peak 150N.m)
|
|
Battery
|

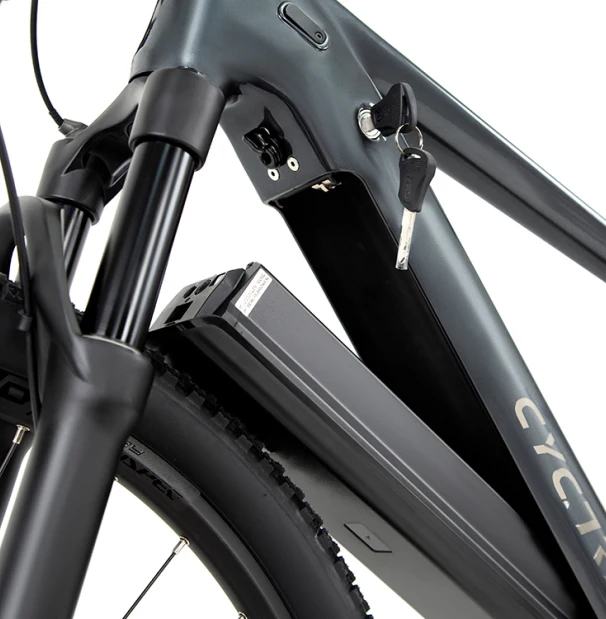

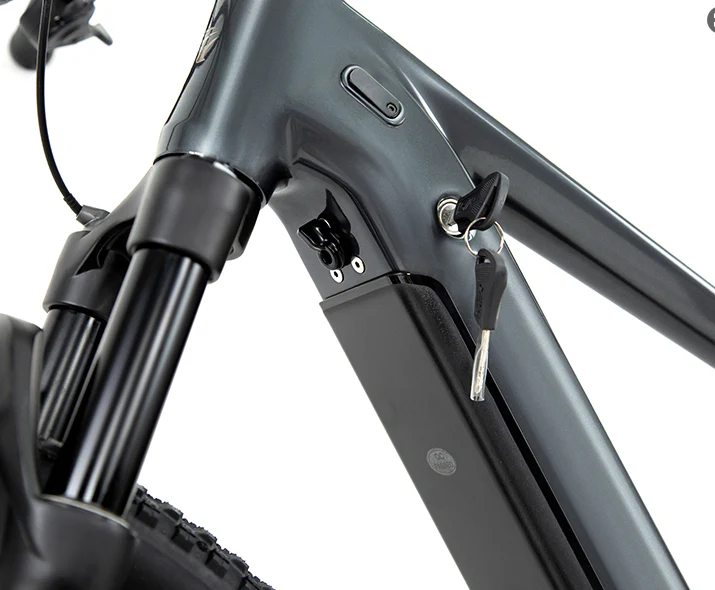

Samsung 21700 Li-ion, 720Wh, 36V20A (48V15A)
|
Samsung 21700 Li-ion, 720Wh, 48V15A
|
|
Endurance (Pedal Assist)
|
Max 130-150 KM
|
Max 120-140 KM
|
|
Charging Time
|
6-7 Hours
|
6-7 Hours
|
|
HMI
|

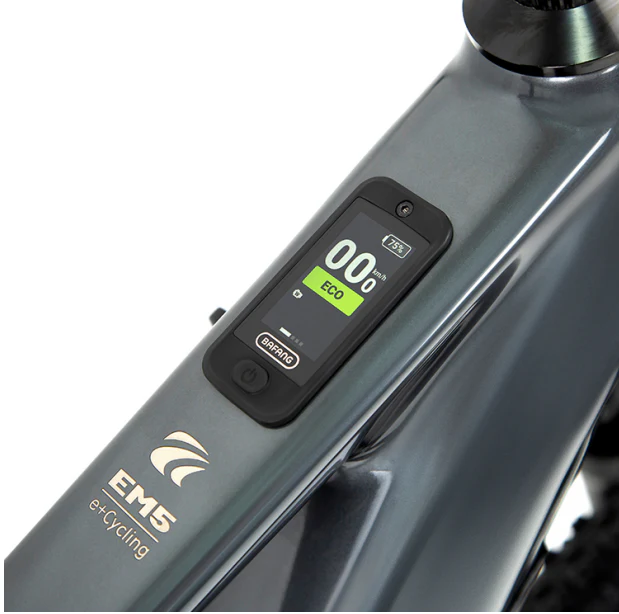

Bafang-C030, LCD digital (Built in Top tube)
|
Bafang-C030, LCD digital (Built in Top tube)
|
|
Waterproof
|
IP X6
|
IP X6
|
|
Pedal Sensor
|
Torque + Speed (cadence)
|
Torque + Speed (cadence)
|
|
Speed Limit
|
25KMh Default (max 45KMh)
|
25KMh Default (max 45KMh)
|
Drivetrain Options (ConfRev)
Variant 1 ā M510 (Entry-Level)
ā¢Derailleur Lever: SHIMANO DEORE/M6100-12S
ā¢Rear Derailleur: SHIMANO DEORE/M6100-12S
ā¢Fork: RS, MgAl alloy, Air, Remote, Thru-axle 15*110
Variant 2 ā M560 (Standard)
ā¢Derailleur Lever: SHIMANO DEORE/M6100-12S
ā¢Rear Derailleur: SHIMANO DEORE/M6100-12S
ā¢Fork: RS, MgAl alloy, Air, Remote, Thru-axle 15*110
Variant 3 ā M560 (Premium Wireless)
ā¢Derailleur Lever: Wheeltop EDS OX-12S wireless
ā¢Rear Derailleur: Wheeltop EDS OX-12S wireless
All variants share:

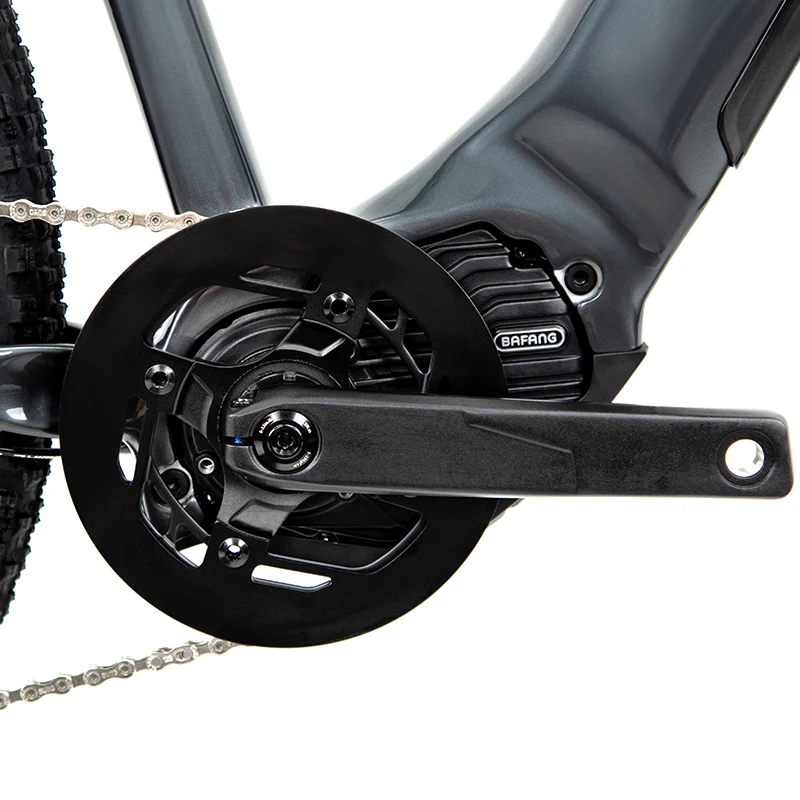

ā¢Cranksets: Matching with Mid Motor, 38T

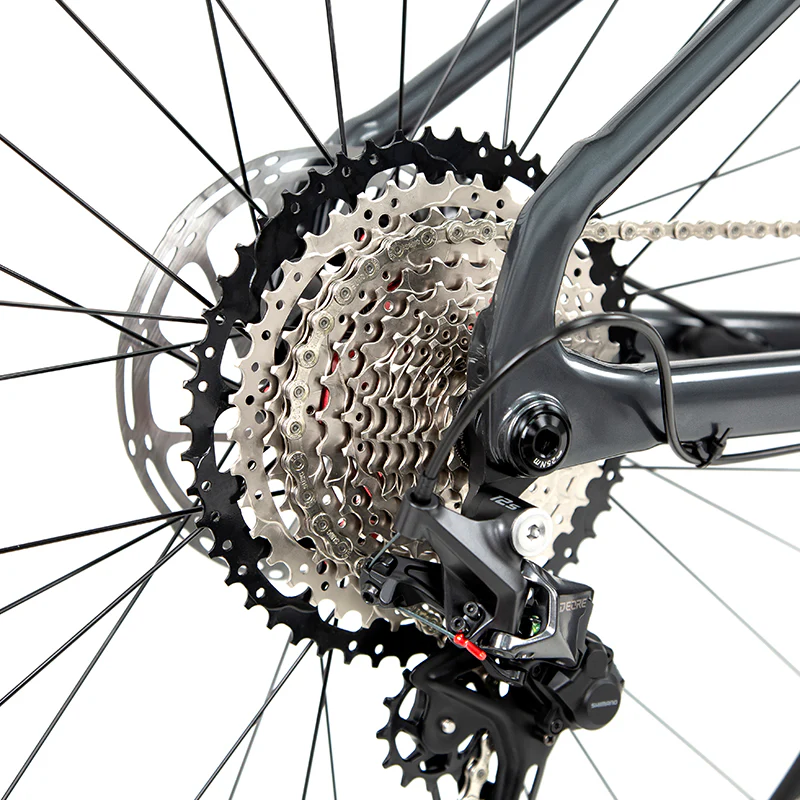

ā¢Cassettes: 12S, 11-50T
ā¢Chain: 12S
Wheelset & Tires
ā¢Hub: RS, Alu alloy, 4-sealed Bearings, Slotted, Disc, 32Holes, Thru-axle F15Ć110_R12Ć148mm Boost
ā¢Rim: RS, Alu alloy with Double-wall & Rivets, W25ĆH21mm
ā¢Spoke: SHUNJIU, Circular 14G
ā¢Tire: 29/27.5Ć2.25"
Braking System

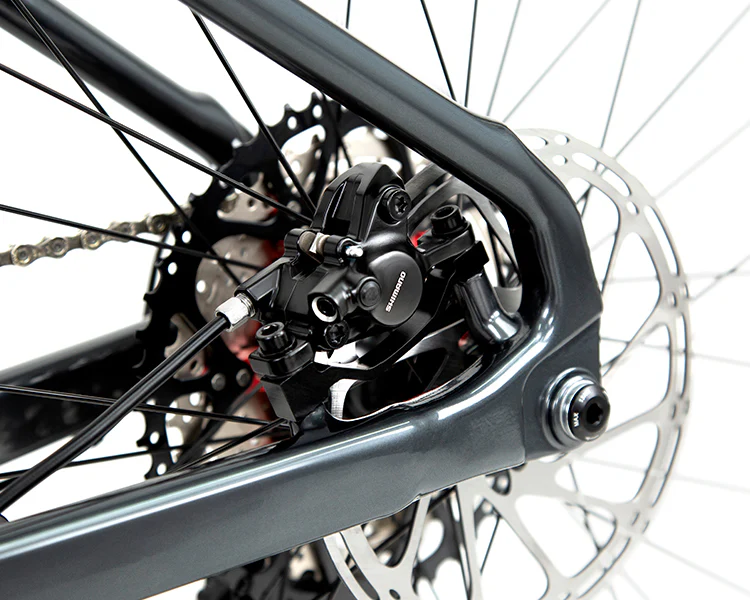

ā¢Brake: SHIMANO MT200 hydraulic disc brake, 180/180mm (Standard on all variants)
Additional Components
ā¢Grips: Circular 22.2Ć120mm, PU leather & locking Ring
ā¢Saddle: RS, Comfortable and Thickened for MTB
ā¢Pedals: RS, Alu alloy CNC with Bearings for MTB
Select Color
Select Bicycle features
Select Configurations
From $457.50
Original: $1,525.00
-70%EM5 - 2RD - Cyctrac Alloy Electric Mountain Bikeā
$1,525.00
$457.50
