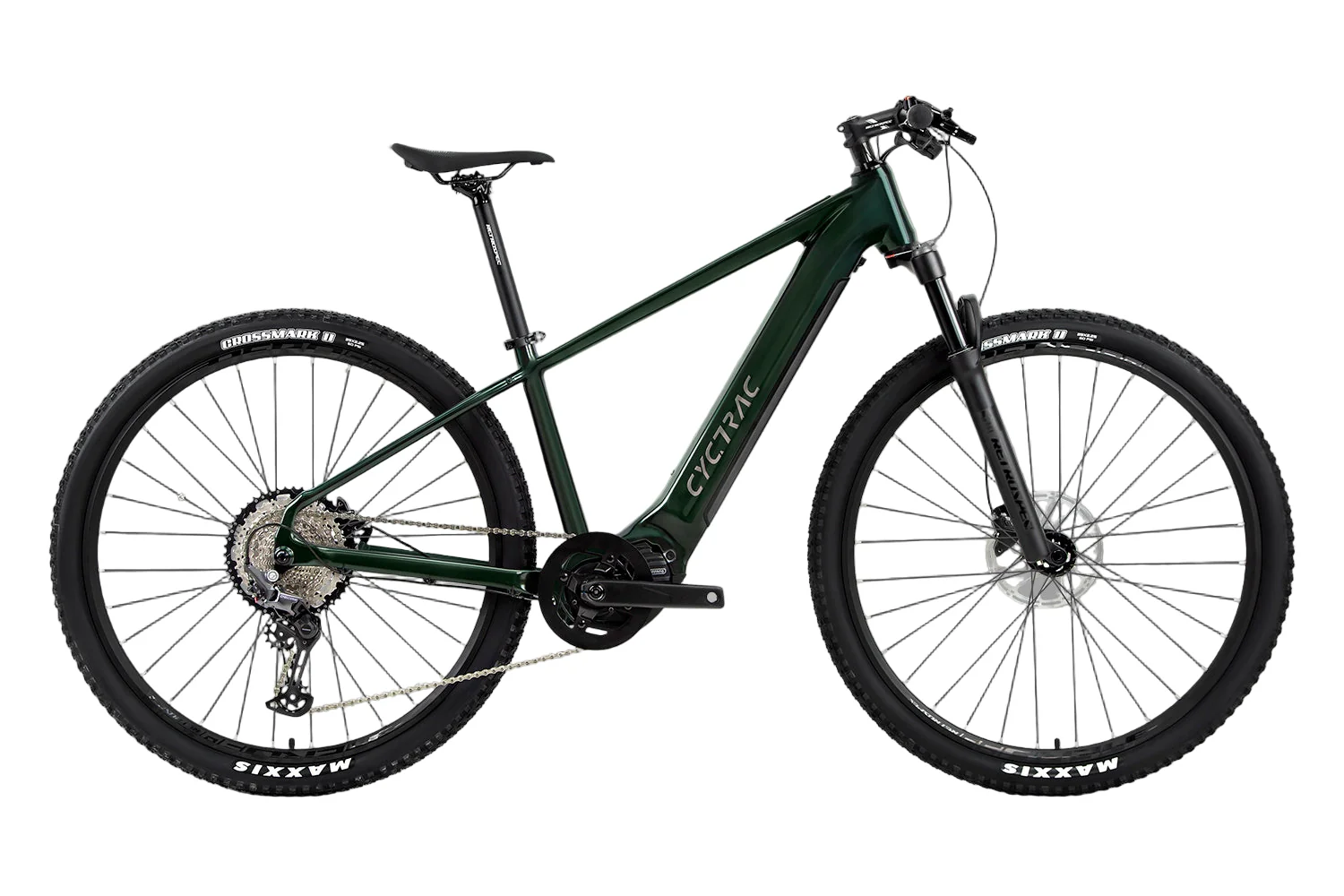

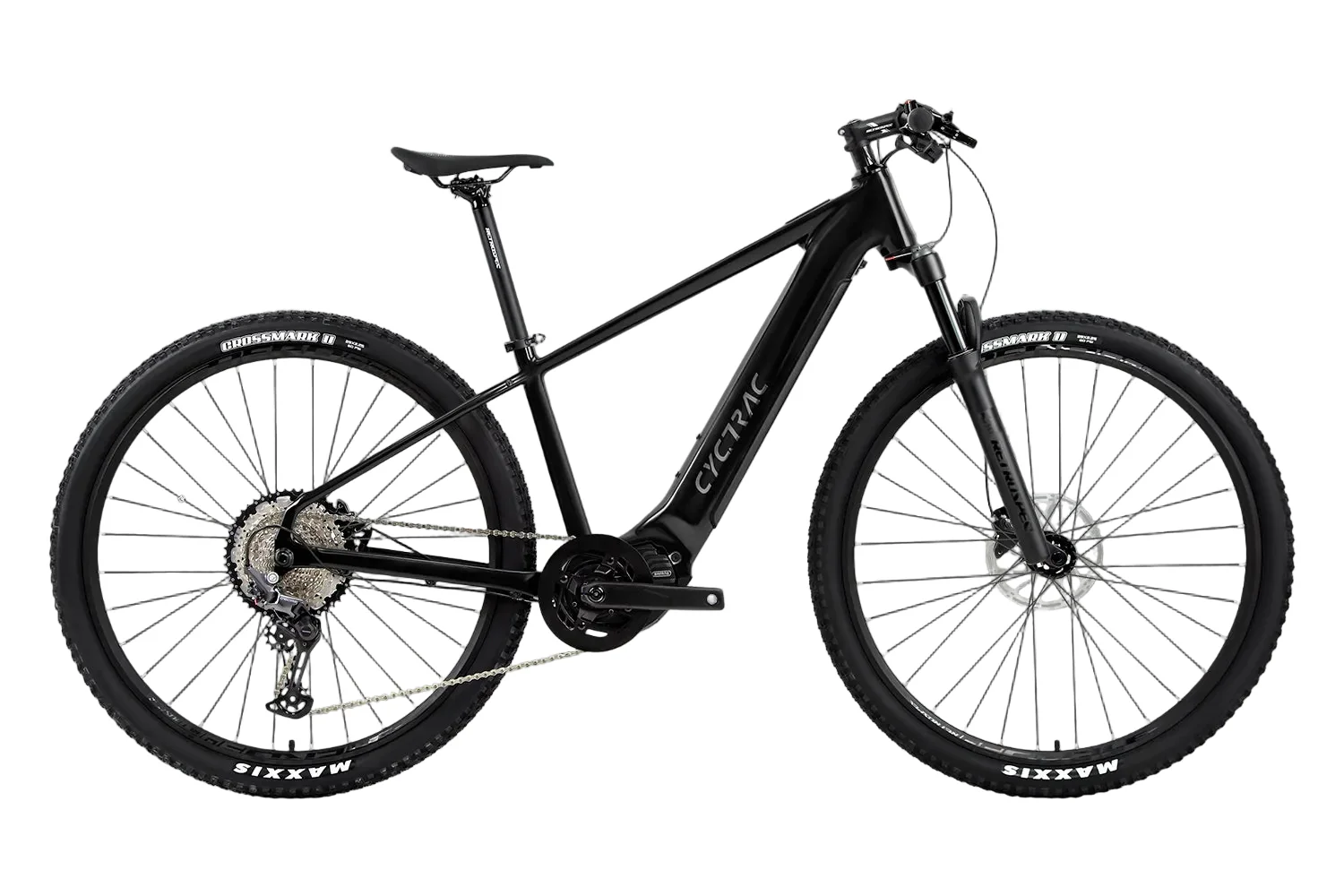

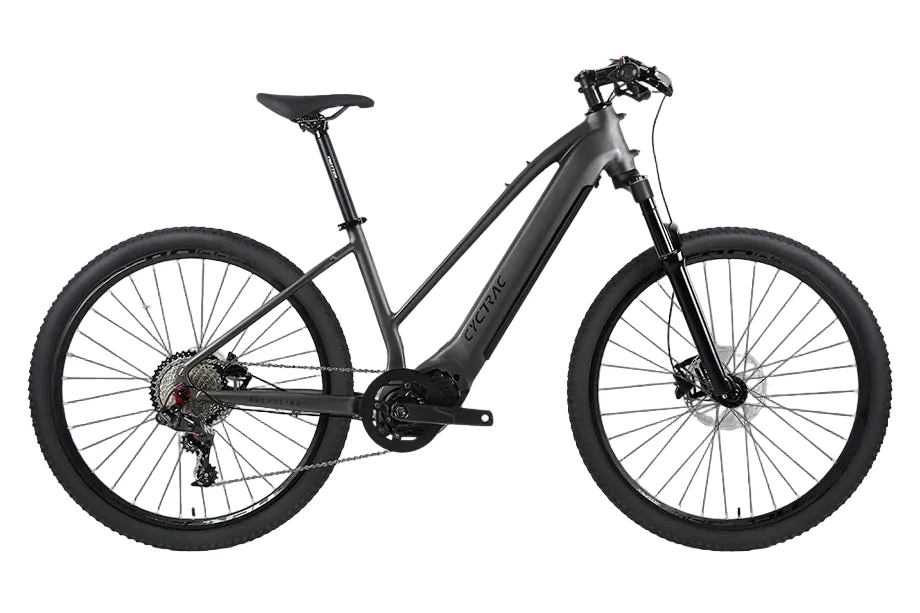

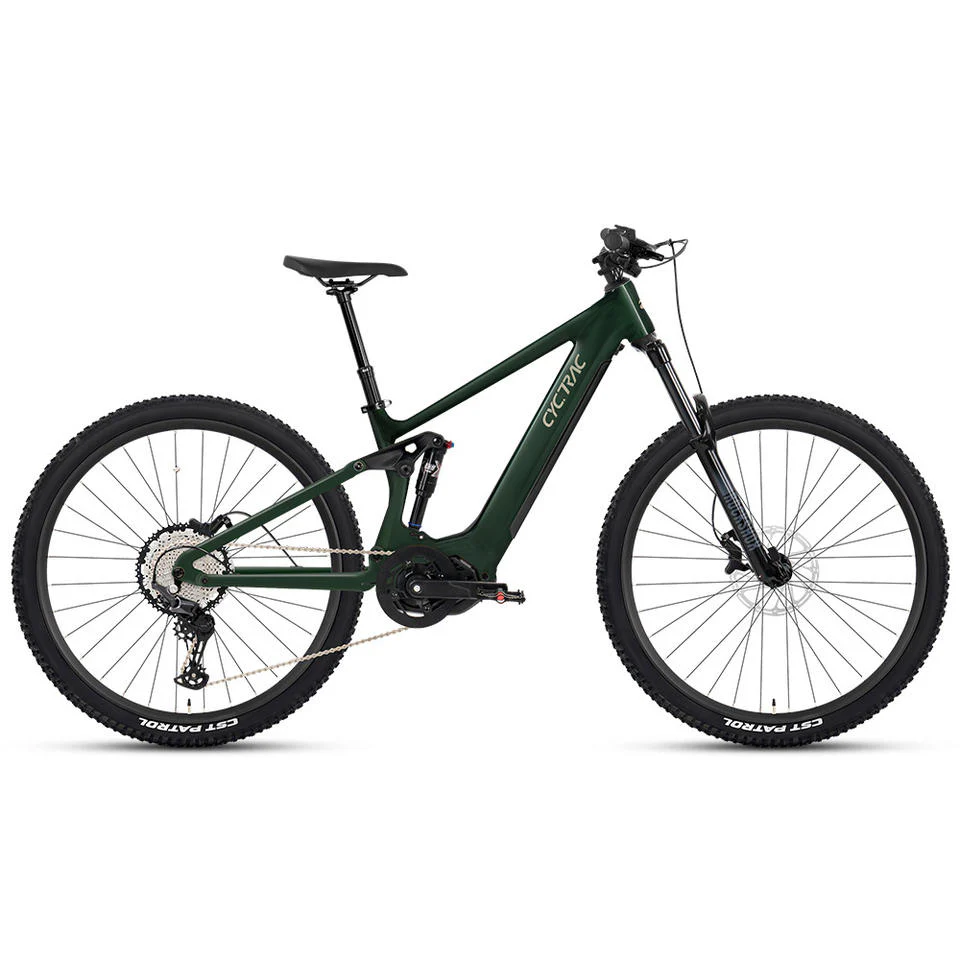

EC1 - Cyctrac Electric Mountain Bikes

Key Components

EC1 (SP)ConfRev Options

• RS10S + M560 / 500W

• M4100/10S + M560 / 500W

• M6100/12S + M560 / 500W

Frame & Structure

• Frame: CYCTRAC EC1, Alu alloy AL6061-T6, Flat weld & Smooth, Inner cables

• Frame Size: 27.5×16"

• Bike Color: MatteBlack / MatteDarkGray / CementGray / DarkGreen

• Net Weight:

  • 22.5KG (RS10S / M4100)

  • 22.7KG (M6100 12S)

• Max Load: 160 KG

• Fork: RS, Alu alloy, Coil suspension, Manual-lockout

• Head Sets: Inner-cables routing, Sealed bearings 52×52mm

• Handlebar Sets: RS, Alu alloy, Matte, Handlebar 31.8×720, Stem 60, Seat post 31.6×350, Clamps 34.9mm QR

Motor System & Battery

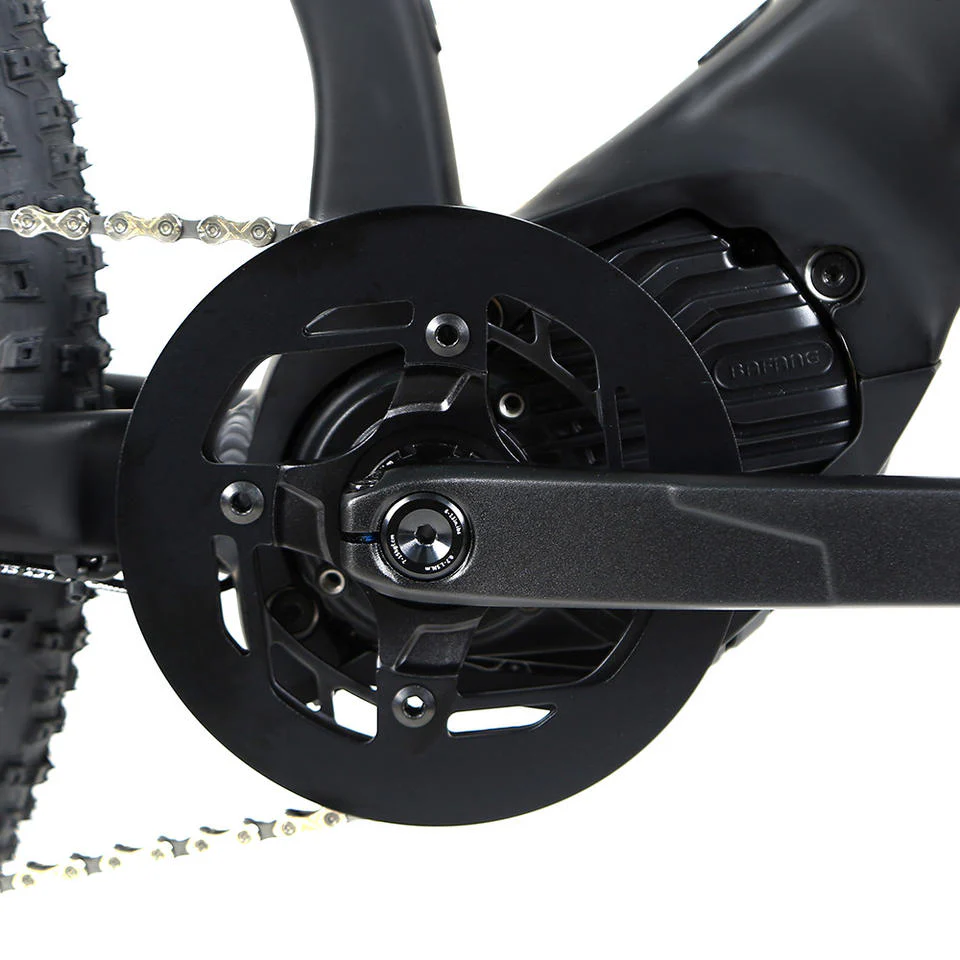

• Motor System: Bafang Mid, M560, 48V 500W

• Max Torque: 140 Nm

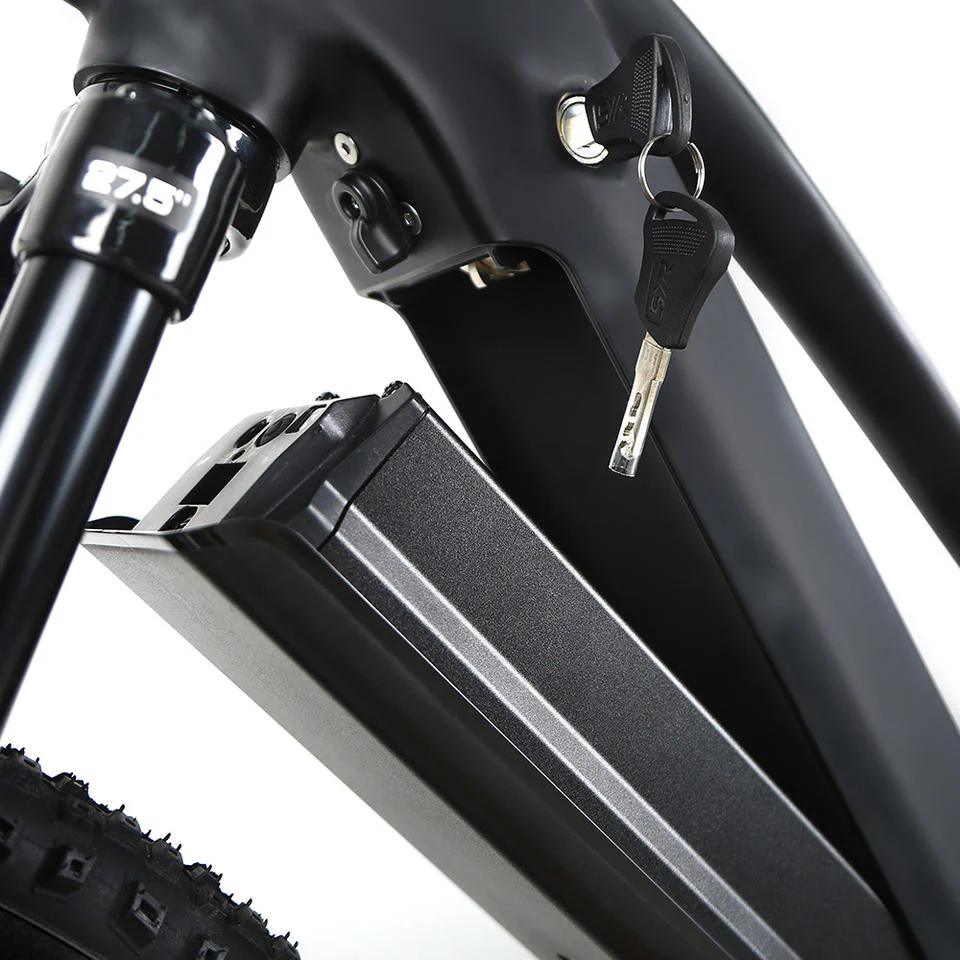

• Battery: Samsung 21700 Li-ion, 720Wh, 48V15A

• Endurance (Pedal Assist): Max 120–140KM

• Speed Limit: 25KMh Default (max 45KMh)

• Pedal Sensor: Torque + Cadence, Throttle available

• Charging Time: 5–6 Hours

• Charger: 3A, DC2.1

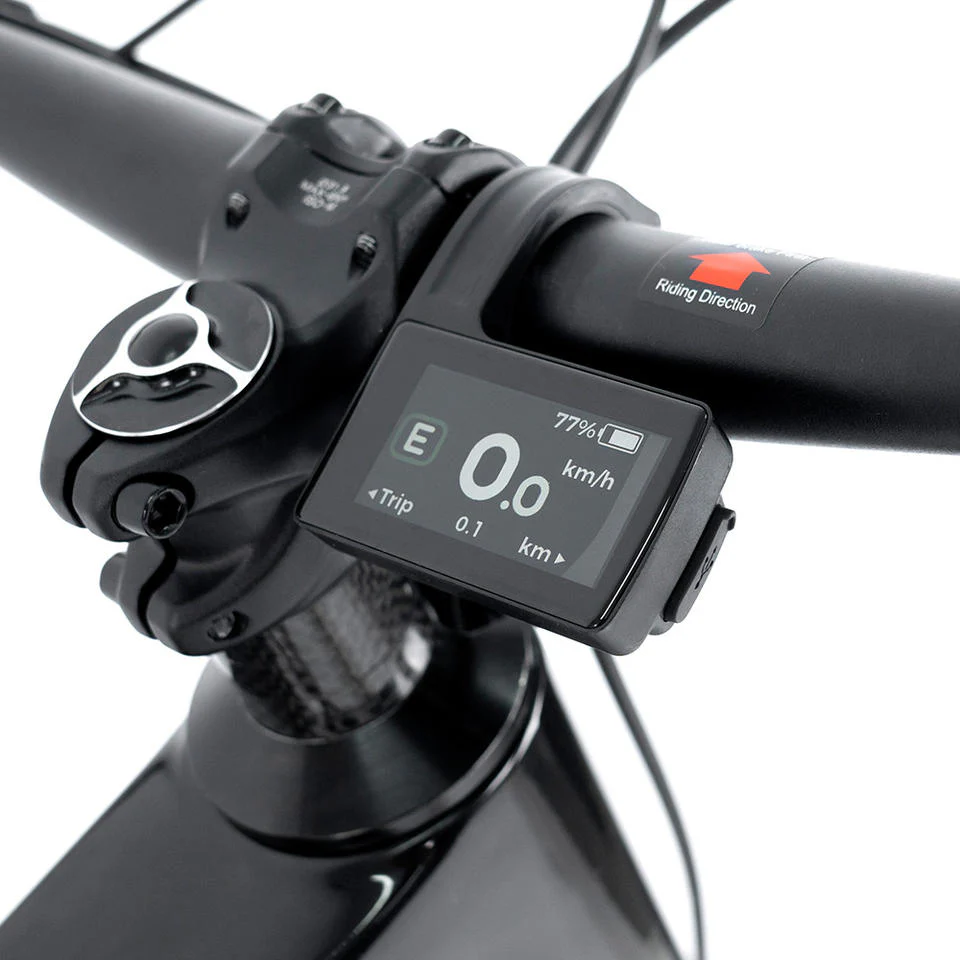

• HMI: CYC-C101, LCD digital, USB/Type-C

• Waterproof: IP X6

Drivetrain Options

Variant 1 – RS10S + M560 (10-Speed)

• Derailleur Lever: RS (LTWOO) V5010-10S

• Rear Derailleur: RS (LTWOO) V5010-10S

• Cranksets: Matching with Mid Motor, 38T

• Cassette: SUNSHINE-10S, 11-36T

• Chain: SUMC-10S

Variant 2 – Shimano Deore M4100 10S + M560

• Derailleur Lever: SHIMANO DEORE M4100-10S

• Rear Derailleur: SHIMANO DEORE M4120-10S

• Cranksets: Matching with Mid Motor, 38T

• Cassette: SUNSHINE-10S, 11-36T

• Chain: SUMC-10S

Variant 3 – Shimano Deore M6100 12S + M560

• Derailleur Lever: SHIMANO DEORE M6100-12S

• Rear Derailleur: SHIMANO DEORE M6100-12S

• Cranksets: Matching with Mid Motor, 38T

• Cassette: SUNSHINE-12S, 11-50T

• Chain: SUMC-12S

Wheelset & Tires

• Hub: RS Alu alloy, 2-sealed Bearings, HG, Disc, 32 Holes

• Rim: RS, Alu alloy with Double-wall & Rivets, W30×H21mm

• Spoke: SHUNJIU, Circular 14G

• Tire: CST, 27.5×2.4"

Braking System

• Brake: SHIMANO MT200 hydraulic disc brake, 180/180mm

Additional Components

• Grips: Circular 22.2×120mm, PU leather & locking Ring

• Saddle: RS, Comfortable and Thickened for MTB

• Pedals: RS, Alu alloy & Skid resistant for MTB
