EM10 - Cyctrac Electric Mountain Bike
Key Components
|
Specification
|
Detail
|
|
Bike Model
|
EM10
|
|
Frame Size
|
29(27.5)×16" / 18"
|
|
Bike Color
|
DarkGray&Black / DarkGreen&Black / Red&Black / Holographic&Black
|
|
Net Weight
|
Varies from 23.6 KG to 24.4 KG (depending on configuration)
|
|
Max Load
|
150 KG
|
Frame & Structure
•Frame: CYCTRAC, EM10, AM, High modulus Carbon fiber, Inner cables, Thru-axle 12*148 Boost, 145mm Travel, DNM air rear shox 200*55
•Fork: RS, MgAl alloy, Air, Manual, 150, Thru-axle 15*110 (or ROCKSHOX-35S in high variants)
•Head Sets: Inner-Cables routing, Sealed bearings 52*52mm
•Handelbar Sets: RS, Alu alloy, Matte, Handlebar 31.8×720, Stem 45, Clamps 34.9mm, Seat post RS Height-adjustable&Remote 31.6*100/125mm Travel
Motor System & Battery
|
Specification
|
Detail
|
|
Motor System
|
Bafang Mid, M560, 48V500W
|
|
Max Torque
|
140 Nm
|
|
Speed Limit
|
25KMh Default (max 45KMh)
|
|
Pedal Sensor
|
Torque+Cadence, Throttle available
|
|
Battery
|
Samsung 21700 Li-ion, 720Wh, 48V15A
|
|
Endurance (Pedal Assist)
|
Max 120-140 KM
|
|
Full charge time
|
5-6 Hours
|
|
Charger
|
3A, DC2.1
|
|
HMI
|
Bafang-C245, LCD digital, USB/Type-C, Bluetooth/BafangGo App
|
|
Waterproof
|
IP X6
|
Drivetrain Options (ConfRev)
The EM10 is available in three distinct configurations, all featuring a 12-speed system:
Variant 1 – LOW (Standard Mechanical)

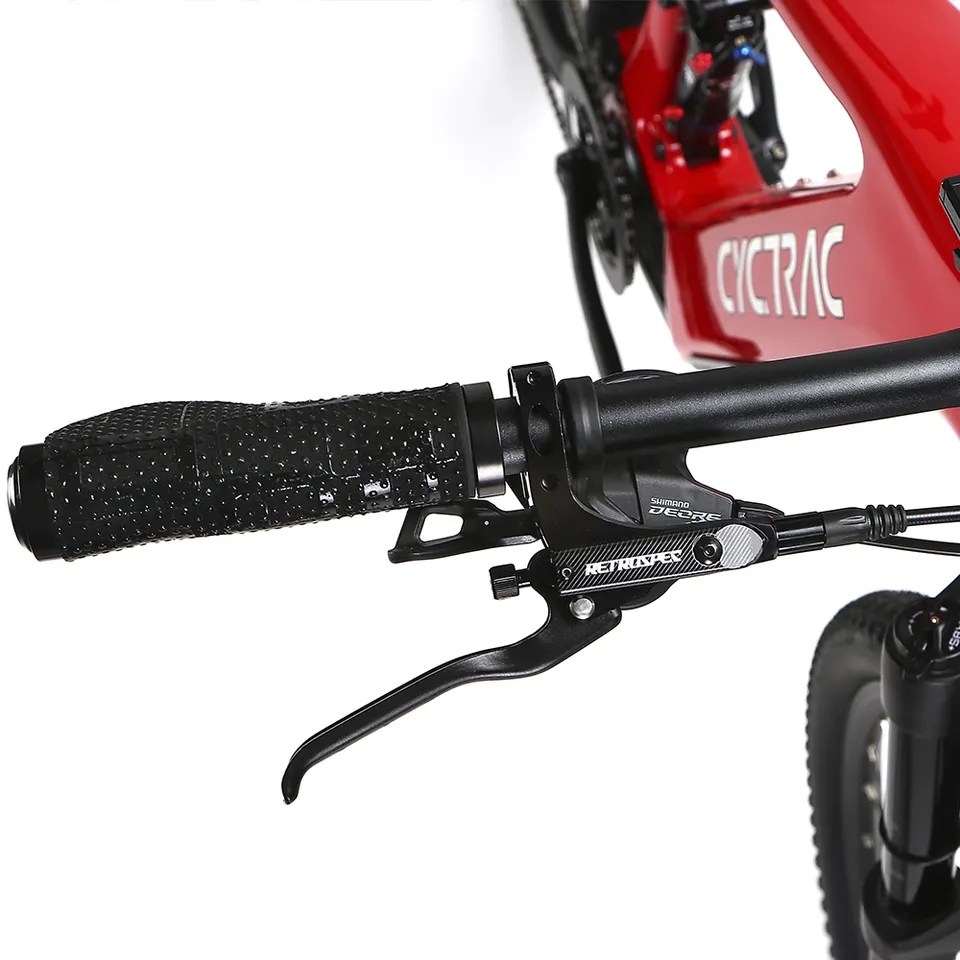

•Derailleur Lever: SHIMANO DEORE/M6100-12S

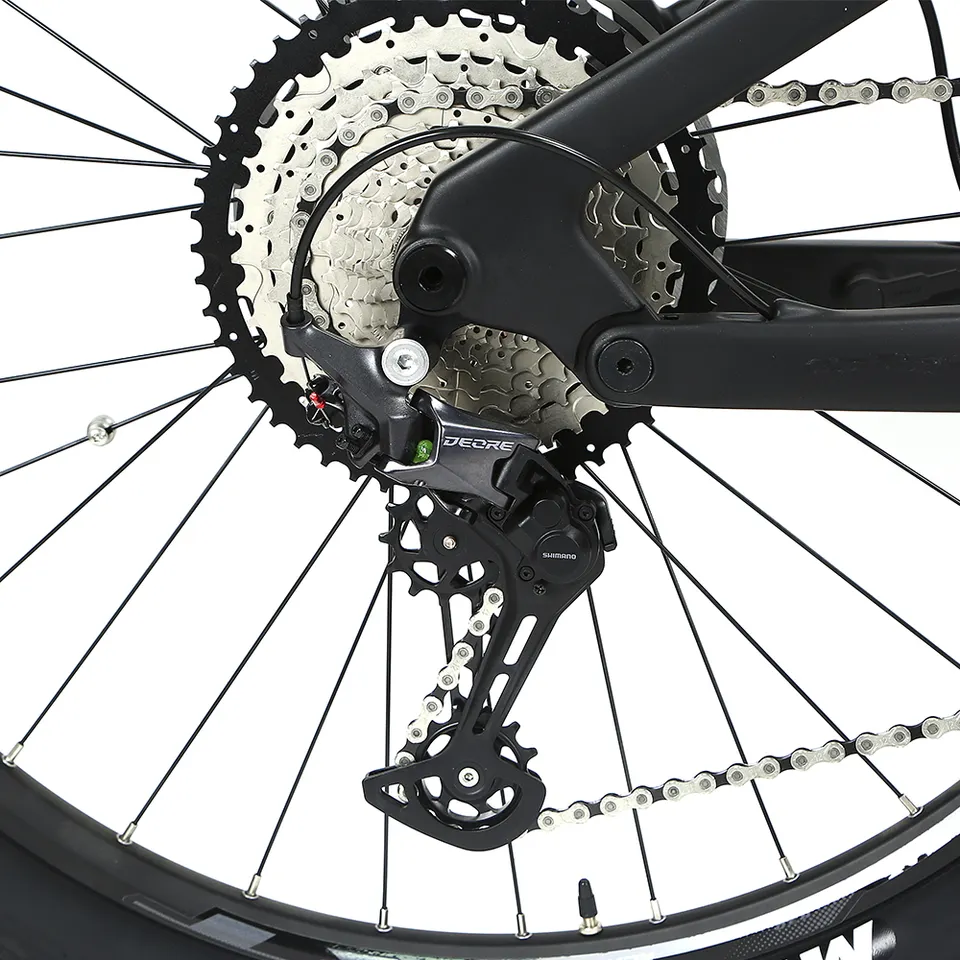

•Rear Derailleur: SHIMANO DEORE/M6100-12S
•Fork: RS, MgAl alloy, Air, Manual, 150, Thru-axle 15*110
Variant 2 – HIGH (Premium Mechanical)
•Derailleur Lever: SHIMANO DEORE/M6100-12S
•Rear Derailleur: SHIMANO DEORE/M6100-12S
Variant 3 – WIRELESS (Electronic Shifting)
•Derailleur Lever: Wheeltop EDS OX-12S wireless
•Rear Derailleur: Wheeltop EDS OX-12S wireless
All variants share:
•Cranksets: Matching with Mid Motor, 38T

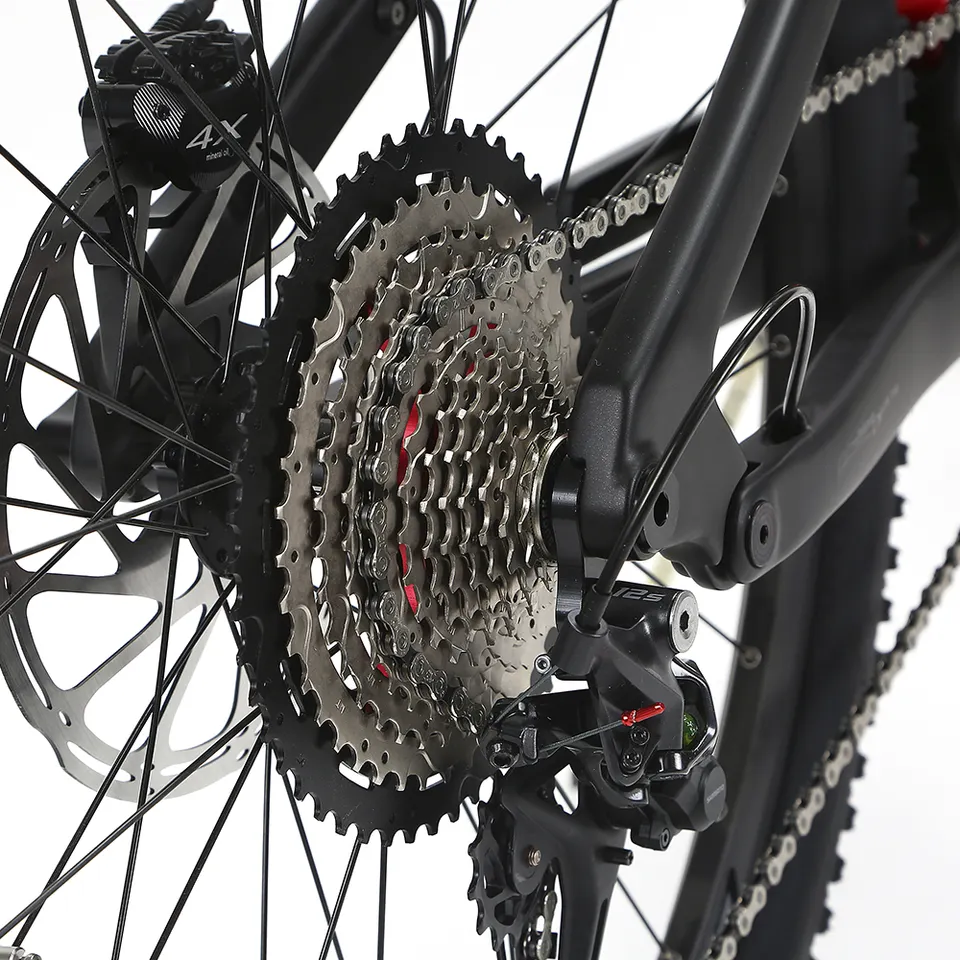

•Cassettes: 12S, 11-50T
•Chain: 12S
Braking System
•Brake: hydraulic disc, 203/203mm, providing superior stopping power and control.
Wheelset & Tires
•Hub: RS, Alu alloy, 4-sealed Bearings, HG, Disc, 32Holes, Thru-axle F15×110_R12×148mm Boost
•Rim: RS, Alu alloy with Double-wall&Rivets, W30×H21mm
•Spoke: Circular 14G
•Tire: 29/27.5×2.4"
Additional Components
•Grips: Circular 22.2×120mm, PU leather&locking Ring
•Saddle: RS, Comfortable and Thickened for MTB
•Pedals: RS, Alu alloy&Skid resistant for MTB
Select Color
Select Bicycle features
Select Configurations
From $670.50
Original: $2,235.00
-70%EM10 - Cyctrac Electric Mountain Bike—
$2,235.00
$670.50
