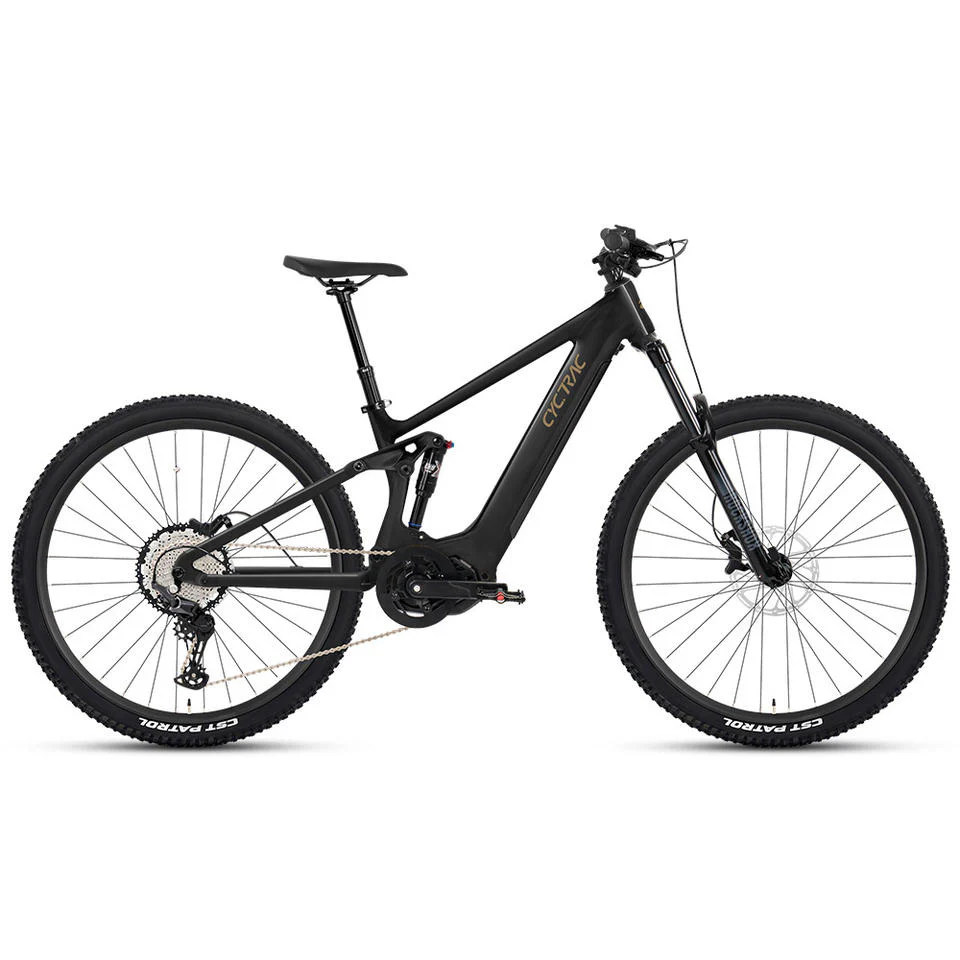

EM6 - 3RD - Cyctrac Electric Mountain Bike
Key Components
|
Specification
|
Detail
|
|
Bike Model
|
EM6 (3rd)
|
|
Frame Size
|
29(27.5)Ć16" / 18"
|
|
Bike Color
|
Silver / Black / DarkGreen
|
|
Net Weight
|
Varies from 25.9 KG to 26.7 KG (depending on configuration)
|
|
Max Load
|
160 KG
|
Frame & Structure
ā¢Frame: CYCTRAC-EM6(3rd), Enduro level, AL6061-T6, Flat weld, Inner cables, Thru-axle 12148 Boost, UDH, 150 & 160mm Travel, DNM air rear shox 20562
ā¢Head Sets: Inner-Cables routing, Sealed bearings 52*52mm
ā¢Handelbar Sets: RS, Alu alloy, Matte, Handlebar 31.8Ć720, Stem 45, Clamps 34.9mm

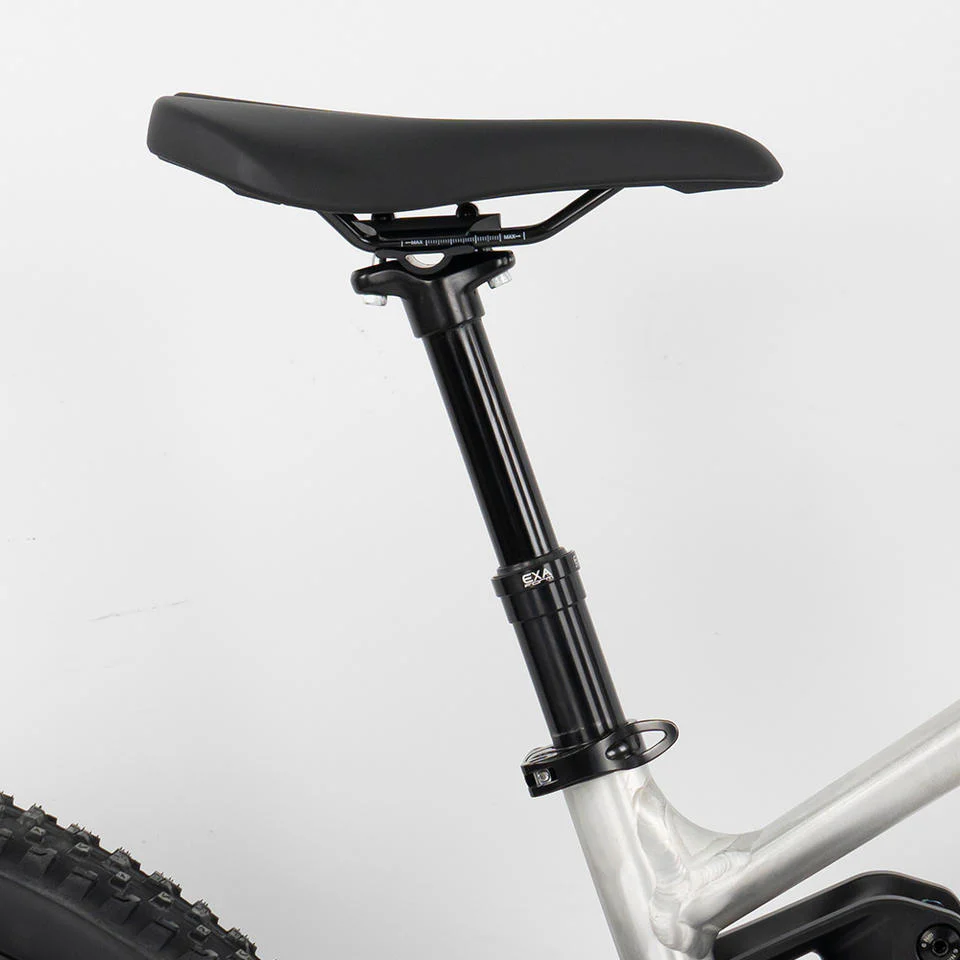

ā¢Seat Post: RS Height-adjustable & Remote 31.6*100/125mm Travel
Motor System & Battery

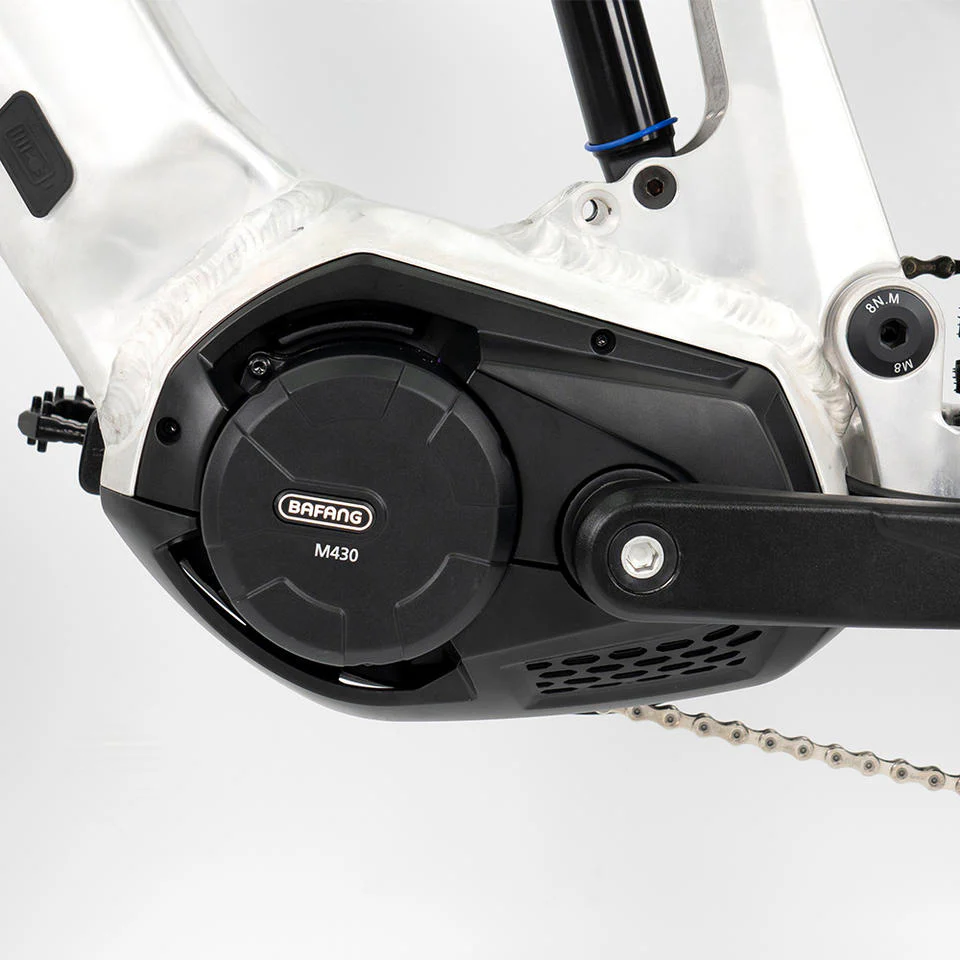

ā¢Motor System: Bafang Mid, M430, 48V500W
ā¢Max Torque: 140 Nm
ā¢Battery: Samsung 21700 Li-ion, 720Wh, 48V15A
ā¢Endurance (Pedal Assist): Max 120-140 KM
ā¢Speed Limit: 25KMh Default (max 45KMh)
ā¢Pedal Sensor: Torque + Cadence, Throttle available
ā¢Full charge time: 5-6 Hours
ā¢Charger: 3A, DC2.1
ā¢HMI: CYC-C101, LCD digital, USB/Type-C
ā¢Waterproof: IP X6
Drivetrain Options (ConfRev)
Variant 1 ā LOW (M6100/12S+M430/500W)
ā¢Fork: RS, MgAl alloy, Air, Manual, 150mm, Thru-axle 15*110
ā¢Derailleur Lever: SHIMANO DEORE/M6100-12S

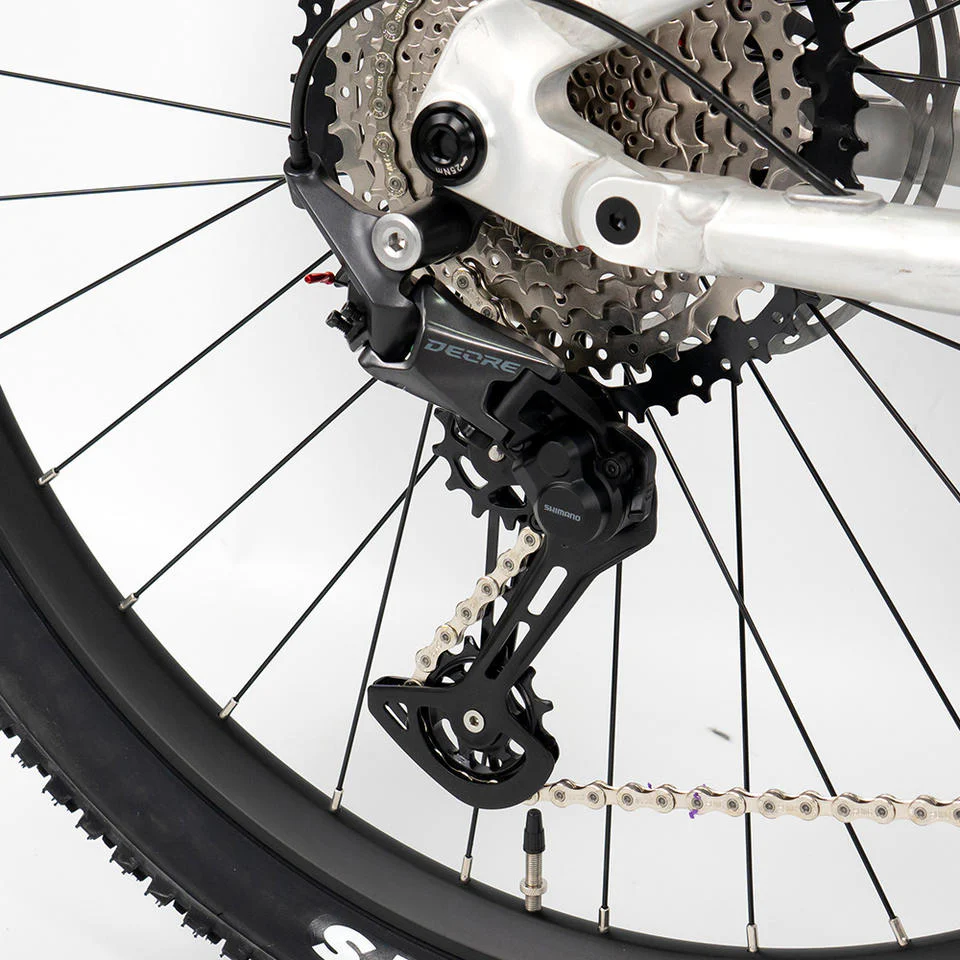

ā¢Rear Derailleur: SHIMANO DEORE/M6100-12S
ā¢Cranksets: Matching with Mid Motor, 38T
ā¢Cassettes: SUNSHINE-12S, 11-50T
ā¢Chain: SUMC-12S
Variant 2 ā HIGH (M6100/12S+M430/500W)
ā¢Derailleur Lever: SHIMANO DEORE/M6100-12S
ā¢Rear Derailleur: SHIMANO DEORE/M6100-12S
ā¢Cranksets: Matching with Mid Motor, 38T
ā¢Cassettes: SUNSHINE-12S, 11-50T
ā¢Chain: SUMC-12S
Variant 3 ā HIGH (Wheeltop 12S+M430/500W)
ā¢Derailleur Lever: Wheeltop EDS OX-12S wireless
ā¢Rear Derailleur: Wheeltop EDS OX-12S wireless
ā¢Cranksets: Matching with Mid Motor, 38T
ā¢Cassettes: SUNSHINE-12S, 11-50T
ā¢Chain: SUMC-12S
Wheelset & Tires
ā¢Hub: RS, Alu alloy, 4-sealed Bearings, HG, Disc, 32Holes, Thru-axle F15Ć110_R12Ć148mm Boost
ā¢Rim: RS, Alu alloy with Double-wall & Rivets, W30ĆH21mm
ā¢Spoke: SHUNJIU, Circular 14G
ā¢Tire: CST, 29/27.5Ć2.4"
Braking System
ā¢Brake: RS, Alu alloy, 4-piston hydraulic disc, 203/203mm (Standard on all variants)
Additional Components
ā¢Grips: Circular 22.2Ć120mm, PU leather & locking Ring
ā¢Saddle: RS, Comfortable and Thickened for MTB
ā¢Pedals: RS, Alu alloy & Skid resistant for MTB
Select Color
Select Bicycle features
Select Configurations
From $550.50
Original: $1,835.00
-70%EM6 - 3RD - Cyctrac Electric Mountain Bikeā
$1,835.00
$550.50
Description
Key Components
|
Specification
|
Detail
|
|
Bike Model
|
EM6 (3rd)
|
|
Frame Size
|
29(27.5)Ć16" / 18"
|
|
Bike Color
|
Silver / Black / DarkGreen
|
|
Net Weight
|
Varies from 25.9 KG to 26.7 KG (depending on configuration)
|
|
Max Load
|
160 KG
|
Frame & Structure
ā¢Frame: CYCTRAC-EM6(3rd), Enduro level, AL6061-T6, Flat weld, Inner cables, Thru-axle 12148 Boost, UDH, 150 & 160mm Travel, DNM air rear shox 20562
ā¢Head Sets: Inner-Cables routing, Sealed bearings 52*52mm
ā¢Handelbar Sets: RS, Alu alloy, Matte, Handlebar 31.8Ć720, Stem 45, Clamps 34.9mm
ā¢Seat Post: RS Height-adjustable & Remote 31.6*100/125mm Travel
Motor System & Battery
ā¢Motor System: Bafang Mid, M430, 48V500W
ā¢Max Torque: 140 Nm
ā¢Battery: Samsung 21700 Li-ion, 720Wh, 48V15A
ā¢Endurance (Pedal Assist): Max 120-140 KM
ā¢Speed Limit: 25KMh Default (max 45KMh)
ā¢Pedal Sensor: Torque + Cadence, Throttle available
ā¢Full charge time: 5-6 Hours
ā¢Charger: 3A, DC2.1
ā¢HMI: CYC-C101, LCD digital, USB/Type-C
ā¢Waterproof: IP X6
Drivetrain Options (ConfRev)
Variant 1 ā LOW (M6100/12S+M430/500W)
ā¢Fork: RS, MgAl alloy, Air, Manual, 150mm, Thru-axle 15*110
ā¢Derailleur Lever: SHIMANO DEORE/M6100-12S
ā¢Rear Derailleur: SHIMANO DEORE/M6100-12S
ā¢Cranksets: Matching with Mid Motor, 38T
ā¢Cassettes: SUNSHINE-12S, 11-50T
ā¢Chain: SUMC-12S
Variant 2 ā HIGH (M6100/12S+M430/500W)
ā¢Derailleur Lever: SHIMANO DEORE/M6100-12S
ā¢Rear Derailleur: SHIMANO DEORE/M6100-12S
ā¢Cranksets: Matching with Mid Motor, 38T
ā¢Cassettes: SUNSHINE-12S, 11-50T
ā¢Chain: SUMC-12S
Variant 3 ā HIGH (Wheeltop 12S+M430/500W)
ā¢Derailleur Lever: Wheeltop EDS OX-12S wireless
ā¢Rear Derailleur: Wheeltop EDS OX-12S wireless
ā¢Cranksets: Matching with Mid Motor, 38T
ā¢Cassettes: SUNSHINE-12S, 11-50T
ā¢Chain: SUMC-12S
Wheelset & Tires
ā¢Hub: RS, Alu alloy, 4-sealed Bearings, HG, Disc, 32Holes, Thru-axle F15Ć110_R12Ć148mm Boost
ā¢Rim: RS, Alu alloy with Double-wall & Rivets, W30ĆH21mm
ā¢Spoke: SHUNJIU, Circular 14G
ā¢Tire: CST, 29/27.5Ć2.4"
Braking System
ā¢Brake: RS, Alu alloy, 4-piston hydraulic disc, 203/203mm (Standard on all variants)
Additional Components
ā¢Grips: Circular 22.2Ć120mm, PU leather & locking Ring
ā¢Saddle: RS, Comfortable and Thickened for MTB
ā¢Pedals: RS, Alu alloy & Skid resistant for MTB
